Kyocera ECOSYS M3040dn

2NM/2NX/2NY/2NZ/2P0/2P6-1
1-5-59

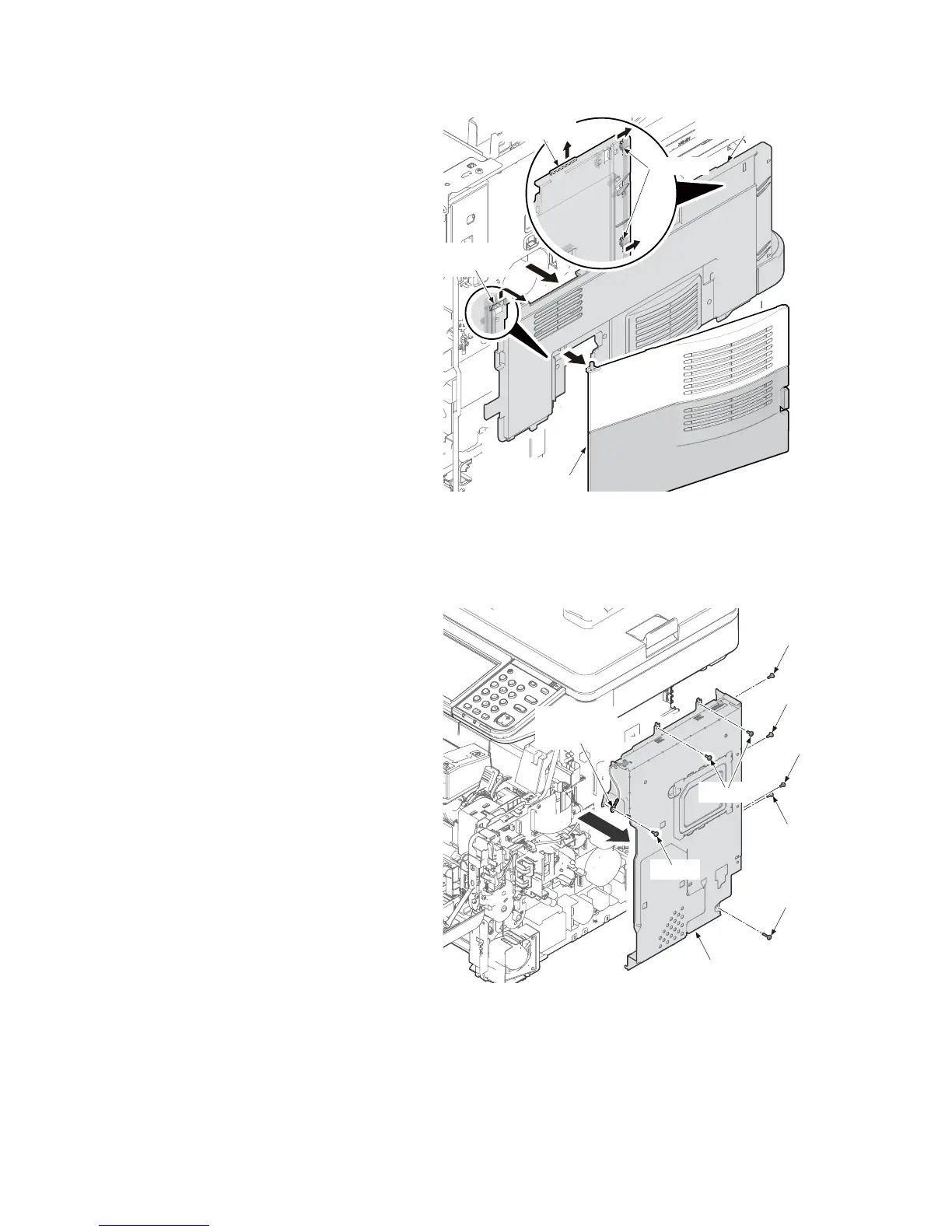

30. Release the hook A by sliding the left
middle cover upward.
31. Release the hook B and hook C and
then remove the left middle cover and
the waste toner box cover.
Figure 1-5-99
32. Remove eight screws and grounding
terminal.
33. Remove the controller box.
Figure 1-5-100
Left middle cover
Hook A
Waste toner
box cover
Hooks B
Hook C
Screw
Screw
Screw
Screw
Screw
Screw
Screws
Controller box
Grounding
terminal
