2NM/2NX/2NY/2NZ/2P0/2P6

2-2-26

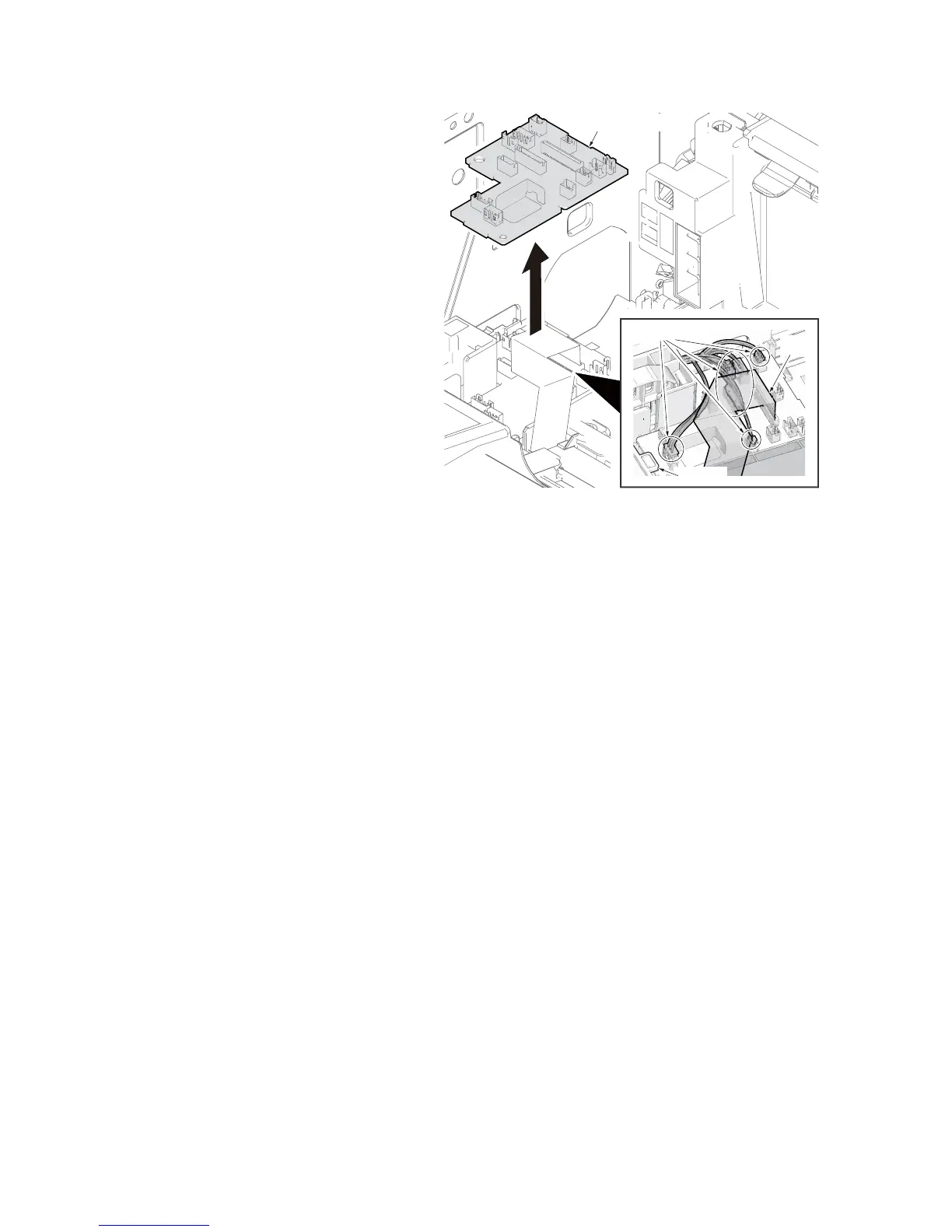

25. Remove the connectors and FFC and

then remove the connect left PWB.

26. Check or replace the connect left PWB

and refit all the removed parts.

Figure 2-2-27

Connectors

Hook

FFC

Connect left PWB
