2-2-33

11. Remove all connectors and FFC from

the connect right PWB.

12. Remove three screws and connect right

PWB from the main unit.

13. Check or replace the connect right

PWB and refit all the removed parts.

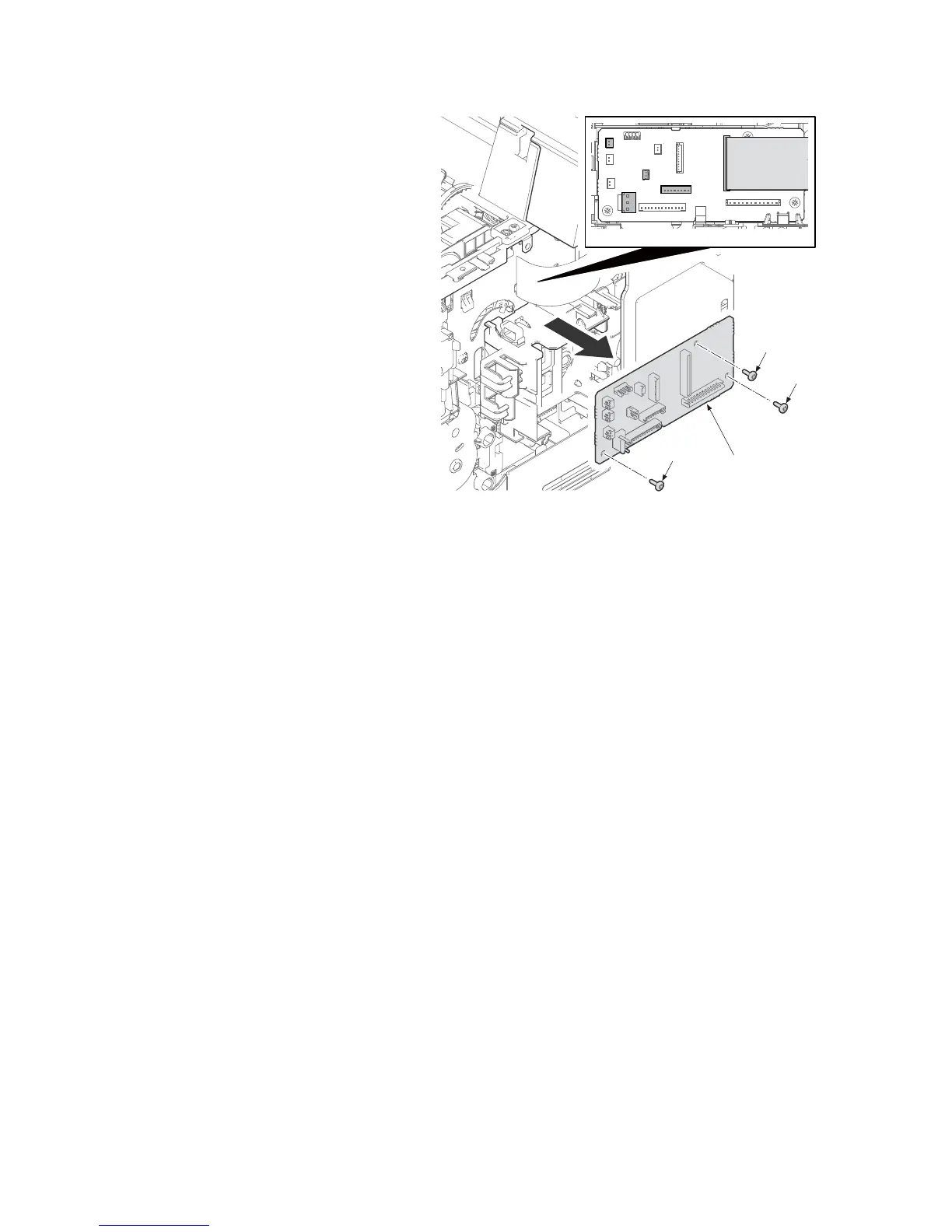

Figure 2-2-34

Screw

Connectors

Connect rIght

PWB
