34. Remove the grounding wire by remov-
ing the screw.
35. Remove the connector from the power
source PWB.
36. Remove three screws and then remove
the power source PWB assembly.

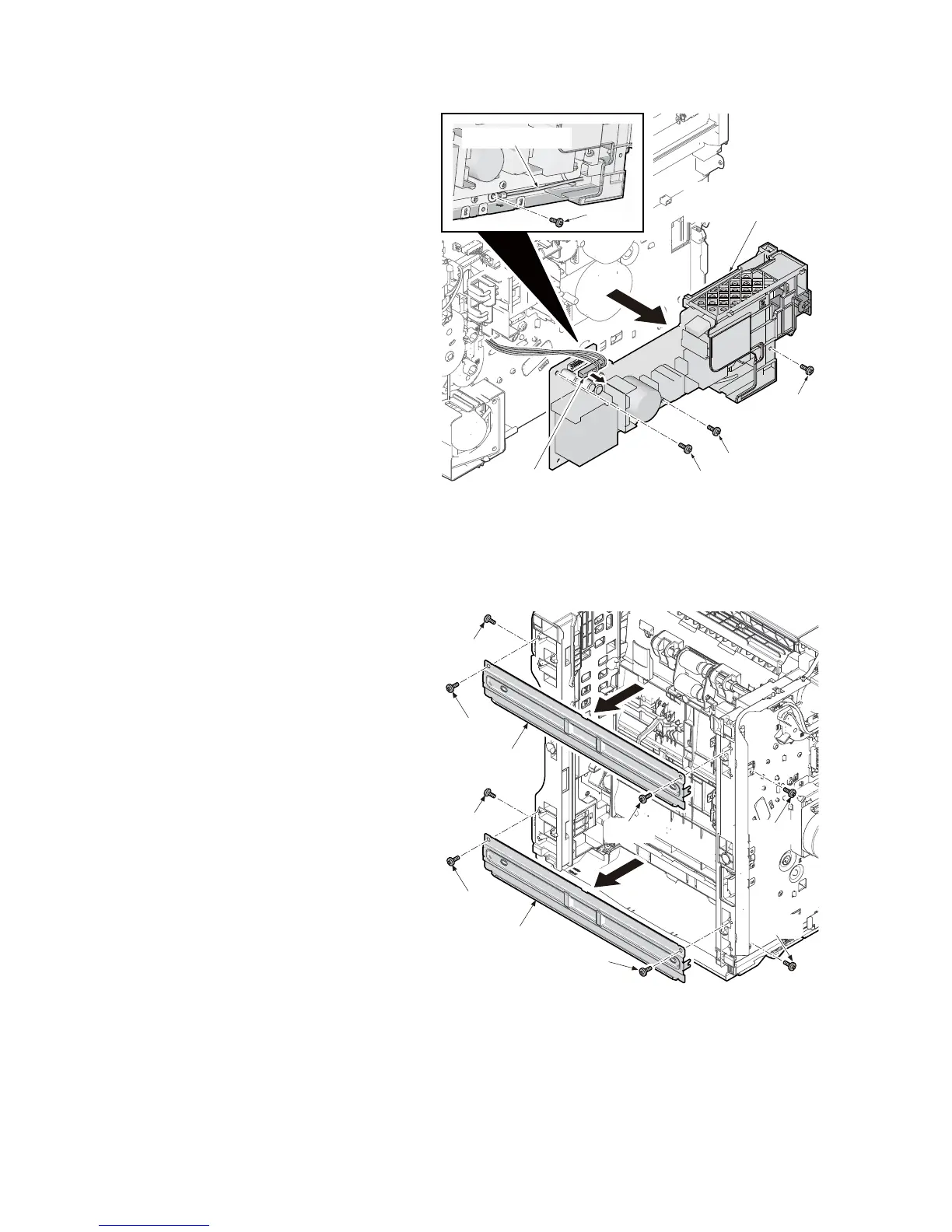

Figure 2-2-51
37. Stand the main unit front side up.
38. Remove four screws each and then
remove the bottom plate 1 and the bot-
tom plate 2.
Figure 2-2-52
Power source PWB
assembly
Screw
Screw
Screw
Screw
Grounding wire
Connector
Screw
Screw
Screw
Screw
Screw
Botom plate 2
Screw
Screw
Screw
Bottom plate 1
