04E3920 User Manual QuickTOC
®
purity
ATEX 2 99
7 How to Work With the Analyser
7.2 Configuration
LAR | PROCESS ANALYSERS AG

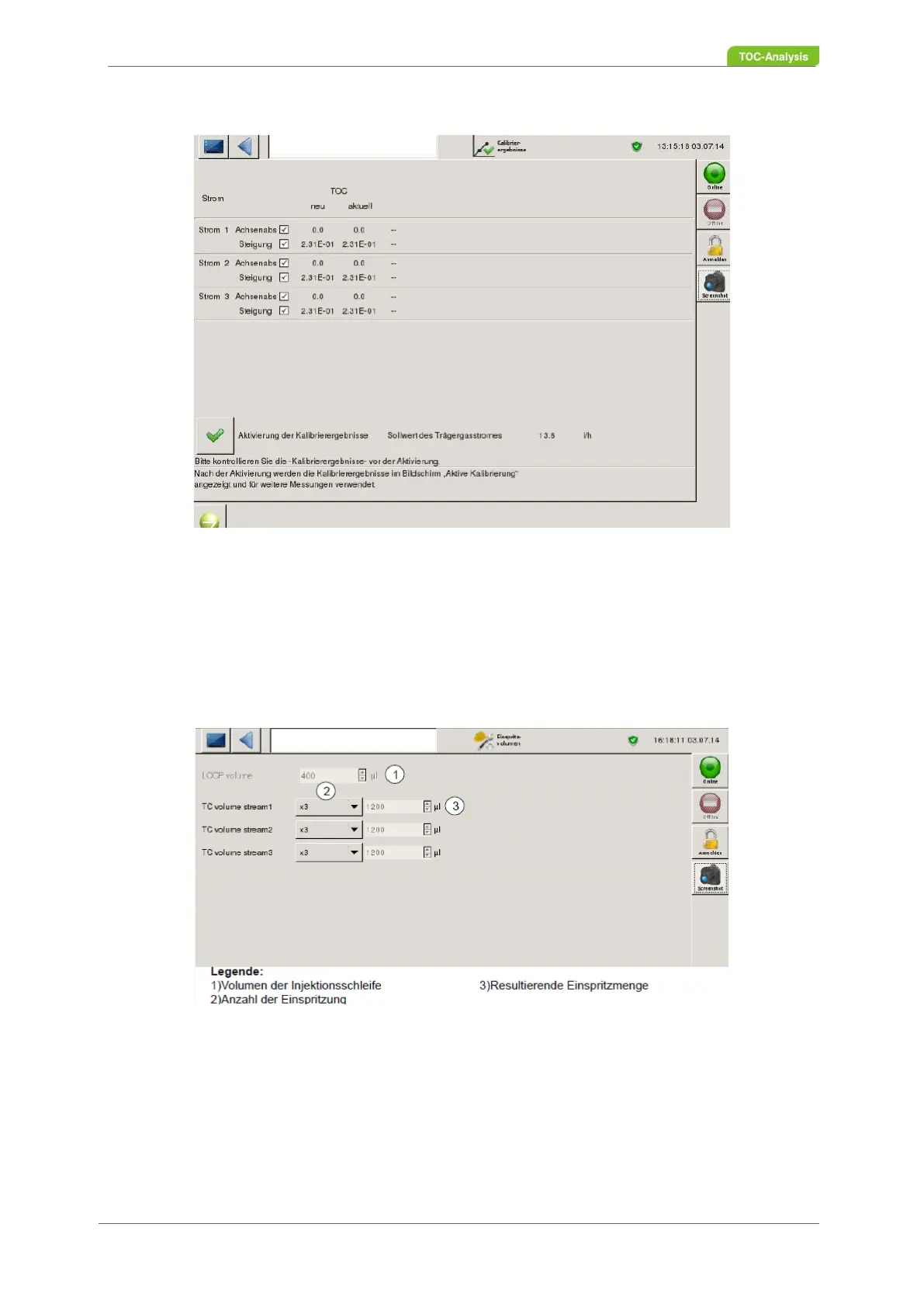

Fig. 61: Screen with Calibration results
7.2.5 Injection Volume
In user level 2, the injection volumes injected into the furnace during the measurement can be determi-
ned:
• TC for each existing stream
Fig. 62: Injection volume screen (three sample streams, example)
When changing the amount of injections for each stream (2) (especially for multiple injection), the injec-
tion amount (3) is increased or decreased.
