04E3920 User Manual QuickTOC
®
purity
ATEX 2 21
3 Product
3.3 Construction of the Analyser
LAR | PROCESS ANALYSERS AG
3.3 Construction of the Analyser
3.3.1 Front View

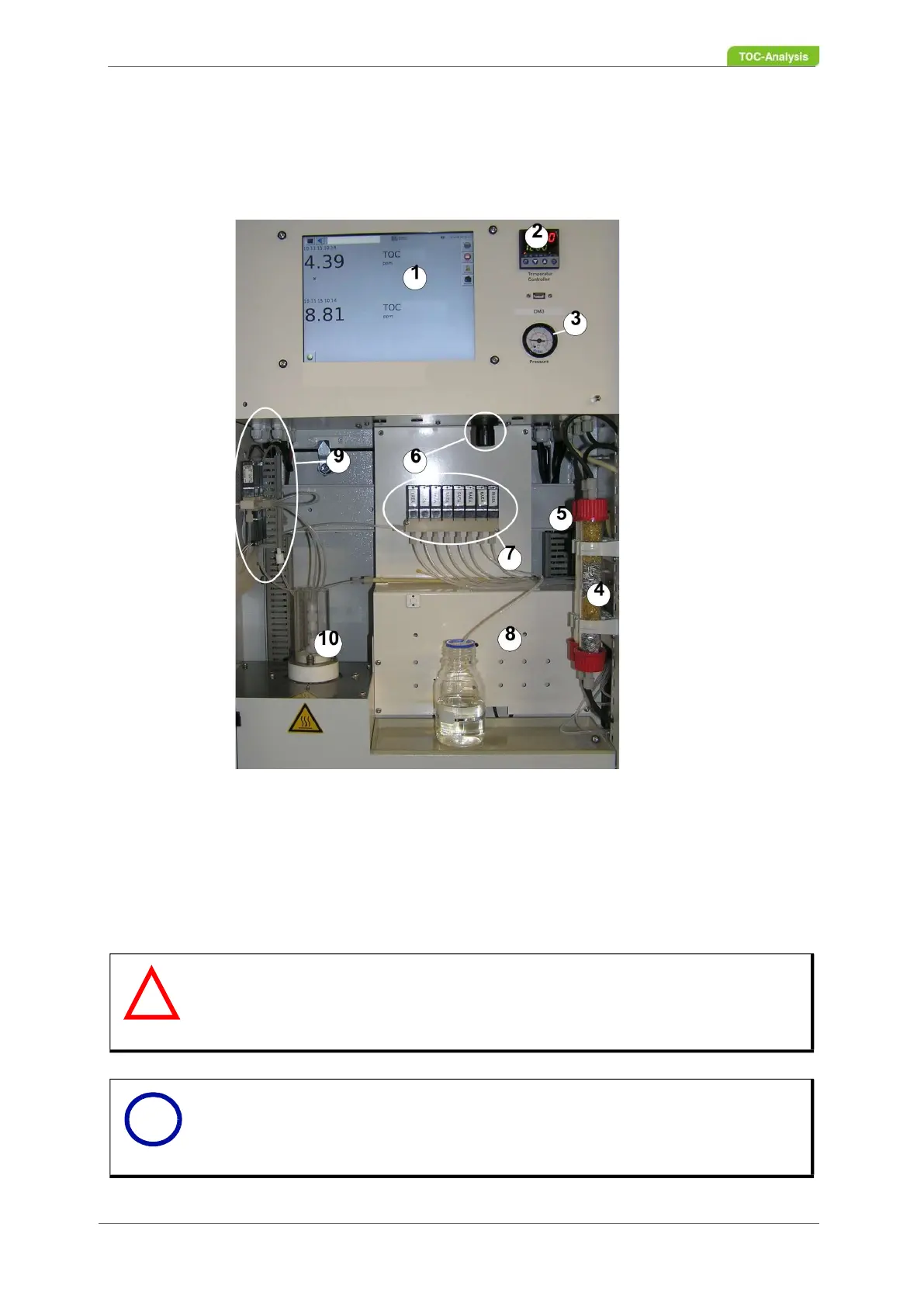

Fig. 4: Front view of the analyser (open) (Example: 6 sample streams, TOC direct method)
Danger
Danger of Burns!
The area around the injection block and the furnace system (9) is hot during operation.
Use heat-resistant gloves when working on the injection block or the furnace system.
Notice
A system key is included for peronell with authorisation.
Unauthorised personell are not permitted to open the front door of the housing.
1 Touchscreen
2 Temperature regulator (Actual/Target)
3 Pressure display of carrier gas prepressure
4 Quartz wool filter
5 Pressure regulatorI
6 Valve block for samples
7 Calibration vessel
8 Sample vessel
9 Injection block and furnace
10 Injection unit with needle
User interface
Analyser
!
