04E3920 User Manual QuickTOC
®
purity
ATEX 2 25
3 Product
3.4 Components of the Analyser
LAR | PROCESS ANALYSERS AG
3.3.4 Left side

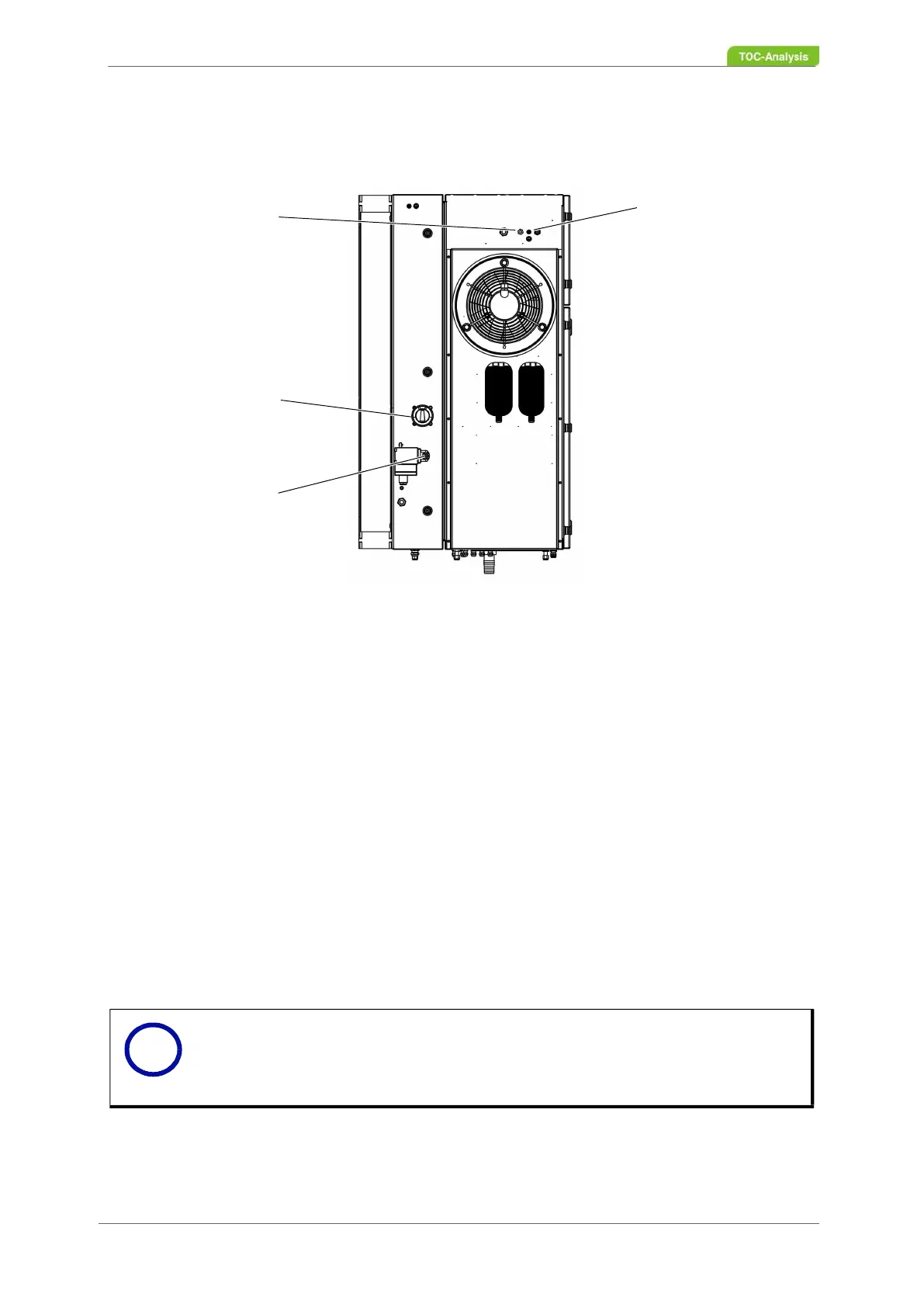

Fig. 7: Left side of the analyser
3.4 Components of the Analyser
To provide you with an overview of the components fitted, this section explains the most important com-
ponents, and their positions and functions in the analyser.
3.4.1 Pump System
Depending on the number of sample streams and the selected measurement method, the number of
pumps, pump type, and position of the pump may vary within the analyser (installed inside or outside).
Notice
The analyser is equipped with a tube cassette pump fitted with five tube cassettes at
the factory. This tube cassette pump is used to drain the condensate and, when using
the TOC difference method, to transport the required acid to and from the TIC reactor.
1
2
3
4
1 Rinsing air inlet
2 Main switch
3 Ground connection
4 Connection for trackball
i
