The zero signal of the detector is measured during an adjustable period of time before the start of the
measurement. Upon detection of the zero or zero signal, the measurement begins when the
difference between the current signal and the zero signal is greater than the value of the start
integration. In general, the integration of a peak is the most relevant part of any measurement, as it
directly affects the measurement results. In standby mode, the integration value of the last
measurement is displayed until a new measurement starts. The integration is measured as FRS * s
(full scale range of the detector * seconds).
• Integration
Peak area after the measurement.
• Integration TIC
Peak area of the TIC after the measurement. This value is only relevant for the TIC measurement.
• Current signal
This value corresponds to the current signal during a measurement. This value can be used to
control the basic contamination of the carrier gas when no measurement is taken.

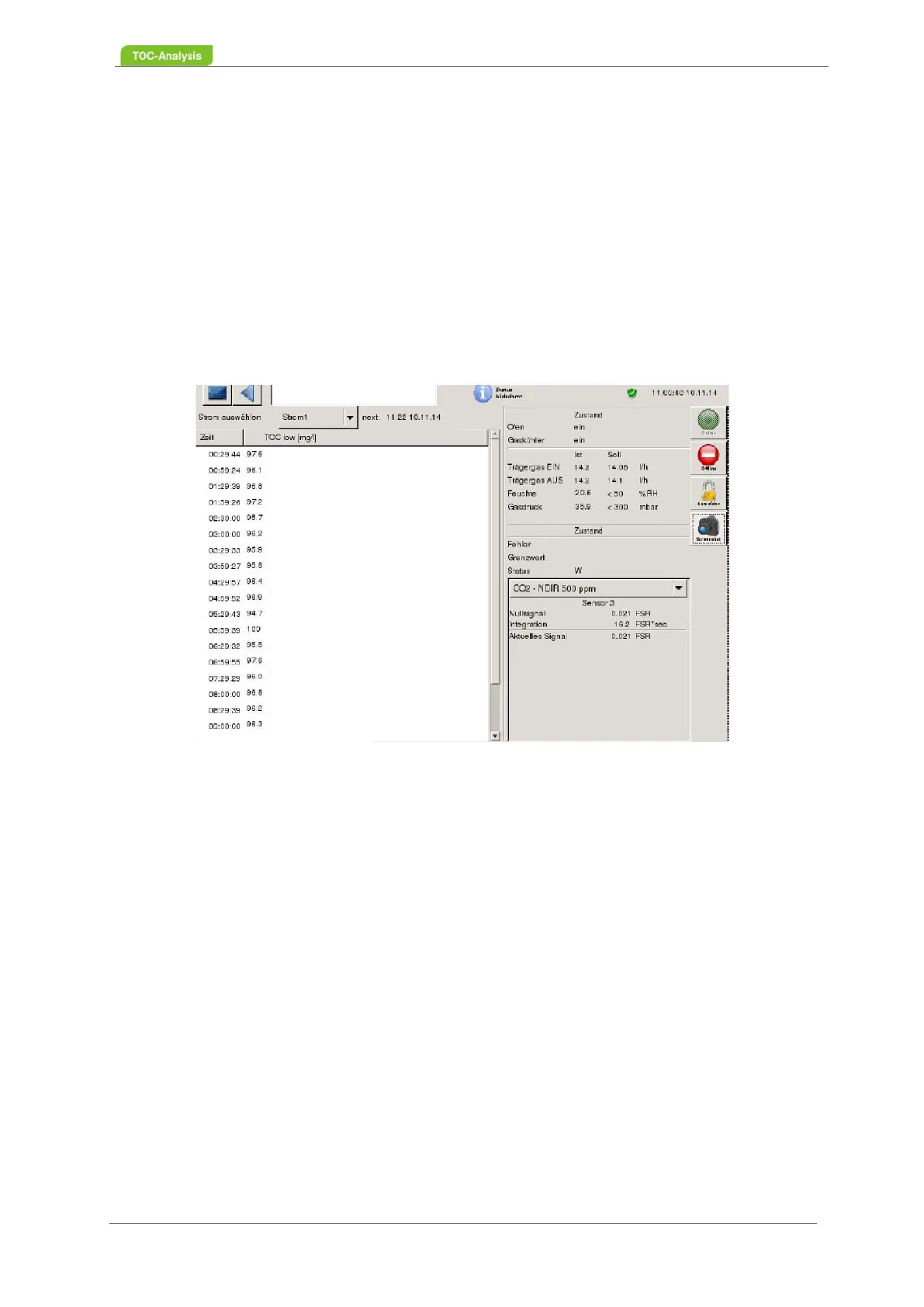

Fig. 69: Status screen (Example)
7.2.12 Service Actions
The following actions can be selected in the "Service Actions" view:
• Rinse sample tubes (with indication of rinse time)
• Oven on / off
• Condensate pump on / off
If a measurement or calibration is performed, none of these actions can be activated; First, the action
currently being performed (for example, measurement) must be completed via the "Offline" button.
