5 Start-up
5.4 Removing Transport Locks LAR | PROCESS ANALYSERS AG
5.4.1 Furnace Transport Screw
For transportation, the furnace is secured with a bolt and a spacer sleeve, which must be removed for
operation.
Proceed as follows:
1. Open the furnace door in the analyser.
2. Use the screwdriver to remove the transport bolt (1) for the furnace.
3. Remove the spacer sleeve (2).
4. Close the furnace door of the analyser.

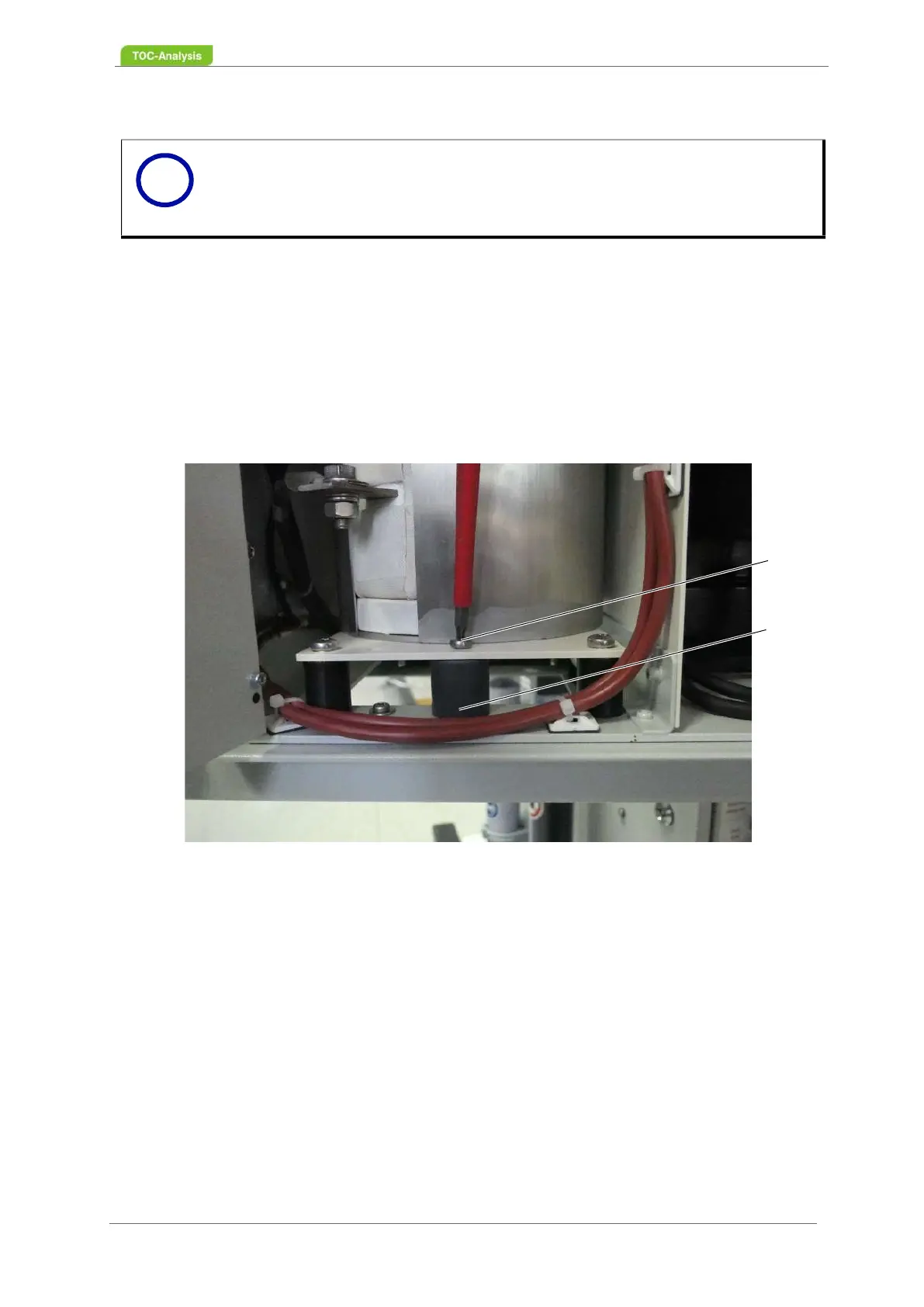

Fig. 37: Removing the transport locks of the furnace
Notice
Transport locks can also be affixed to accessories and options.
Information to remove transportation locks of accessories and options can be found in
Chapter 9 from page 169.
