5 Start-up

5.5 Aligning the Voltage

LAR | PROCESS ANALYSERS AG

5.5 Aligning the Voltage

1. Check the power supply.

2. Compare the mains voltage with that specified on the analyser (siehe Fig. 3, page 20) ab.

5.6 Switching on the Pre-Fusing

In order to switch the analyser on, the lock on the automatic circuit breaker must be removed and the

fuses must be switched on.

Proceed as follows:

1. Open the rear part of the housing to access the mounting plate (Fig. 14, page 18).

2. Open the yellow lock (1) by pulling it forwards.

3. Use your finger and thumb to press in the metal clip, and remove the lock (1).

4. Switch all fuses on.

5. Close the rear part of the housing.

5.7 Filling and Installing the Reactor PipeReactor Pipe

Some components of the furnace system are packed individually for safety during transit. These com-

ponents must be fitted in the furnace.

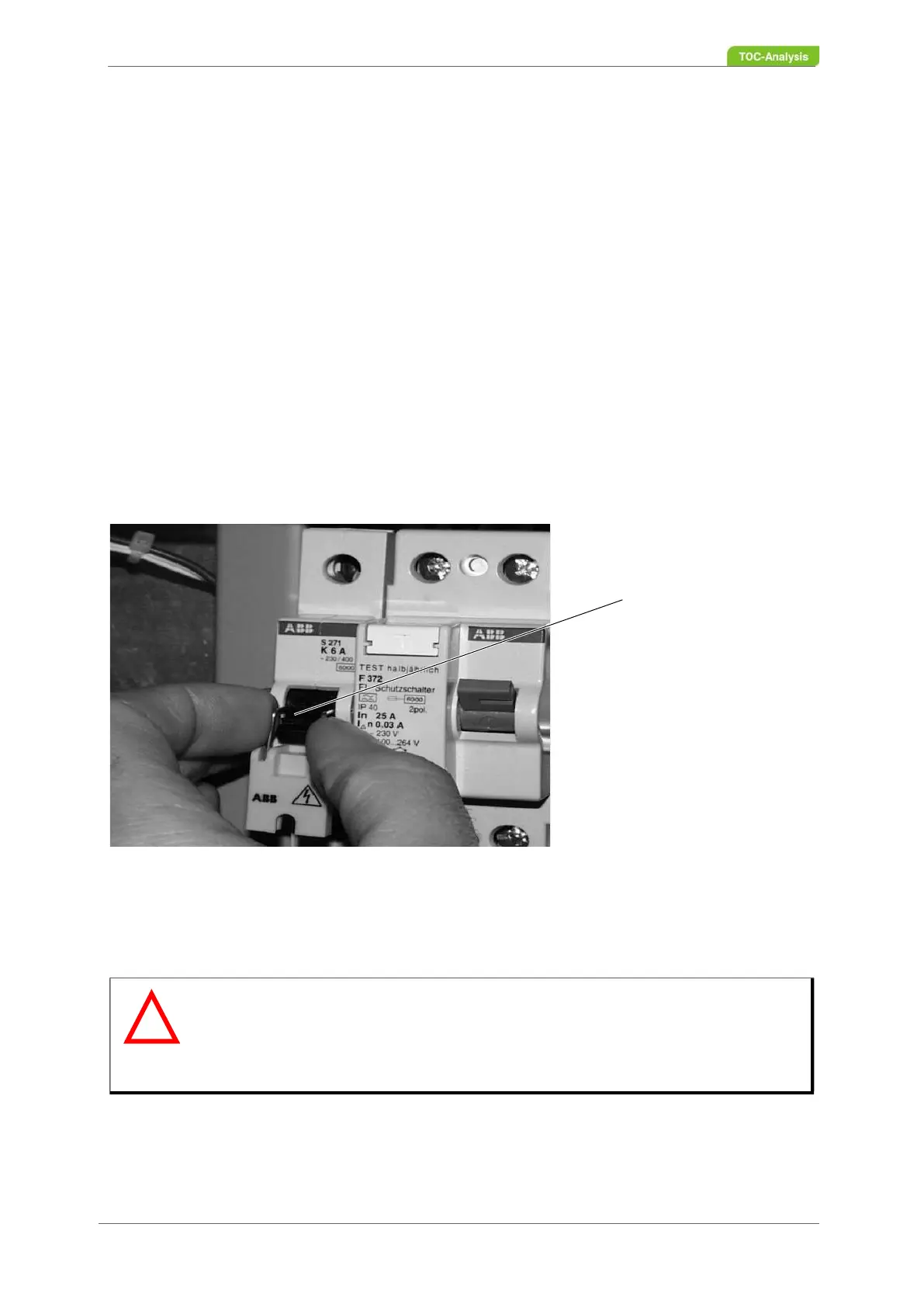

Fig. 38: Remove the safety clip of the Pre-fusing

Warning

Warning of damage to the analyser

The analyser may suffer irreparable damage if operated with an unfilled reactor pipe

or without a reactor pipe.

Fill the reactor pipe and install the reactor pipe in the furnace before operating the ana-

lyser.
