5.7 Filling and Installing the Reactor PipeReactor Pipe LAR | PROCESS ANALYSERS AG
Remove the following components from the packaging:
• Reactor Pipe
• Protective Pipe
• Ceramic Sieve
• Ceramic Balls
• Green Protective Seal
Assembly of the Reactor Pipe:
Proceed as follows:
1. Place the ceramic sieve (4) on the taper of the reactor tube. Make sure that the ceramic sieve rests
horizontally.
2. Fill 7 mm of the ceramic balls (3) to the height of 190 mm from the top of the reactor tube.
3. Fill 3.5 - 4.5 mm of the ceramic balls (2) up to a height of 150 mm from the top of the reactor tube.
4. Insert the short protective tube (1).
l

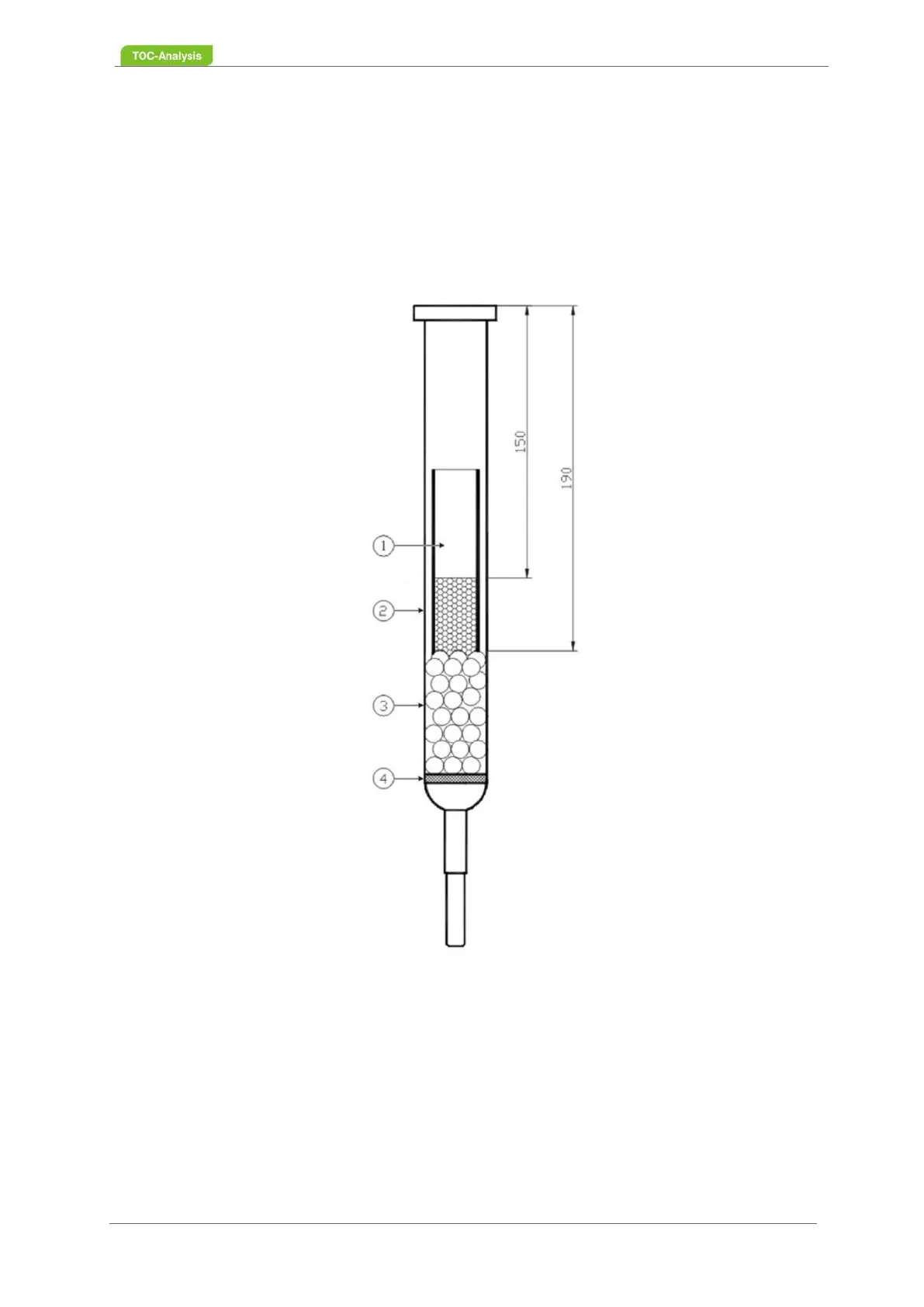

Fig. 39: Reactor pipe filling
