8 Care and Maintenance
8.3 Care and Maintenance Tasks
LAR | PROCESS ANALYSERS AG
9. After installing the freshly filled quartz wool filter, the status screen must be recalled. The pressure
value [mbar] should not deviate too much from the previously read pressure value.
10. Insert a new tube of the same length into the sample pump.
8.3.22 Replace Gas Filter
The gas filter is located behind the control panel in front of the detector.
1. Open the clamp at the top right where the gas filter (2) is attached.
2. Disconnect the connection hoses (1) of the gas filter from the connections.
3. Pay attention to the direction of the volumetric flow (see black arrow).
4. Insert the new gas filter (2).
5. Pull the connecting hoses (1) of the gas filter onto the connections.
6. Close the clamp.
8.3.23 Check Viton Tubes and Replace if Necessary
The Viton tubes are black and are located on the gas cooler.
1. If the visual inspection results in a lining or blockage inside the tube, it must be cleaned or
replaced.
2. Clean the hose with deionised water and a pipe cleaner in a laboratory flask. If the hose is too dirty,
it should be replaced.
3. Remove the hose from both sides of the device and insert a new, identical Viton tube. This allows
the hoses to be replaced one after the other.

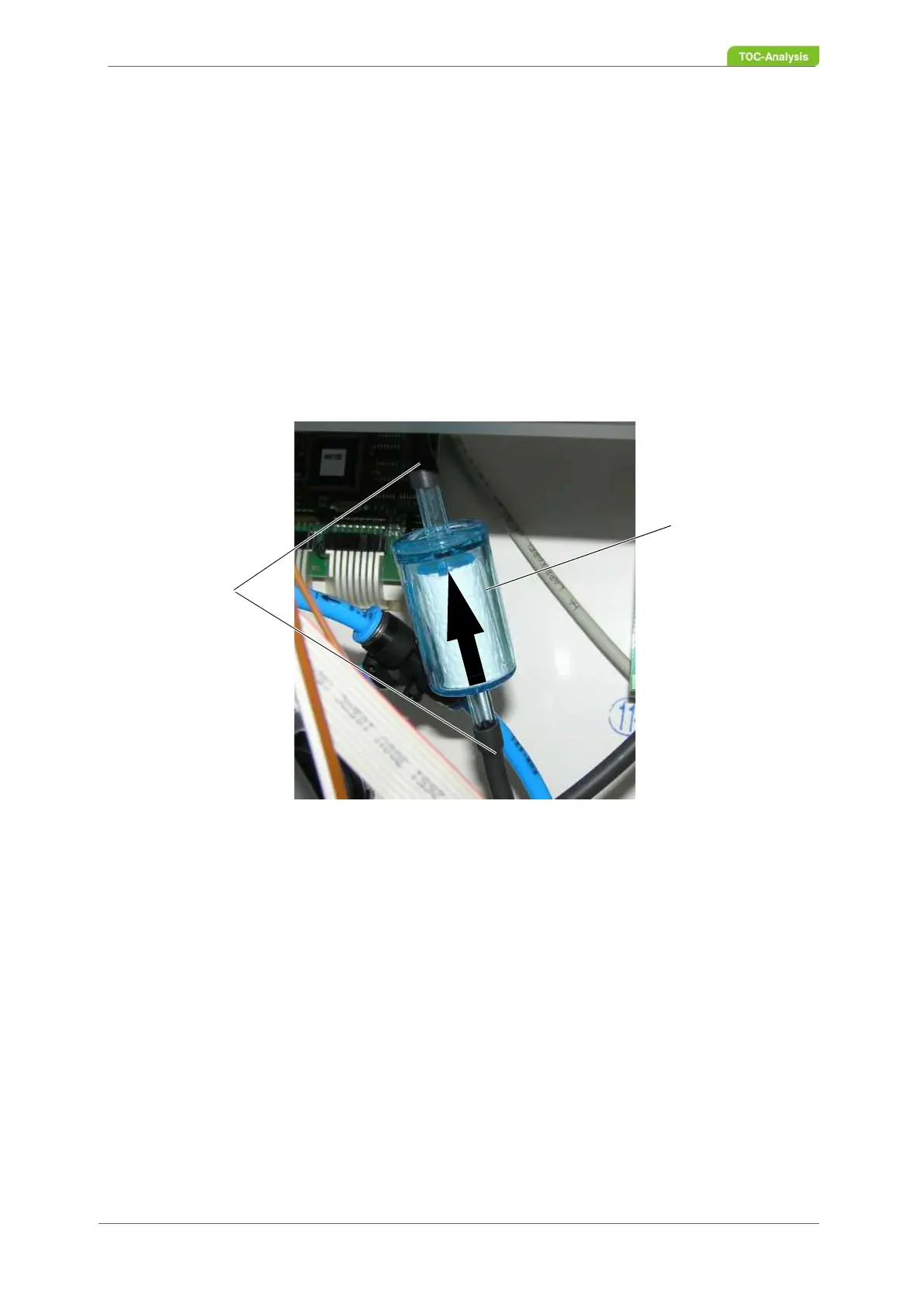

Fig. 109: Gas filter
2
1
