04E3920 User Manual QuickTOC
®
purity
ATEX 2 45
3 Product
3.6 Components of the Explosion Protection
LAR | PROCESS ANALYSERS AG

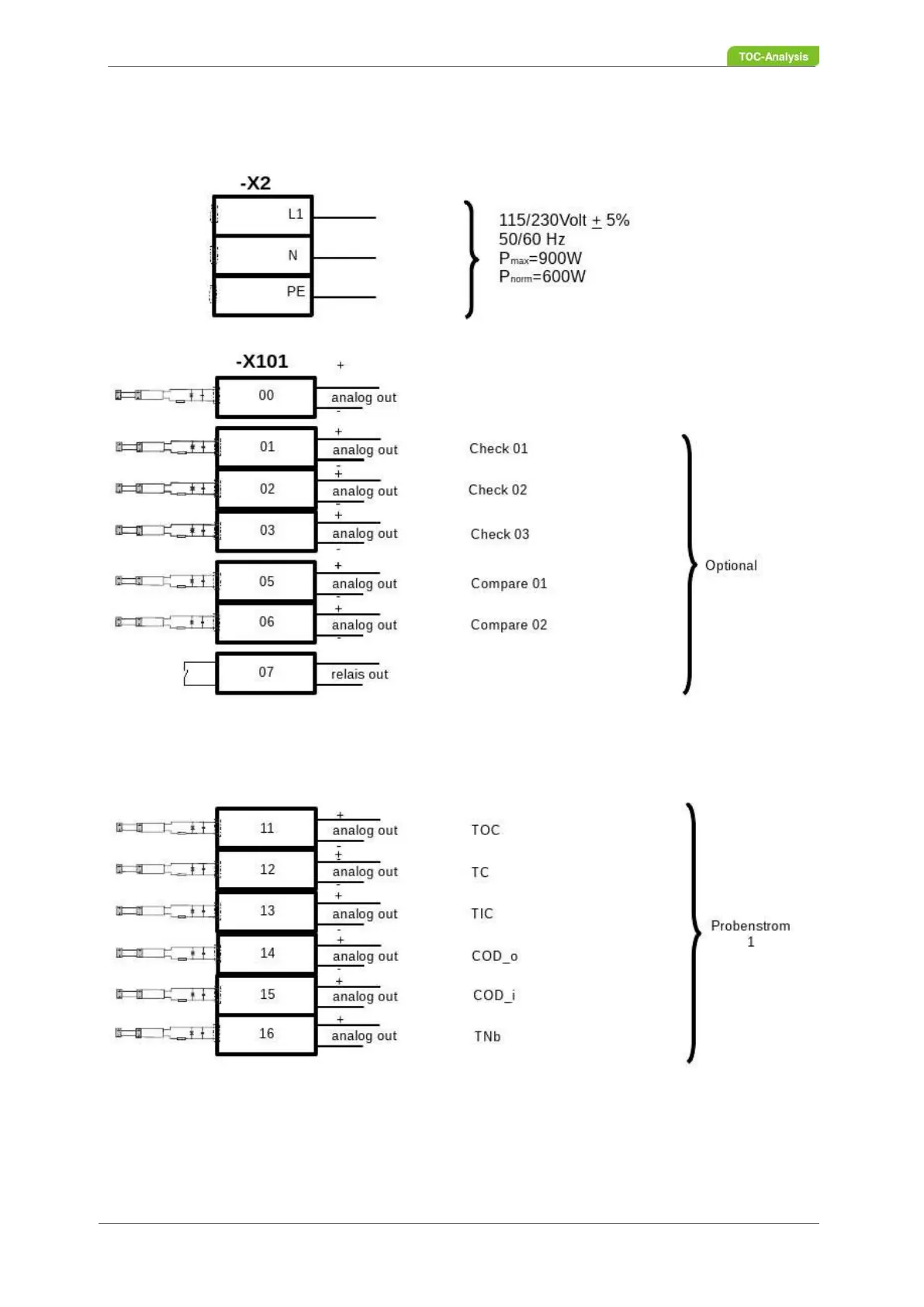

Fig. 29: Terminal plan (part I) - Power supply, fixed analogue outputs, programmable analogue out-
puts
Analog outputs 0/4-20 mA max. load 500 W
Set Analog Outputs
Power supply
Pressostat
Water Alarm
Sample stream1
To Next Page
