DIGISONDE-4D
SYSTEM MANUAL
VERSION 1.2.11
SECTION 3 - OPERATING INSTRUCTIONS 3-17
RSF Ionogram with Echo Directions and Precision Ranging
3:27. Precision ranging is enabled by (a) setting number of fine steps to 2 and (b) selecting fine frequency
step of 5 kHz (Figure 3-9).

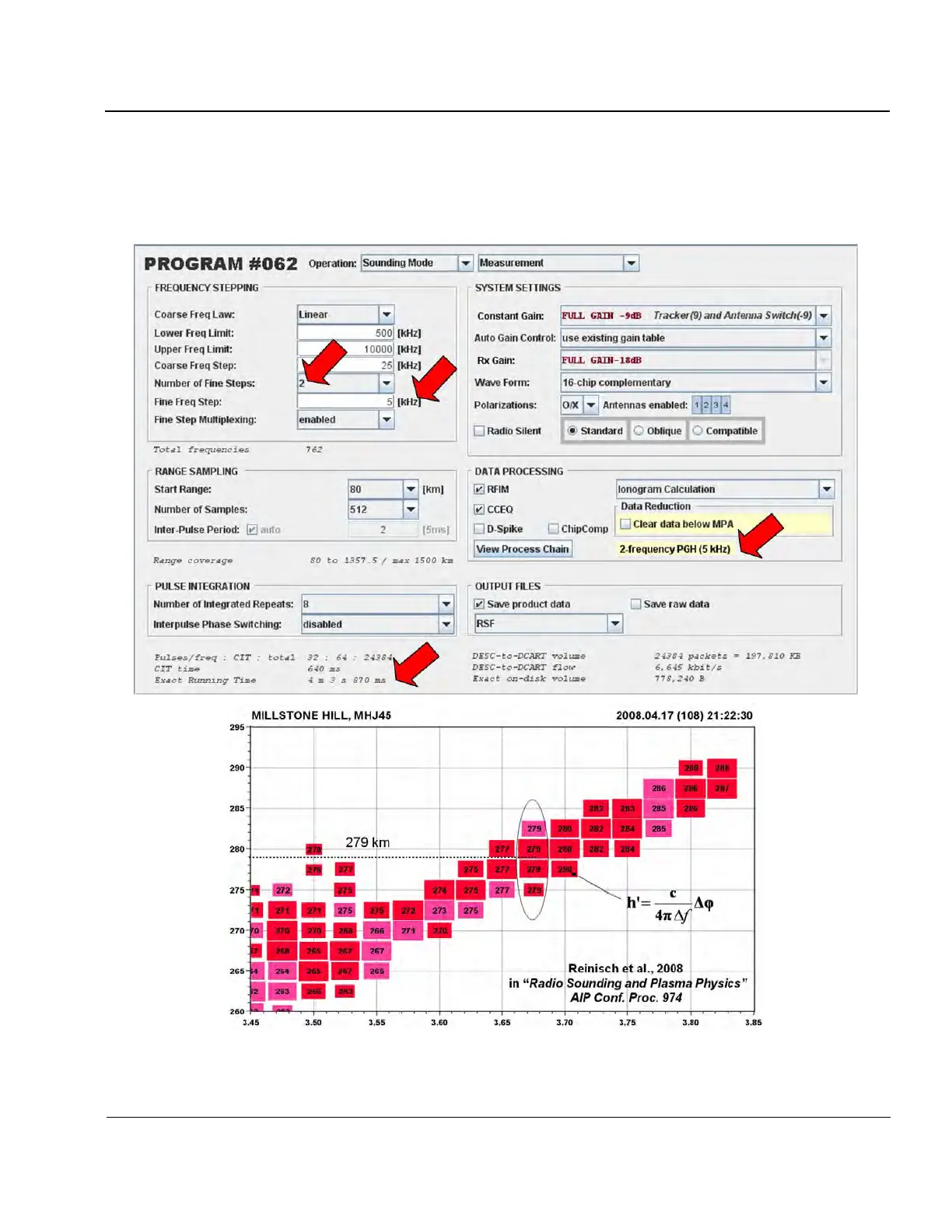

Figure 3-9: RSF Ionogram with Echo Directions and Precision Ranging (Running Time ~4 minutes)
