DIGISONDE-4D

SYSTEM MANUAL

VERSION 1.2.11

1-8 SECTION 1 - GENERAL SYSTEM DESCRIPTION

panel and main on/off switch, power interface box (formerly the battery interface), and a Radio Frequency In-

terference (RFI) filter for the AC mains input power (Figure 1-7).

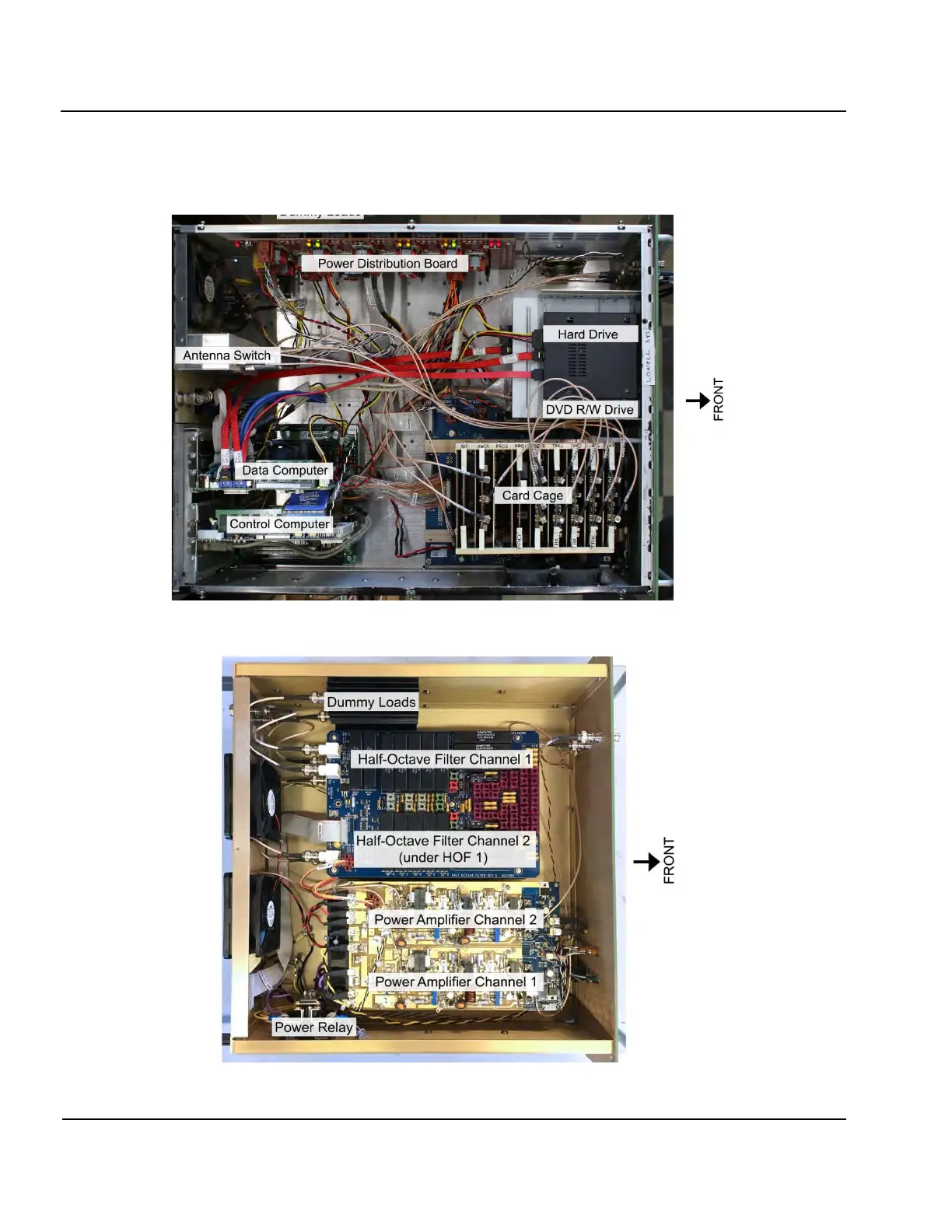

Figure 1-5: Main Chassis of the Digisonde-4D

Figure 1-6: Power Amplifier Chassis of the Digisonde-4D
