LDI DIGISONDE 4D - Power Management

LDI Intellectual Property.
Not for secondary distribution or replication, in part or entirety.
DIGISONDE-4D
SYSTEM MANUAL
VERSION 1.2.11
6-4 SECTION 6 - MAINTENANCE
POWER MANAGEMENT

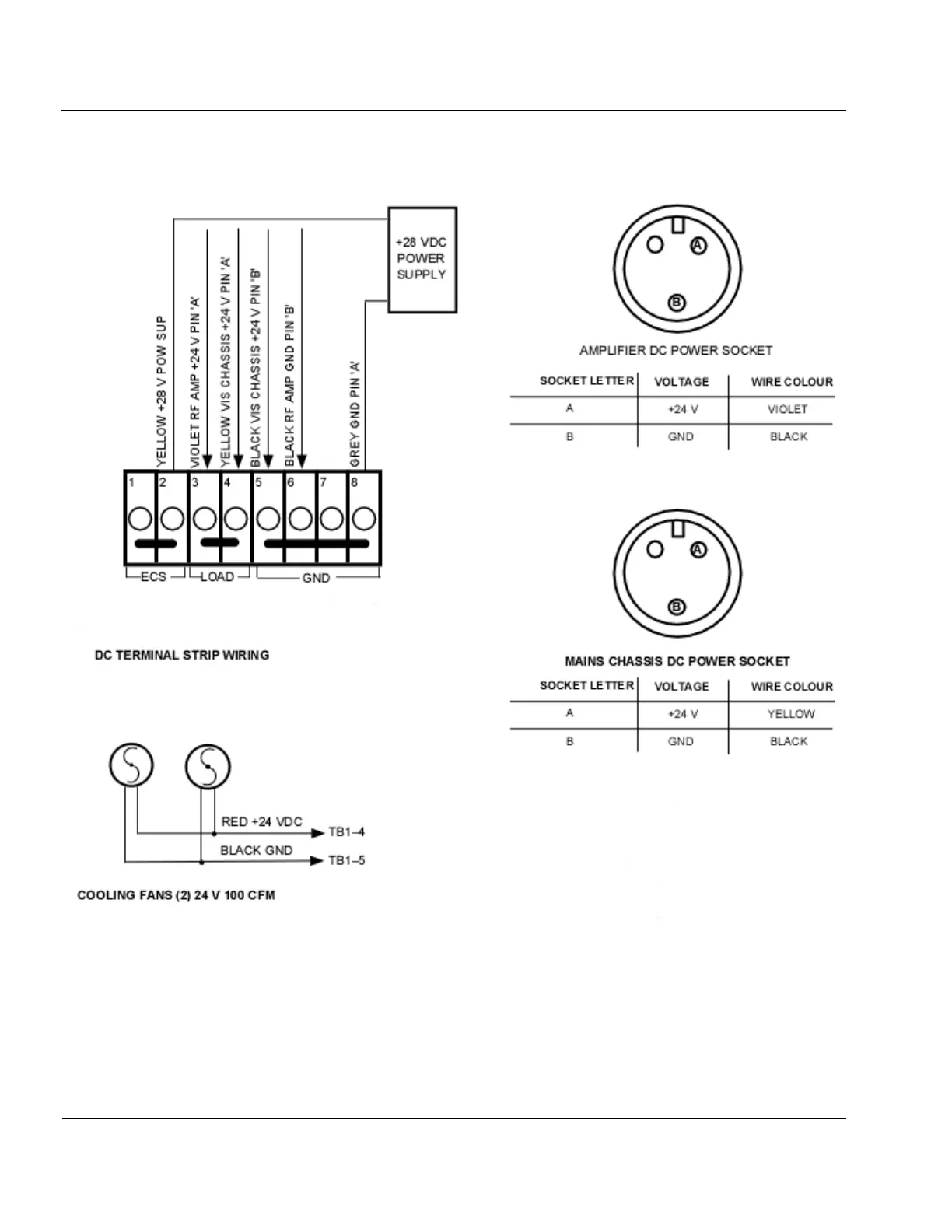

Figure 6-1: Power Management (Connections)
