DIGISONDE-4D
SYSTEM MANUAL
VERSION 1.2.11
2-12 SECTION 2 - INSTALLATION, SETTING UP AND FIELD VALIDATION

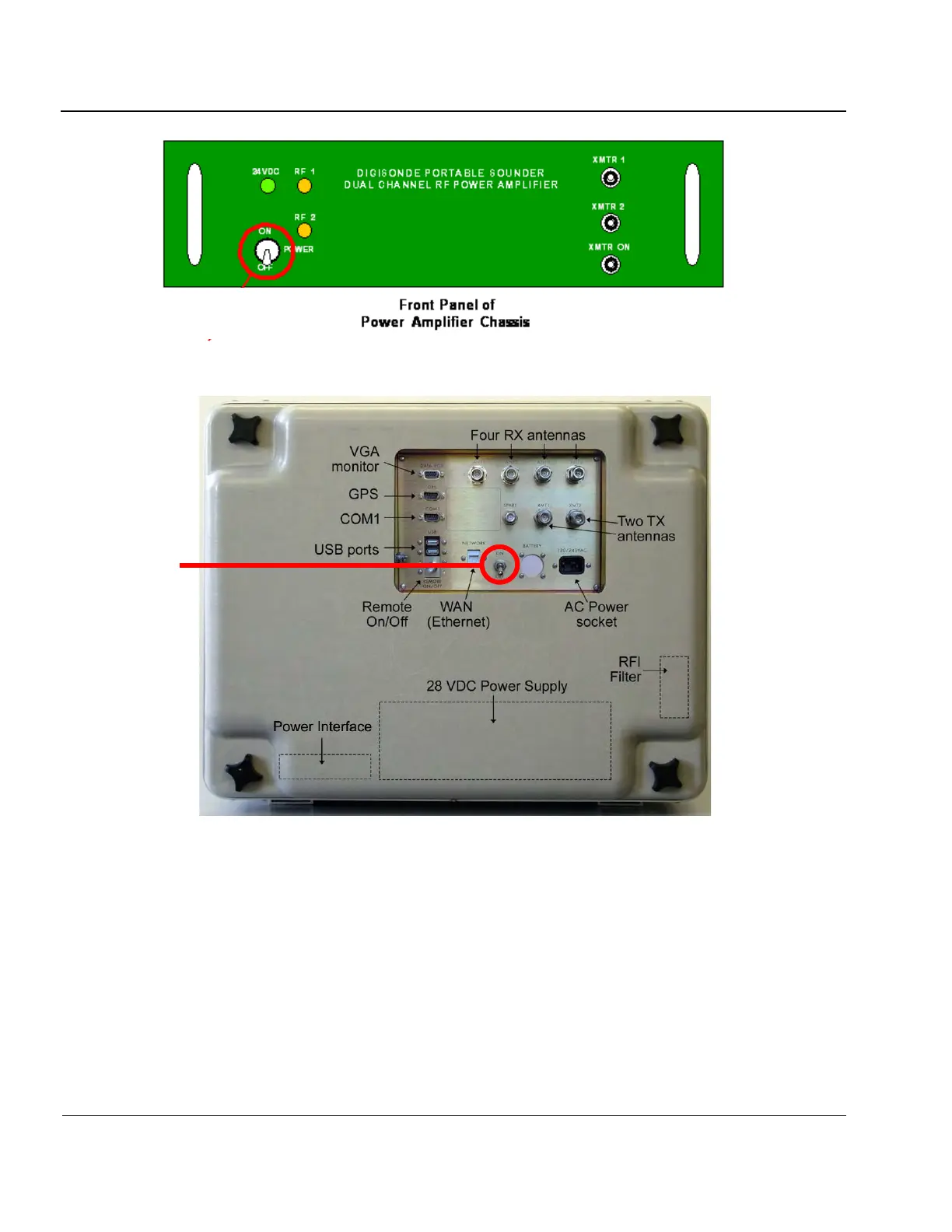

Figure 2-4: Location of the Front Panel ON/OFF Switch for the Power Amplifier
Figure 2-5: Location of the Rear Panel ON/OFF Switch and Connectors
Main
ON/OFF
switch
of the Rear
Panel
ON/OFF switch of the
Power Amplifier Chassis
