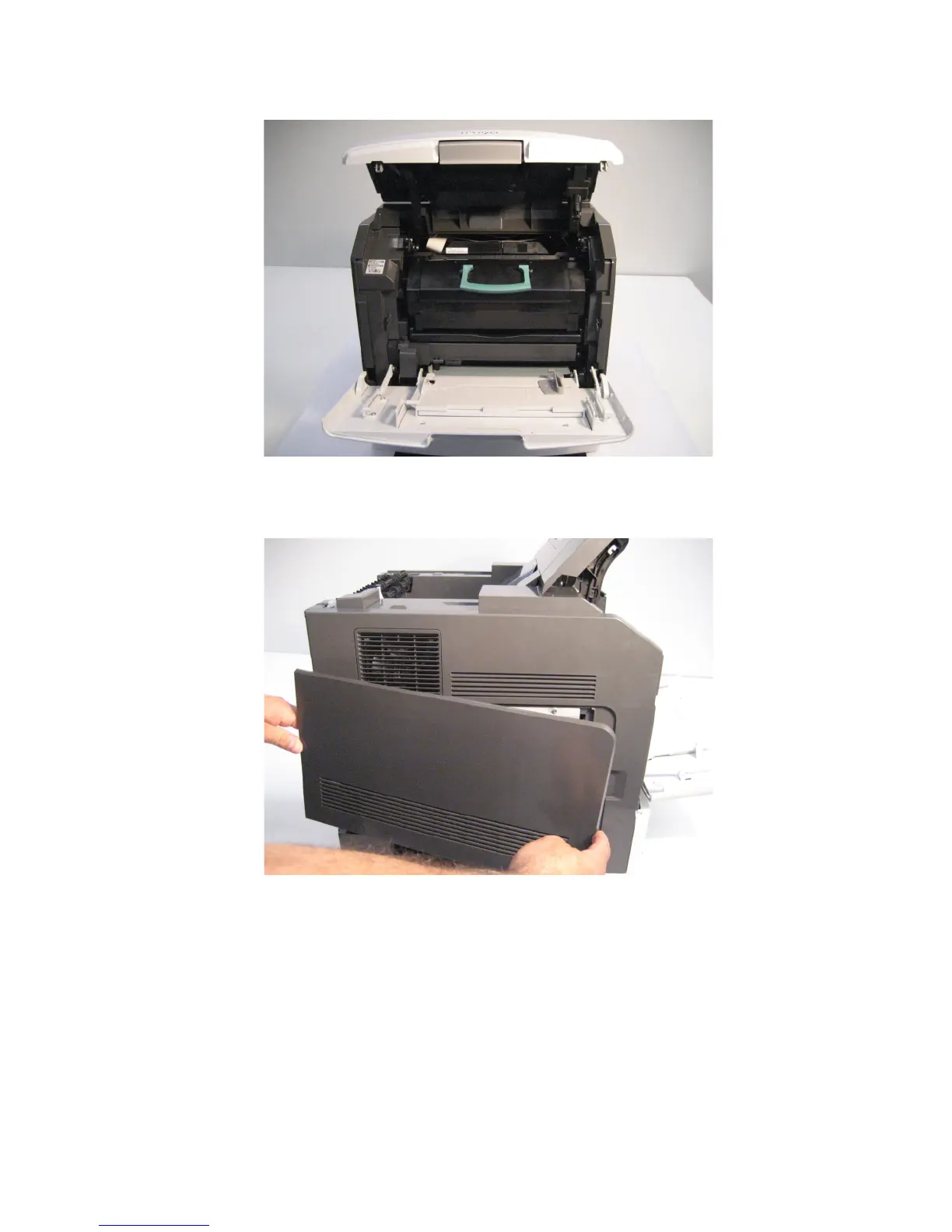

3 Raise the control panel to its uppermost position.
4 Remove the rear door. See “Rear door removal” on page 285.
5 Detach the controller board access cover.
6 Remove the rear lower cover. See “Rear lower cover removal” on page 280.
7 Remove the top cover. See “Top cover removal” on page 282.
