MPF feeder lift plate removal
1 Remove the left cover. See “Left cover removal” on page 277.
2 Remove the controller board access shield. See “Controller board access shield removal” on page 351.
3 Remove the media tray. See “Media tray removal” on page 339.
4 Open the control panel door.
5 Remove the toner cartridge.
6 Remove the imaging unit.

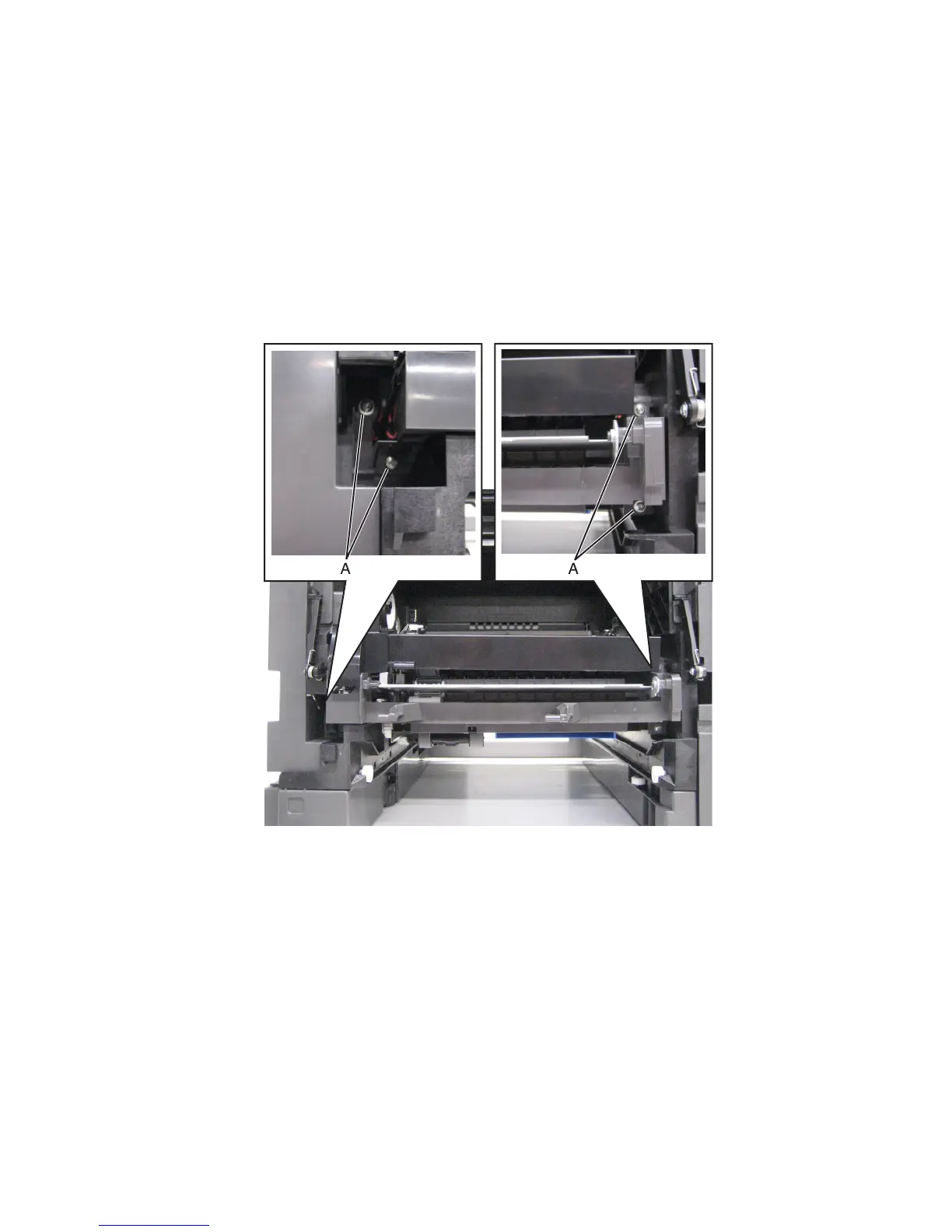

7 Remove the four screws (A) securing the MPF feeder lift plate to the machine.
