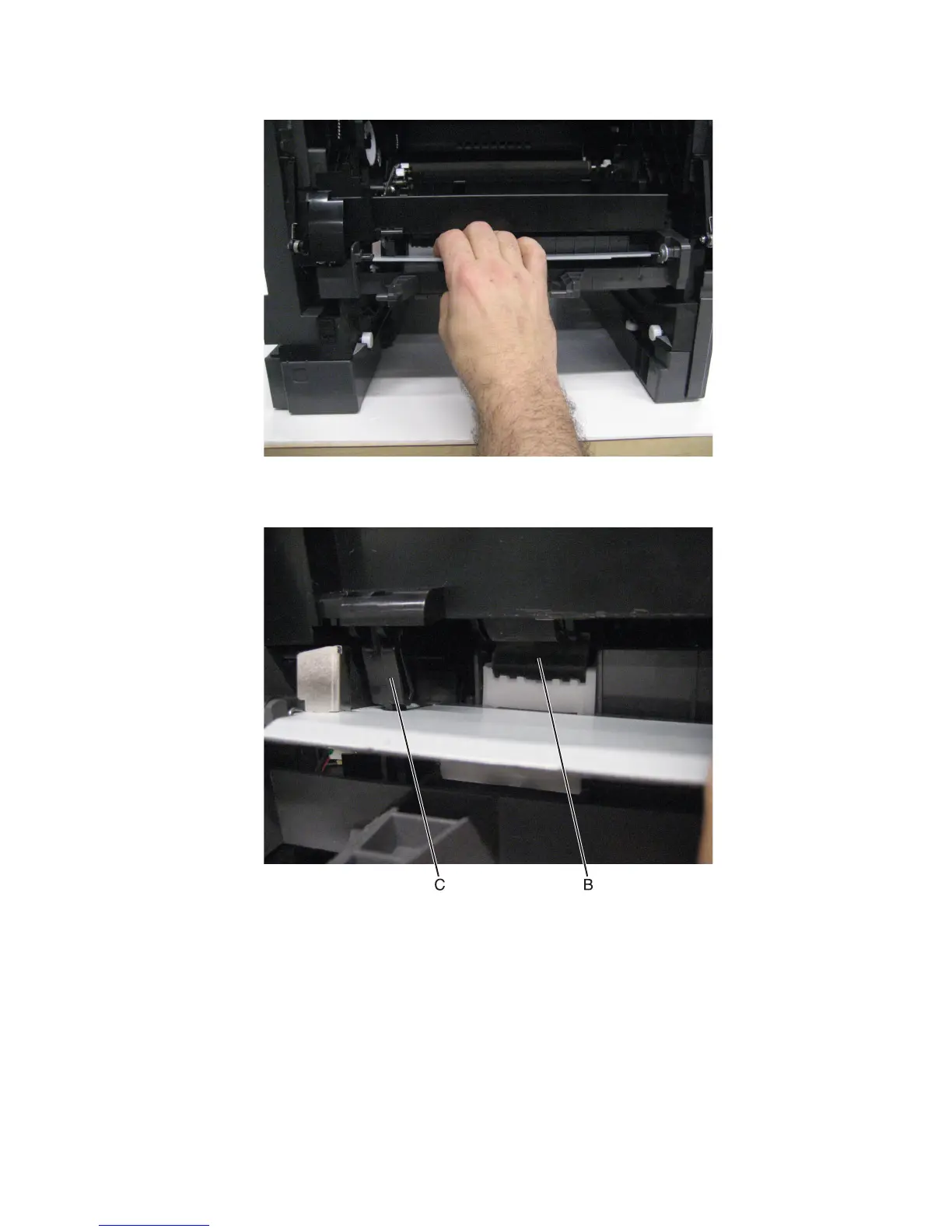

8 Press down the plate, as shown in the following image, and remove the MPF feeder lift plate.
Warning—Potential Damage: When you press down the plate, you are lowering the pick pad (B) away from the
MPF feed roller to prevent damage. If you do not do this, the pick pad will likely become damaged.
Installation warning: When replacing the MPF feeder lift plate ensure that the pick pad (B) is placed properly
behind the MPF feed roller.
Installation warning: When replacing the MPF feeder lift plate ensure that the actuator flag (C) is placed in the
slot, as shown in the following image.
4063
Repair information
303
To Next Page
