Right frame pivot removal
1 Remove the rear door. See “Rear door removal” on page 285.

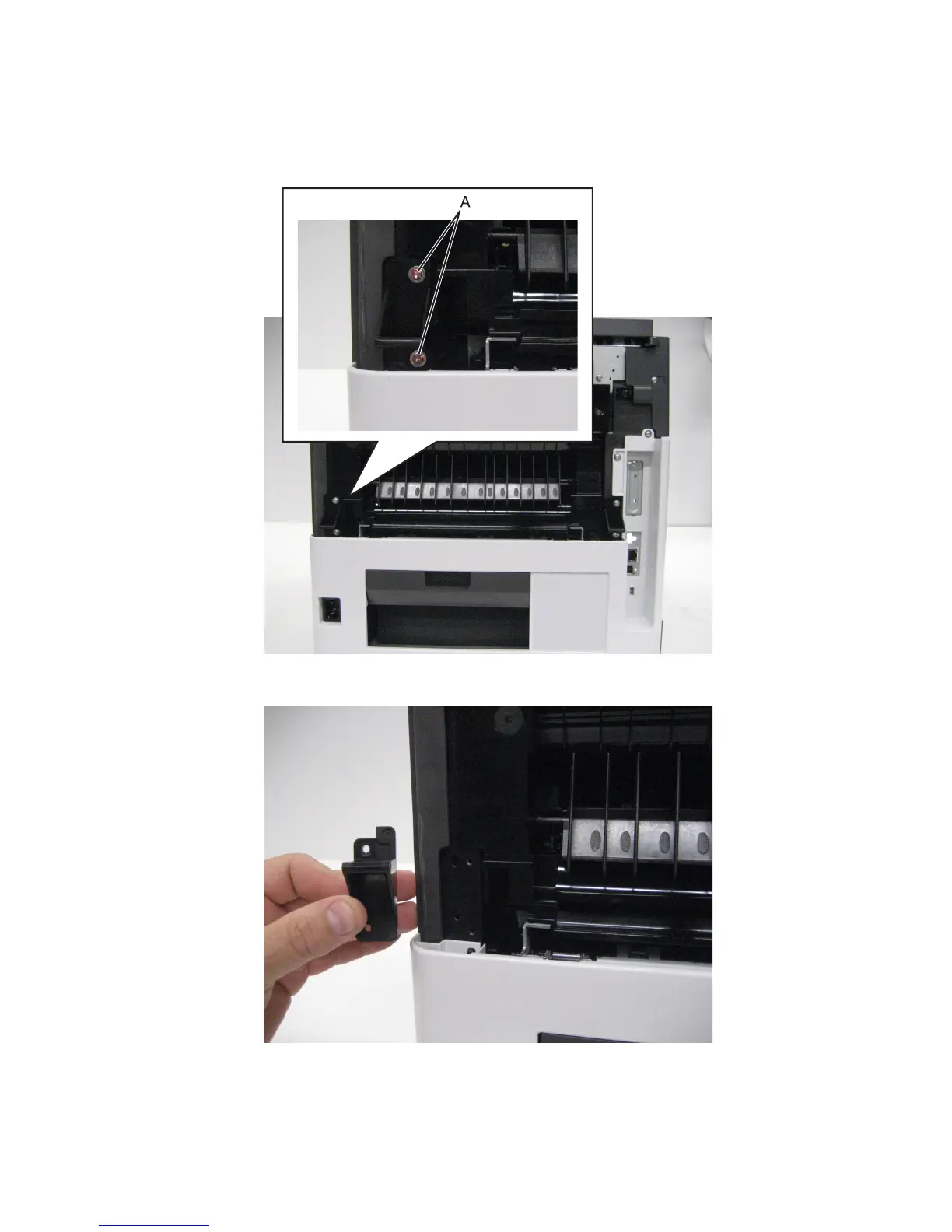

2 Remove the two screws (A) securing the right frame pivot to the machine.
3 Remove the right frame pivot.
4063
Repair information
327
