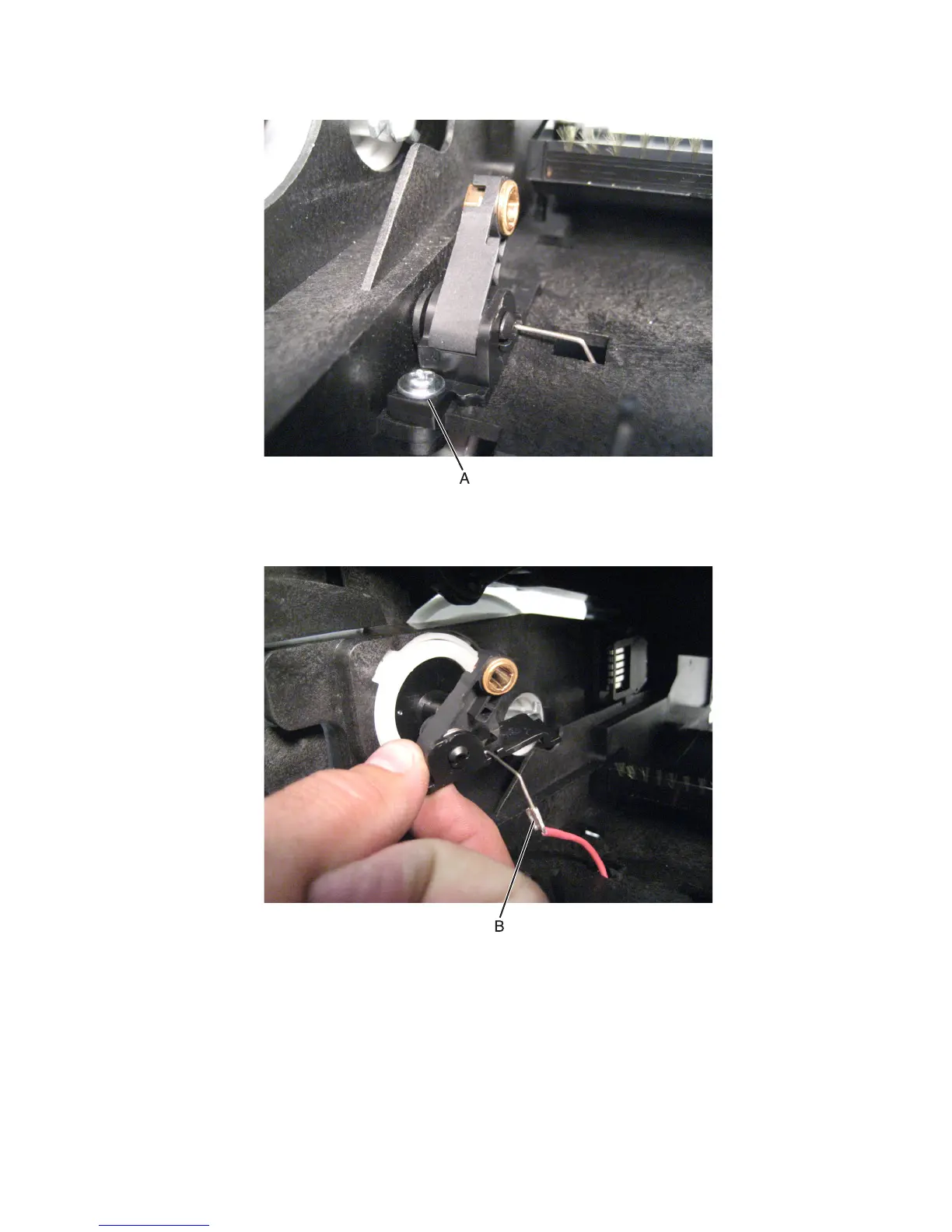

17 Remove the screw (A) securing the part to the machine.
18 Remove the transfer roller left arm with cable.
19 Disconnect the cable (B) from the HVPS.
Transfer roller right arm removal
1 Remove the left cover. See “Left cover removal” on page 277.
2 Remove the controller board access shield. See “Controller board access shield removal” on page 351.
3 Remove the media tray. See “Media tray removal” on page 339.
4063
Repair information
314
