Sensor (pick roller position) removal
1 Remove the right cover. See “Right cover removal” on page 283.
2 Remove the rear lower cover. See “Rear lower cover removal” on page 280.
3 Remove the LVPS. See “LVPS removal” on page 366.
4 Remove the left cover. See “Left cover removal” on page 277.
5 Remove the PCBA housing. See “PCBA housing removal” on page 357.
6 Remove the pick roller assembly. See “Pick roller assembly removal” on page 342.
7 Remove the media feeder. See “Media feeder removal” on page 356.

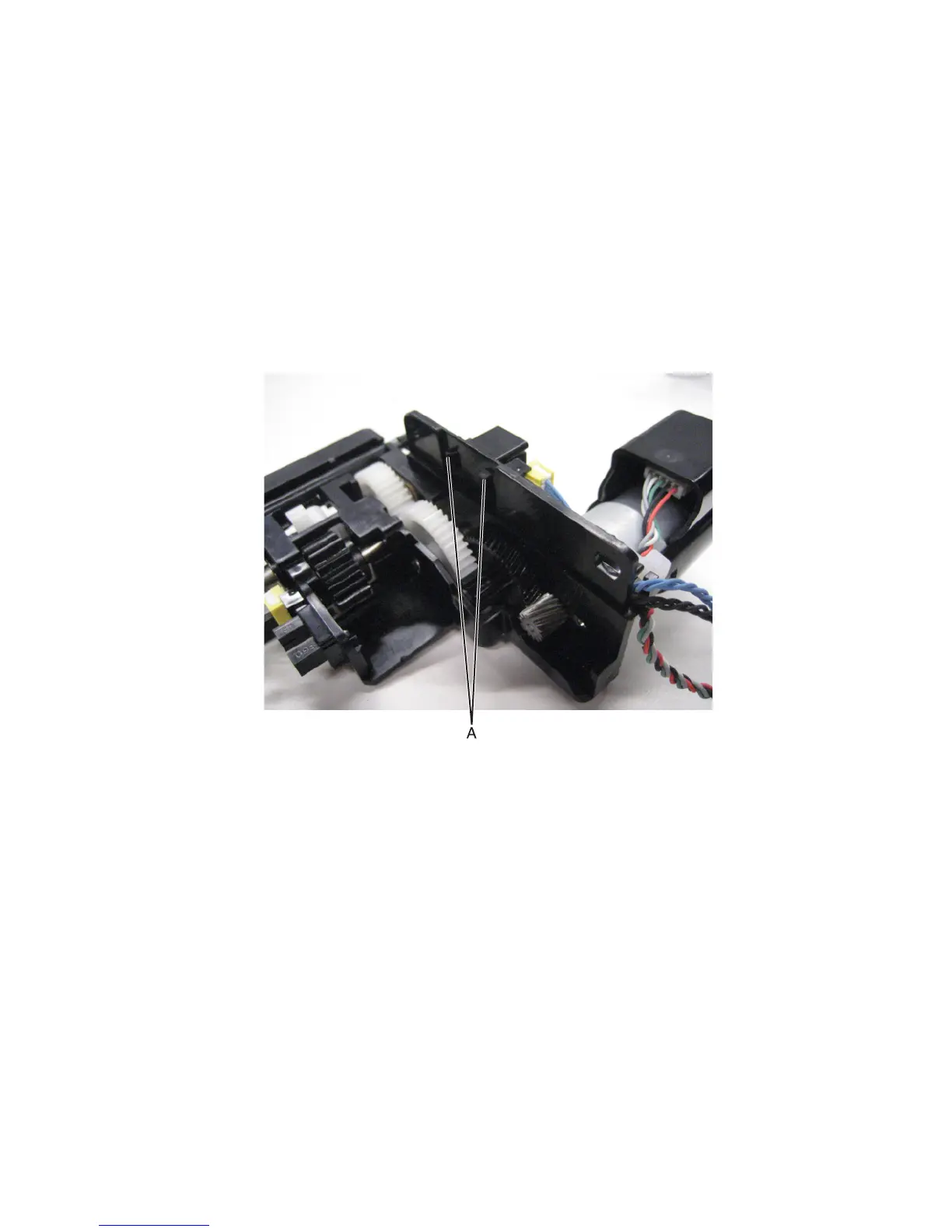

8 Release the hooks (A) securing the sensor (pick roller position) to the assembly.
9 Remove the sensor (pick roller position).
