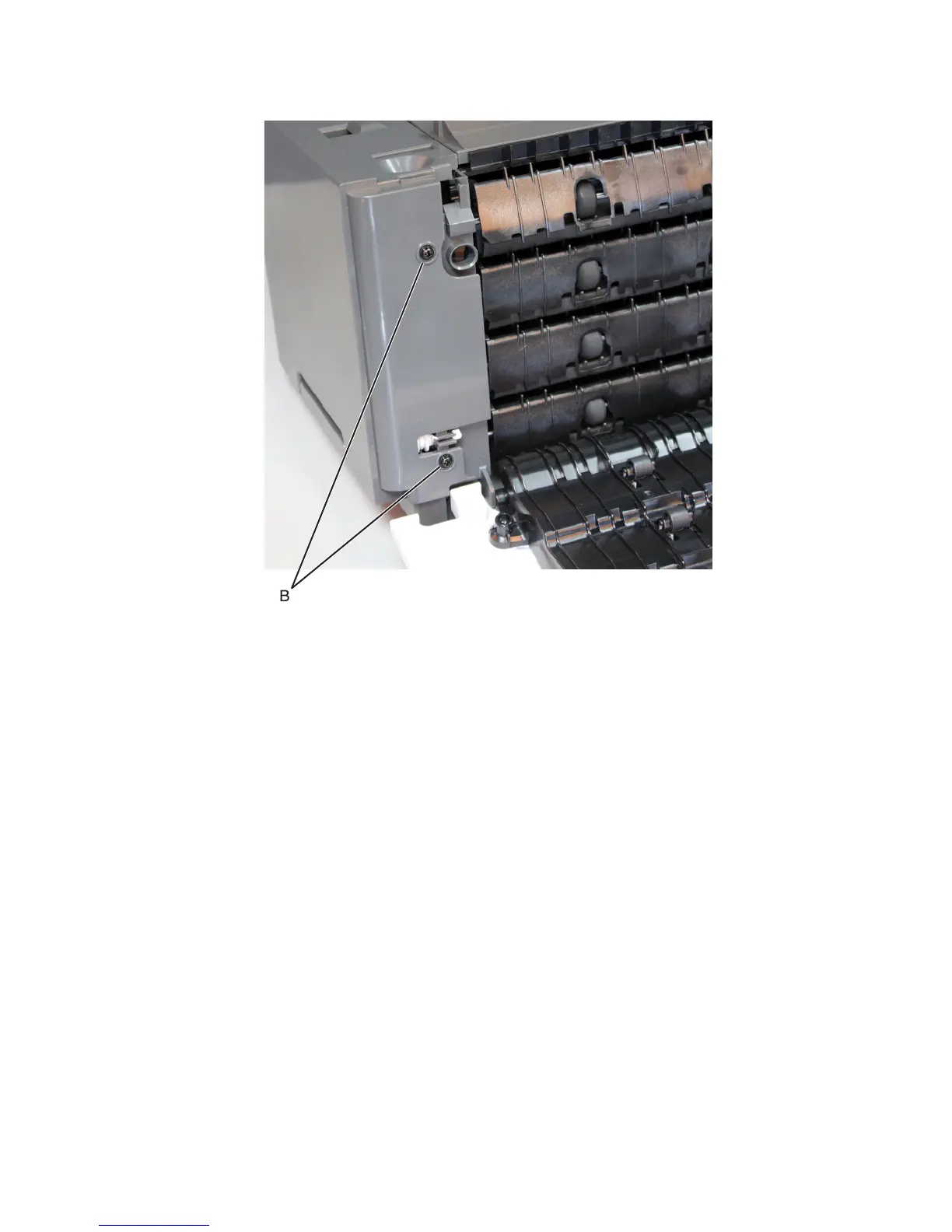

3 Remove the two screws (B) from the mailbox, then remove the right cover.
Mailbox spring with string removal
1 Remove the top cover. See “Mailbox top cover removal” on page 500.
2 Remove the mailbox right cover. See “Mailbox right cover removal” on page 502.
3 Remove the spring (A) with string.
Note: Pay attention to the original position of the string. The string on the pulley is wound clockwise.
4063
Repair information
503
