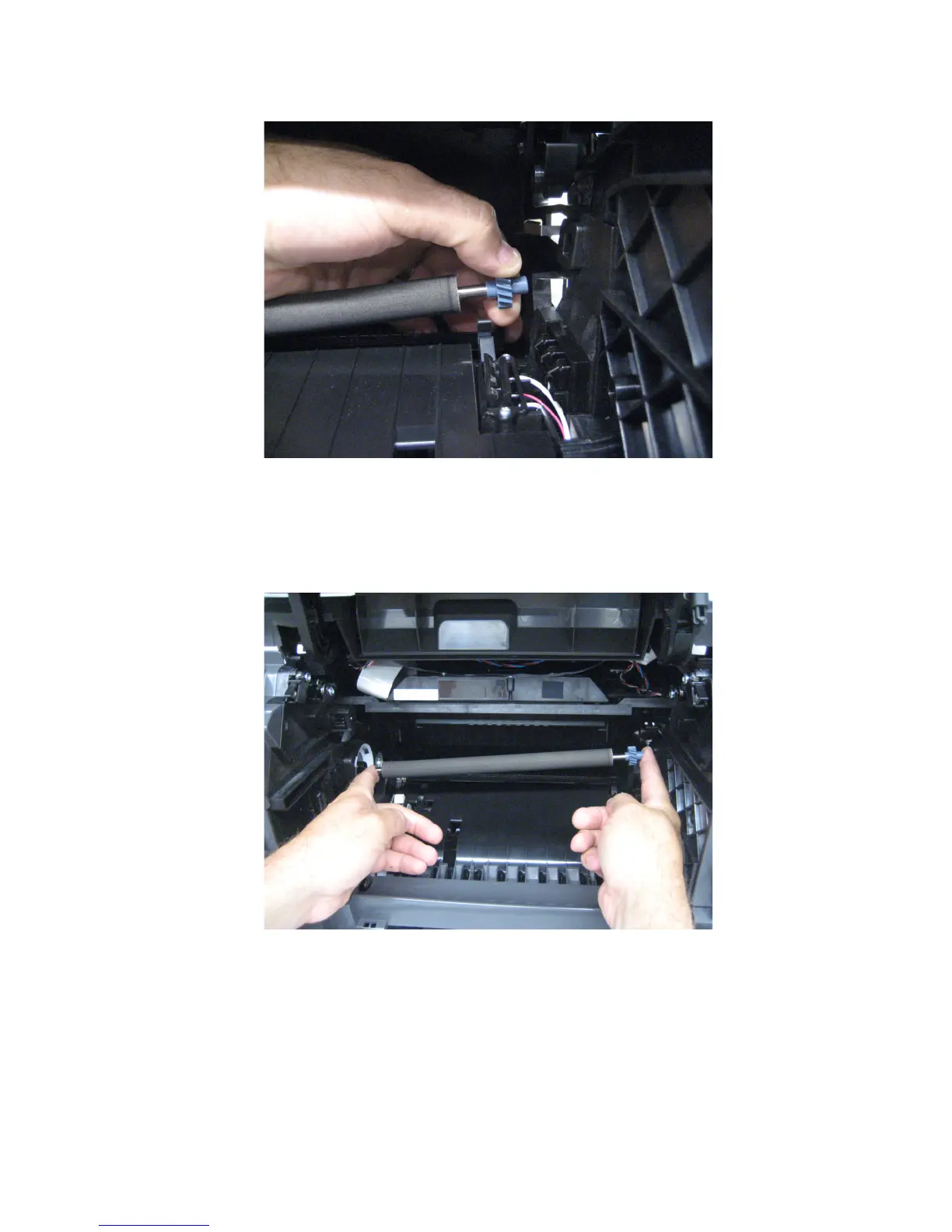

6 Gently move the transfer roller to the right to disengage it from the left transfer roller arm.
Note: When removing the transfer roller, avoid all contact with the foam surface, or print quality issues might
occur.
Installation note: When replacing the transfer roller, do not touch the foam surface.
7 Remove the transfer roller.
Base printer - rear removals
• “Duplex motor removal” on page 320
• “Fuser removal” on page 322
• “Fuser access door removal” on page 324
• “Left frame pivot removal” on page 325
4063
Repair information
319
