Lexmark MS81x User Manual

The Lexmark
TM
M5150, M5160, M5170, MS710, MS711, MS810, MS811, and MS812 printers are network‑capable laser
printers that print monochrome print jobs. All information in this service manual pertains to all models unless explicitly
noted.
The printers are available in the following models:
Model Configuration Machine type / model
number
M5150 Network, 4.3” e‑Task touch screen, duplex printer 4063‑29E
M5160 Network, 4.3” e‑Task touch screen, duplex printer 4063‑49E
M5170 Network, 7” e‑Task touch screen, duplex printer 4063‑69E
MS710dn Network, duplex printer 4063‑832
MS711dn Network, duplex printer 4063‑835
MS810n Network 4063-210
MS810dn Network, duplex printer 4063-230
MS810de Network, 4.3” e‑Task touch screen, duplex printer 4063-23E
MS811n Network 4063-410
MS811dn Network, duplex printer 4063-430
MS812dn Network, duplex printer 4063-630
MS812de Network, 7” e‑Task touch screen, duplex printer 4063-63E
The diagnostic information in this manual leads you to the correct field replaceable unit (FRU) or part. Use the error
code charts, symptom index, and service checks to determine the symptom and then repair the failure. After you
complete the repair, perform tests as needed to verify the repair.
To begin diagnosing a problem, go to “Diagnostic information” on page 35. See “Repair information” on page 255
for information about removing and reinstalling parts. See “Parts catalog” on page 540 to help identify parts.

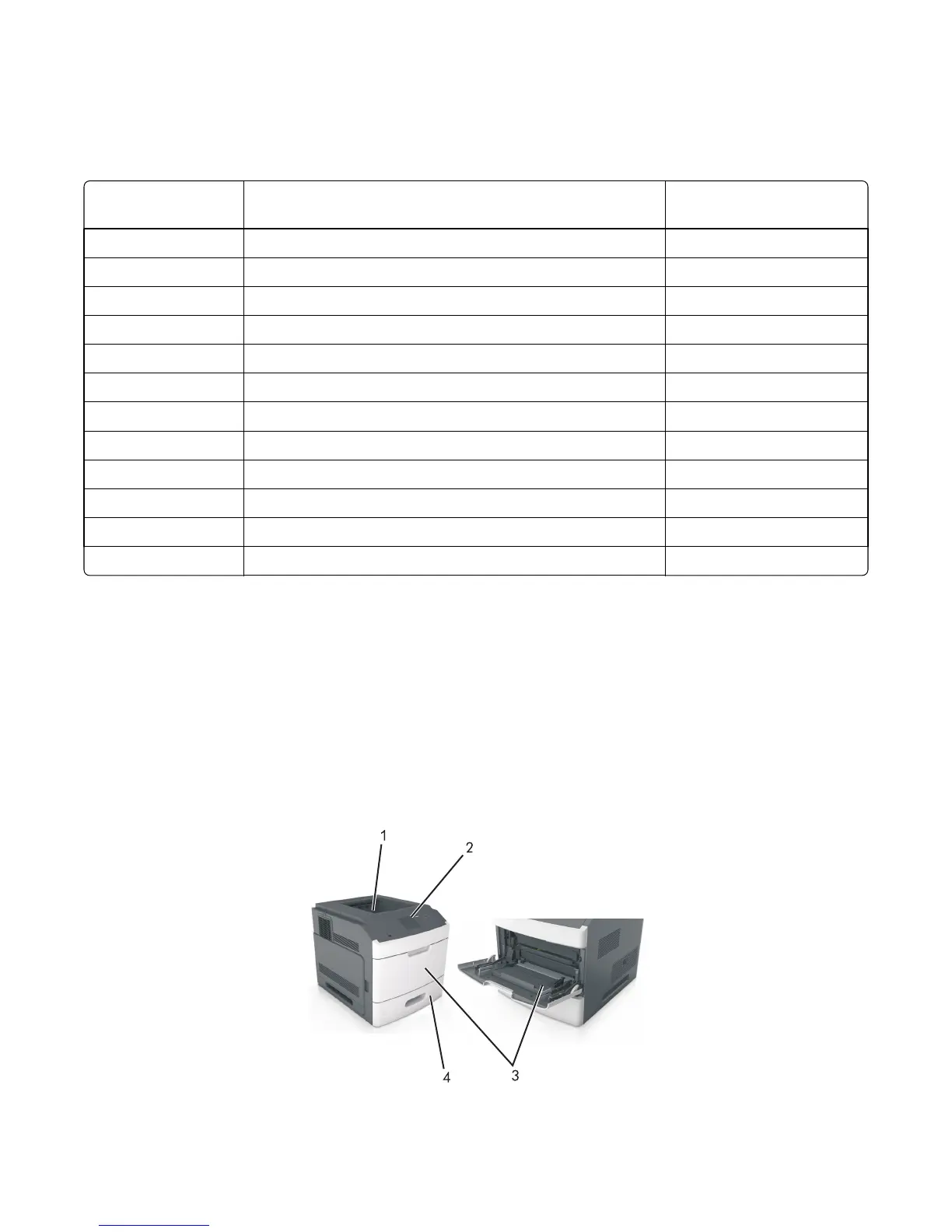

Printer configurations
Basic model
4063
General information
28
