3 Remove the media tray. See “Media tray removal” on page 339.
4 Remove the MPF tray. See “MPF tray removal” on page 308.
5 Remove the front door. See “Front door removal” on page 288.
6 Remove the toner cartridge.
7 Remove the imaging unit.
8 Remove the MPF feeder lift plate. See “MPF feeder lift plate removal” on page 302.
9 Remove the media turn guide. See “Media turn guide removal” on page 299.
10 Remove the media vertical guide. See “Media vertical guide removal” on page 300.

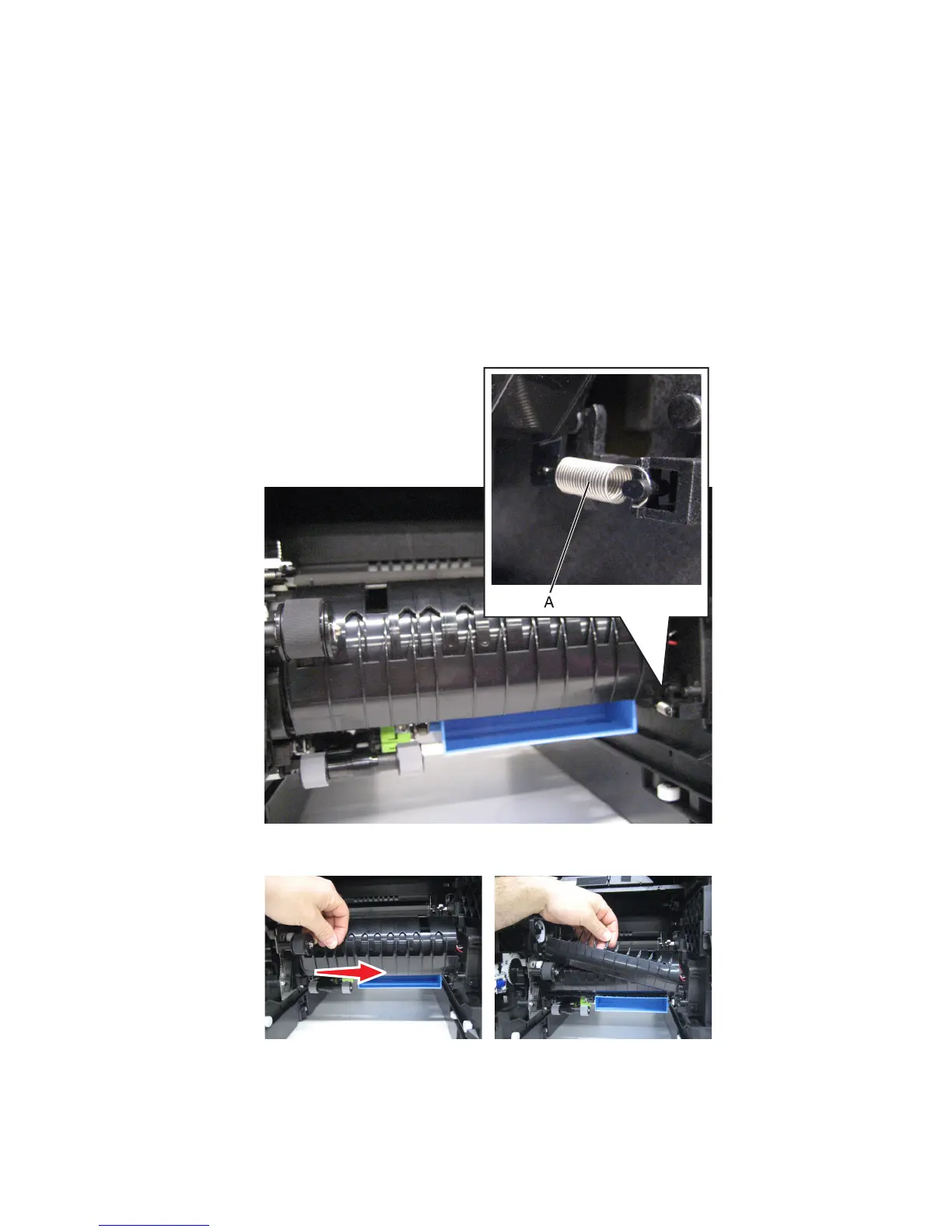

11 Remove the spring (A).
12 Move the duplex exit diverter to the right, and detach the left hinge point.
4063
Repair information
287
