Lexmark MS81x - Page 294

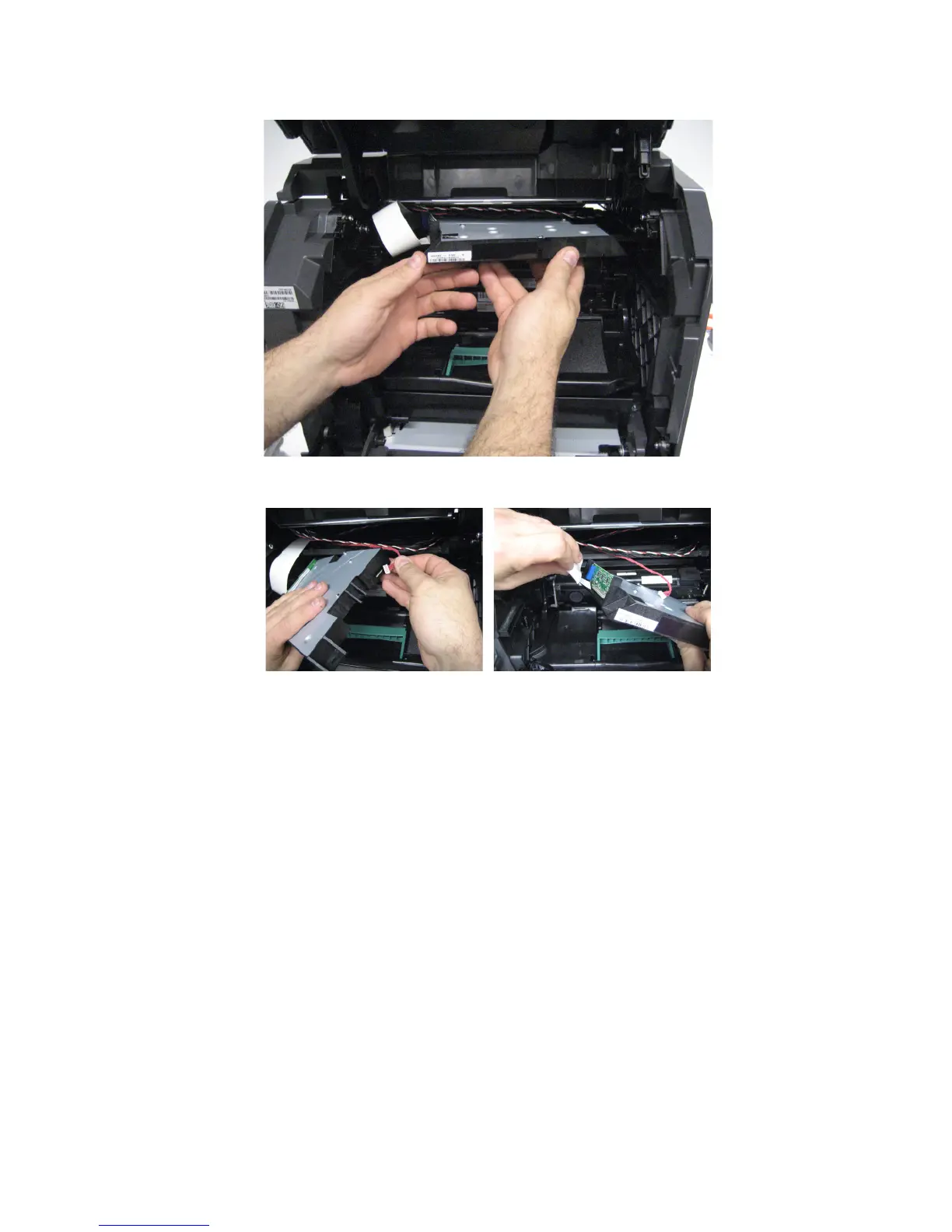

8 Gently lift and then remove the laser printhead from the machine.
9 Disconnect the two cables from the laser printhead.
Installation note: When the new laser printhead has been installed, complete the polygon printhead mechanical
registration adjustment procedure, as needed. See “Polygon printhead mechanical registration adjustment” on
page 274.
4063
Repair information
294
