6 Remove the imaging unit.
7 Remove the MPF feeder lift plate. See “MPF feeder lift plate removal” on page 302.
8 Remove the media turn guide. See “Media turn guide removal” on page 299.
9 Remove the media vertical guide. See “Media vertical guide removal” on page 300.
10 Remove the duplex exit diverter. See “Duplex exit diverter removal” on page 286.
11 Remove the inner guide deflector. See “Inner guide deflector removal” on page 289.

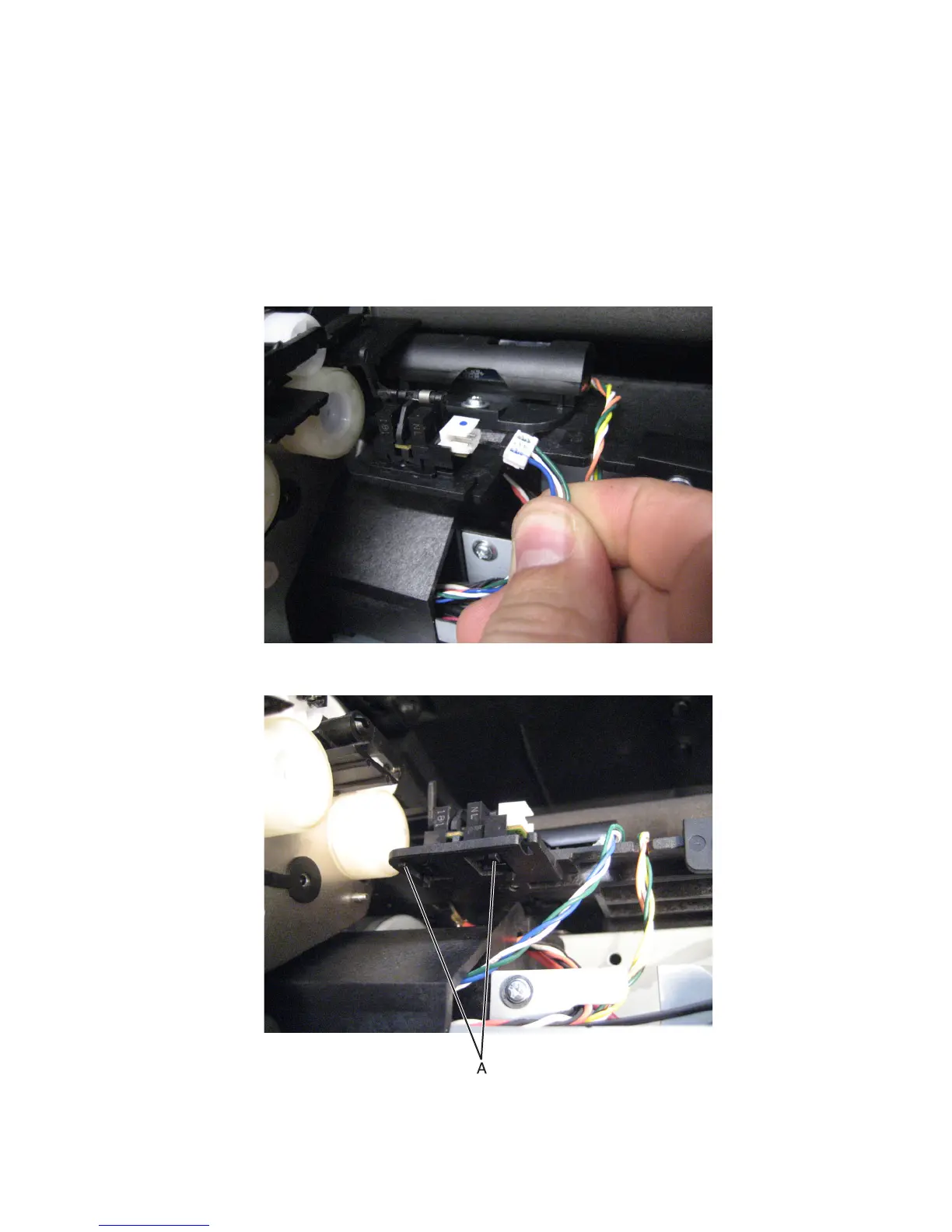

12 Disconnect the cable from the sensor (input).
13 Release the hooks (A) securing the sensor (input) to the machine.
14 Remove the sensor (input).
