Lexmark MS81x - Page 389

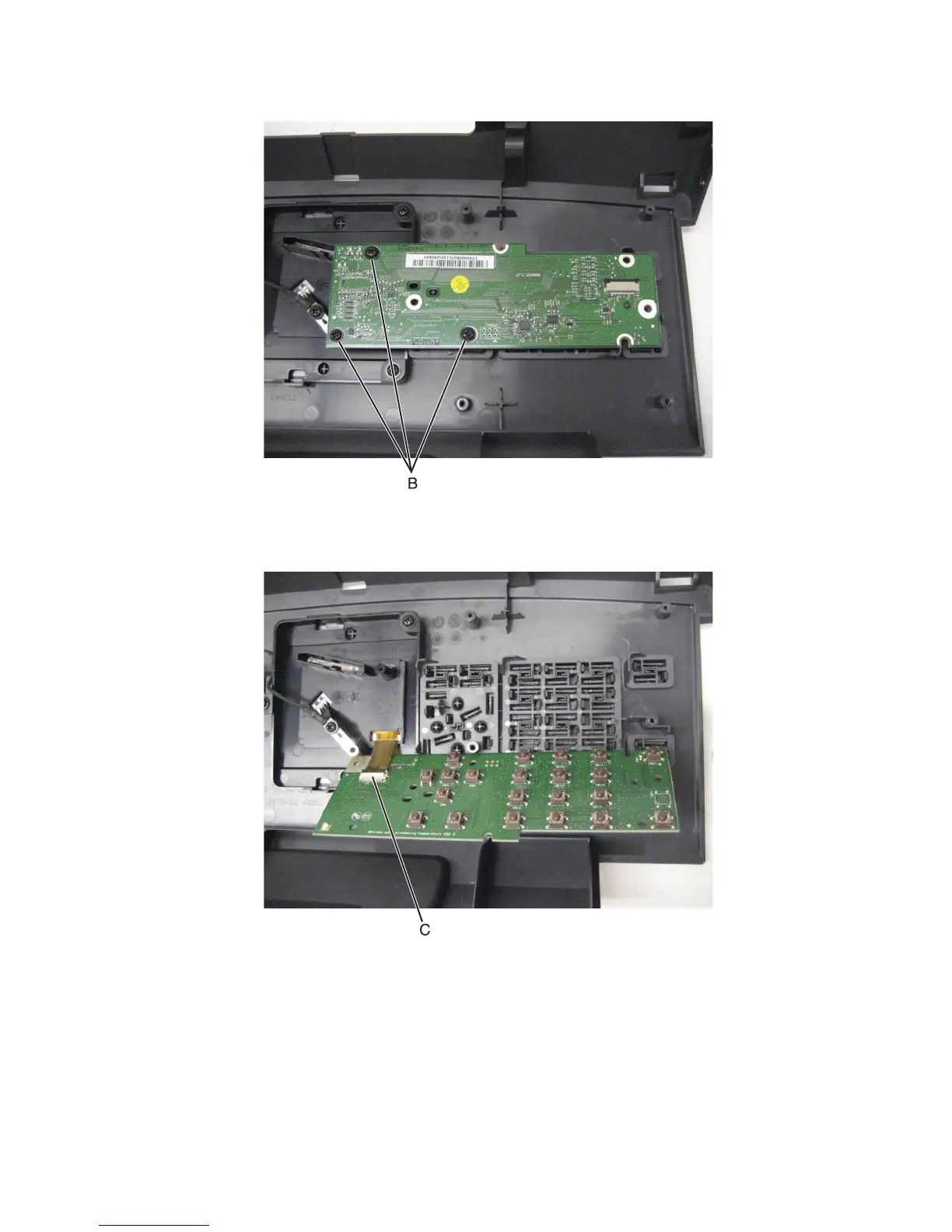

7 Remove the three screws (B) securing the control panel board (7” tilting display) to the control panel.
8 Gently detach the control panel board.
9 Disconnect the display ribbon cable (C) from the control panel board.
4063
Repair information
389
