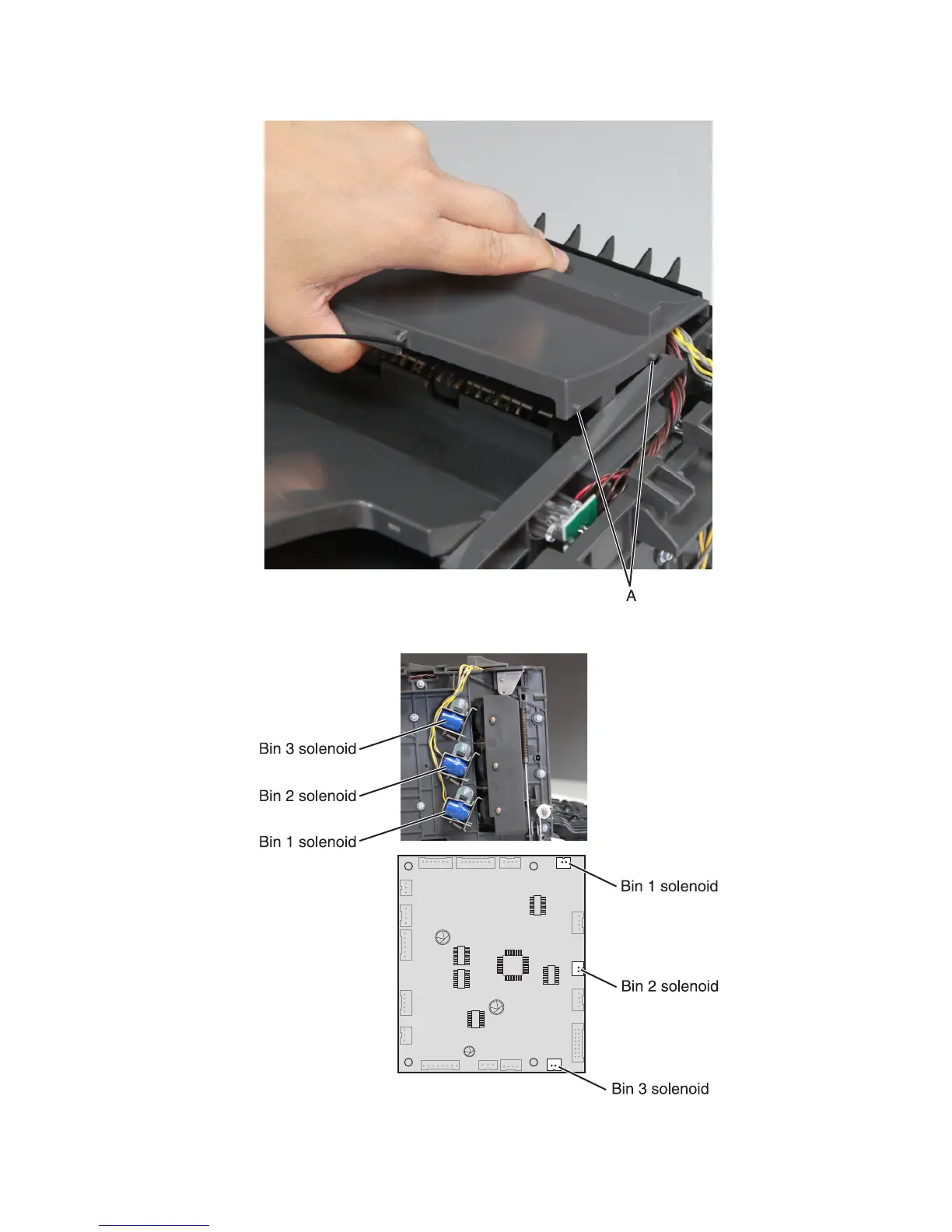

4 Lift the middle portion of the cover to release the tabs (A), then remove the cover.
5 Disconnect the solenoid cable (J2A, J2B, or J2C) from the controller PCBA.
4063
Repair information
505
