Learning Basic Features

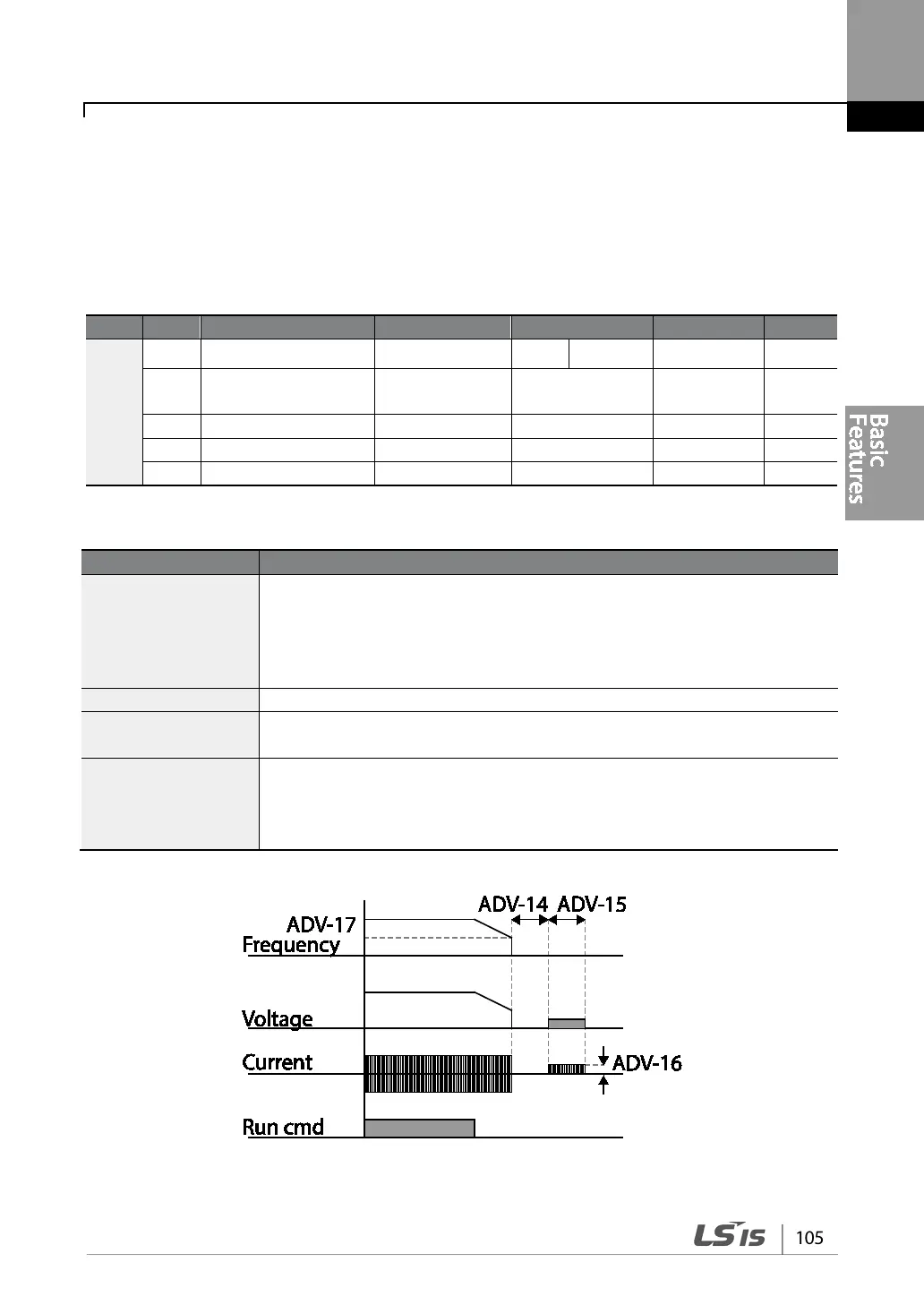

4.17.2 Stop After DC Braking
When the operation frequency reaches the set value during deceleration (DC braking frequency),
the inverter stops the motor by supplying DC power to the motor. With a stop command input,
the inverter begins decelerating the motor. When the frequency reaches the DC braking
frequency set at ADV-17, the inverter supplies DC voltage to the motor and stops it.
Group
Code
Name
LCD Display
Parameter Setting
Setting Range
Unit
ADV
08 Stop mode Stop Mode 0 Dec 0–4 -
14
Output block time
before braking
DC-Block Time 0.10 0.00–60.00 sec
15
DC braking time
DC-Brake Time
1.00
0–60
sec
16
DC braking amount
DC-Brake Level
50
0–200
%
17
DC braking frequency
DC-Brake Freq
5.00
0.00–60.00
Hz
DC Braking After Stop Setting Details
Code
Description
ADV-14 DC-Block Time
Set the time to block the inverter output before DC braking. If the inertia of
the load is great, or if DC braking frequency (ADV-17) is set too high, a fault trip
may occur due to overcurrent conditions when the inverter supplies DC
voltage to the motor. Prevent overcurrent fault trips by adjusting the output
block time before DC braking.
ADV-15 DC-Brake Time
Set the time duration for the DC voltage supply to the motor.
ADV-16 DC-Brake
Level
Set the amount of DC braking to apply. The parameter setting is based on the
rated current of the motor.
ADV-17 DC-Brake Freq
Set the frequency to start DC braking. When the frequency is reached, the
inverter starts deceleration. If the dwell frequency is set lower than the DC
braking frequency, dwell operation will not work and DC braking will start
instead.
