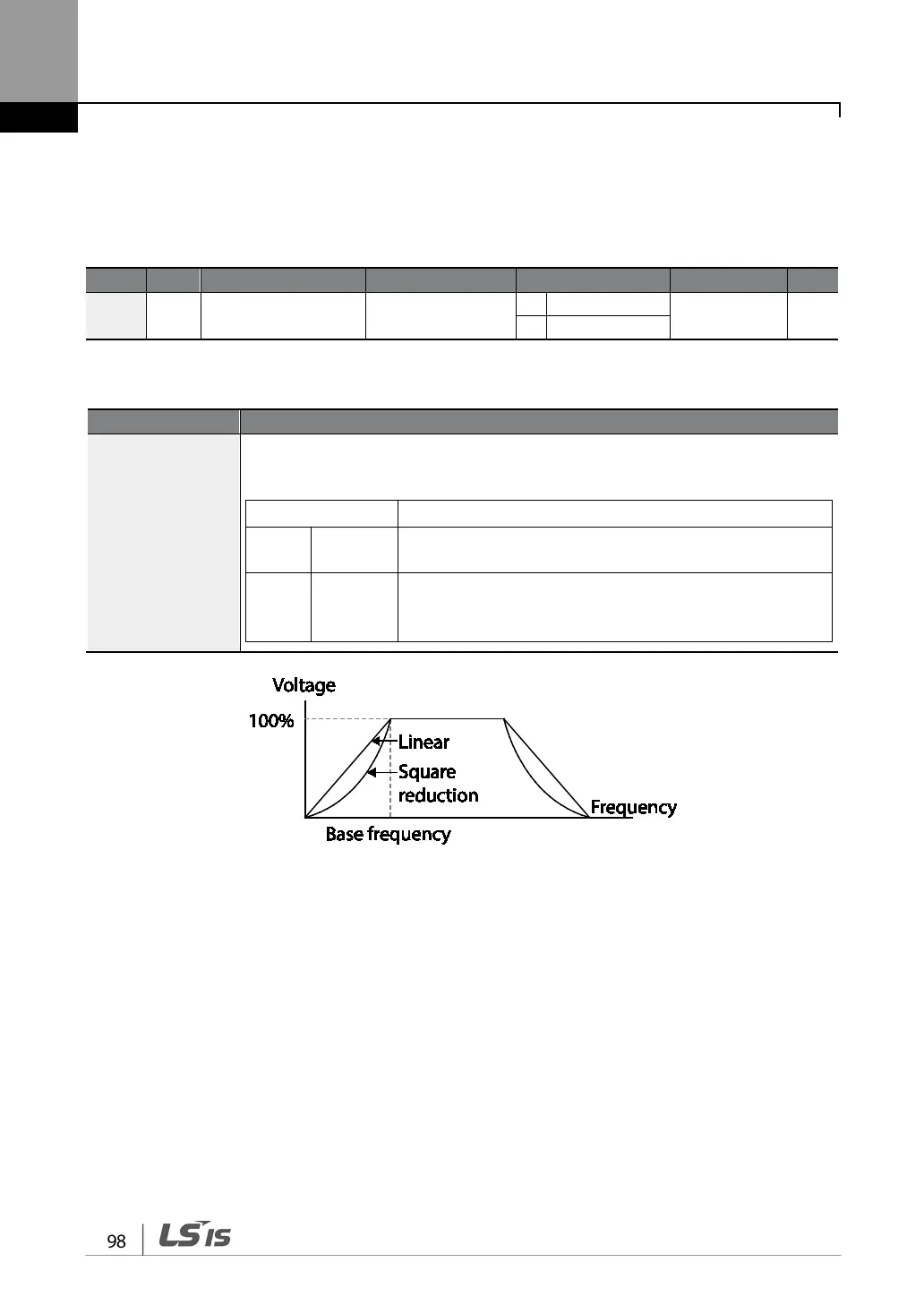

98
Learning Basic Features
4.13.2 Square Reduction V/F pattern Operation
Square reduction V/F pattern is ideal for loads such as fans and pumps. It provides non-linear
acceleration and deceleration patterns to sustain torque throughout the whole frequency range.
Group
Code
Name
LCD Display
Parameter Setting
Setting Range
Unit
BAS 07 V/F pattern V/F Pattern
1
Square
0–3 -
3
Square2
Square Reduction V/F pattern Operation - Setting Details
Code
Description
BAS-07 V/F Pattern
Sets the parameter value to 1(Square) or 3(Square2) according to the loads start
characteristics.
Setting
Function
1
Square
The inverter produces output voltage proportional to 1.5
square of the operation frequency.
3
Square2
The inverter produces output voltage proportional to 2
square of the operation frequency. This setup is ideal for
variable torque loads such as fans or pumps.
