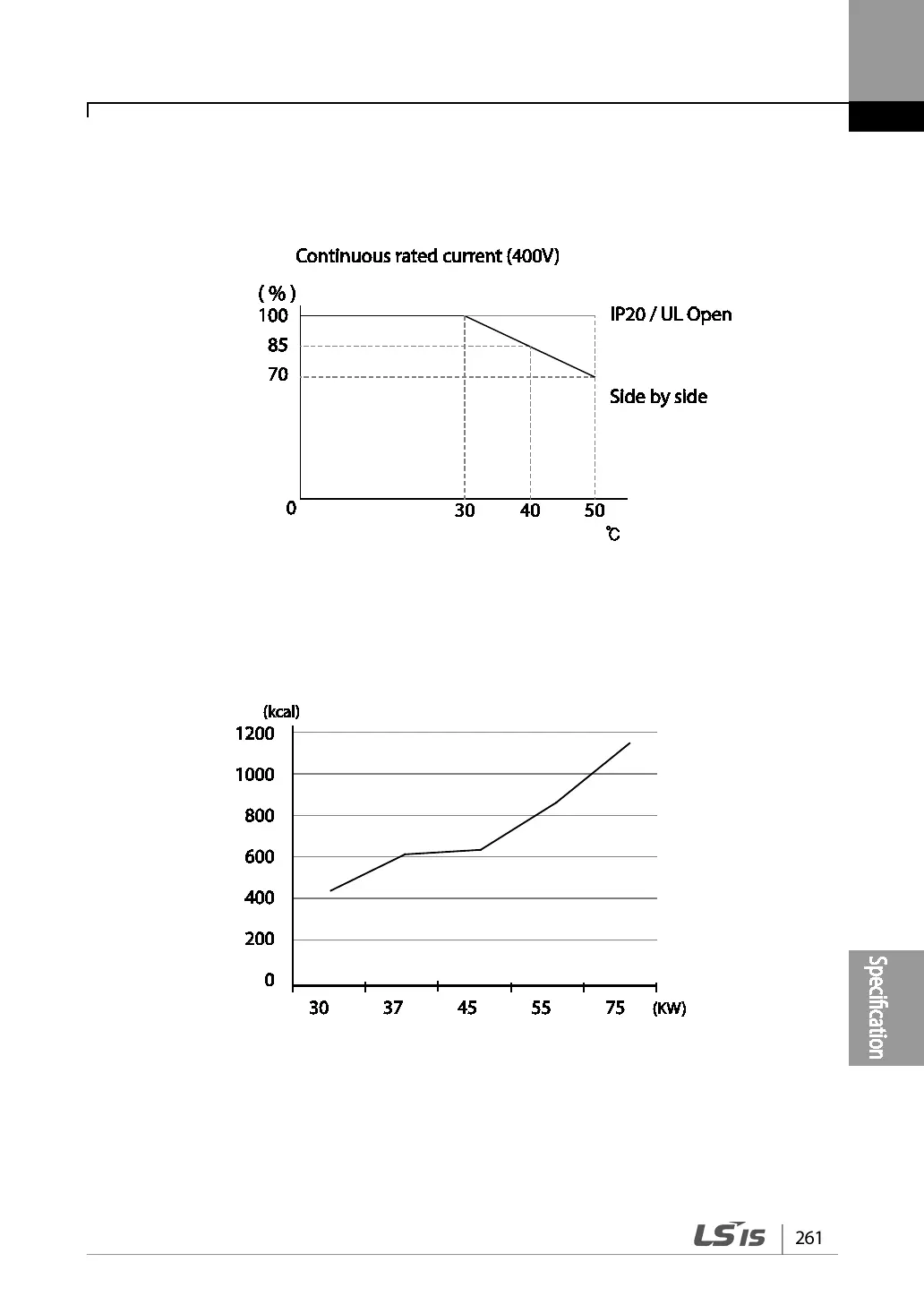

Derating by Ambient Temperature and Installation Type
The constant-rated current of the inverter is limited based on the ambient temperature and
installation type. Refer to the following graph.
9.9 Heat Emmission
The following graph shows the inverters’ heat emission characteristics (by product capacity).
Heat emission data is based on operations with default carrier frequencysettings, under normal
operating conditions.
