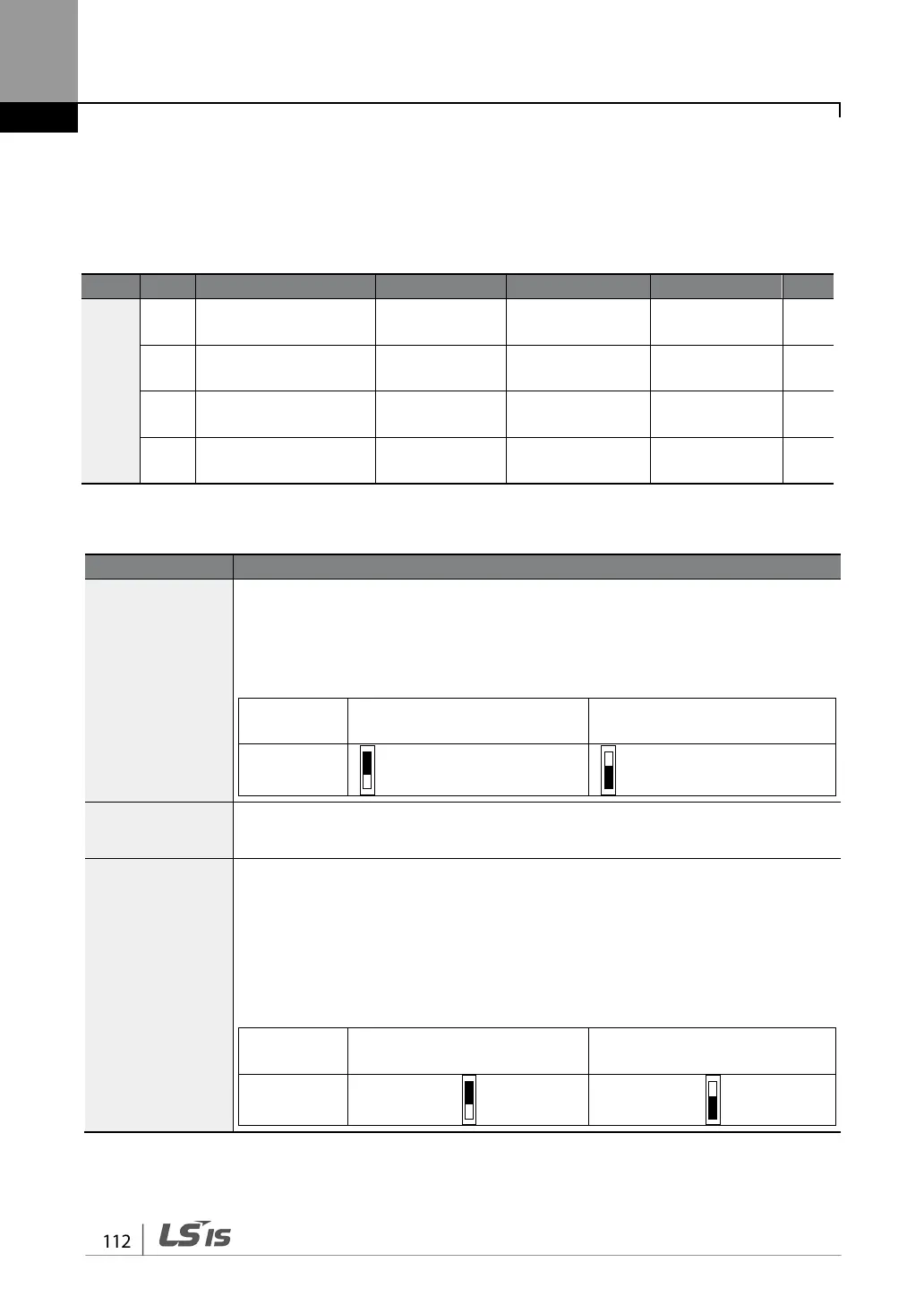

112
Learning Basic Features
4.20 Multi-function Input Terminal Control
Filter time constants and the type of multi-function input terminals can be configured to improve
the response of input terminals
Group
Code
Name
LCD Display
Parameter Setting
Setting Range
Unit
IN
85
Multi-function input
terminal On filter
DI On Delay 10
010000
ms
86
Multi-function input
terminal Off filter
DI Off Delay 3
010000
ms
87
Multi-function input
terminal selection
DI NC/NO Sel 000 0000* - -
90
Multi-function input
terminal status
DI Status 000 0000* - -
Multi-function Input Terminal Control Setting Details
Code
Description
IN-84 DI Delay Sel
Select whether or not to activate the time values set at IN-85 and IN-86. If
deactivated, the time values are set to the default values at IN-85 and IN-86. If
activated, the set time values at IN-85 and IN-86 are set to the corresponding
terminals.
Type
B terminal status (Normally
Closed)
A terminal status (Normally
Open)
LCD keypad
IN-85 DI On Delay,
IN-86 DI Off Delay
If the input terminals state is not changed during the set time, when the terminal
receives an input, it is recognized as On or Off.
IN-87 DI NC/NO
Sel
Select terminal contact types for each input terminal. The position of the
indicator light corresponds to the segment that is on as shown in the table below.
With the bottom segment on, it indicates that the terminal is configured as a A
terminal (Normally Open) contact. With the top segment on, it indicates that the
terminal is configured as a B terminal (Normally Closed) contact. Terminals are
numbered P1
P7, from right to left.
Type
B terminal status (Normally
Closed)
A terminal status (Normally
Open)
LCD keypad
