LSIS S100 - Stop Mode Setting; Deceleration Stop

104
Learning Basic Features
The amount of DC braking required is based on the motor’s rated current. Do not use DC braking
resistance values that can cause current draw to exceed the rated current of the inverter. If the DC
braking resistance is too high or brake time is too long, the motor may overheat or be damaged.
4.17 Stop Mode Setting
Select a stop mode to stop the inverter operation.
4.17.1 Deceleration Stop

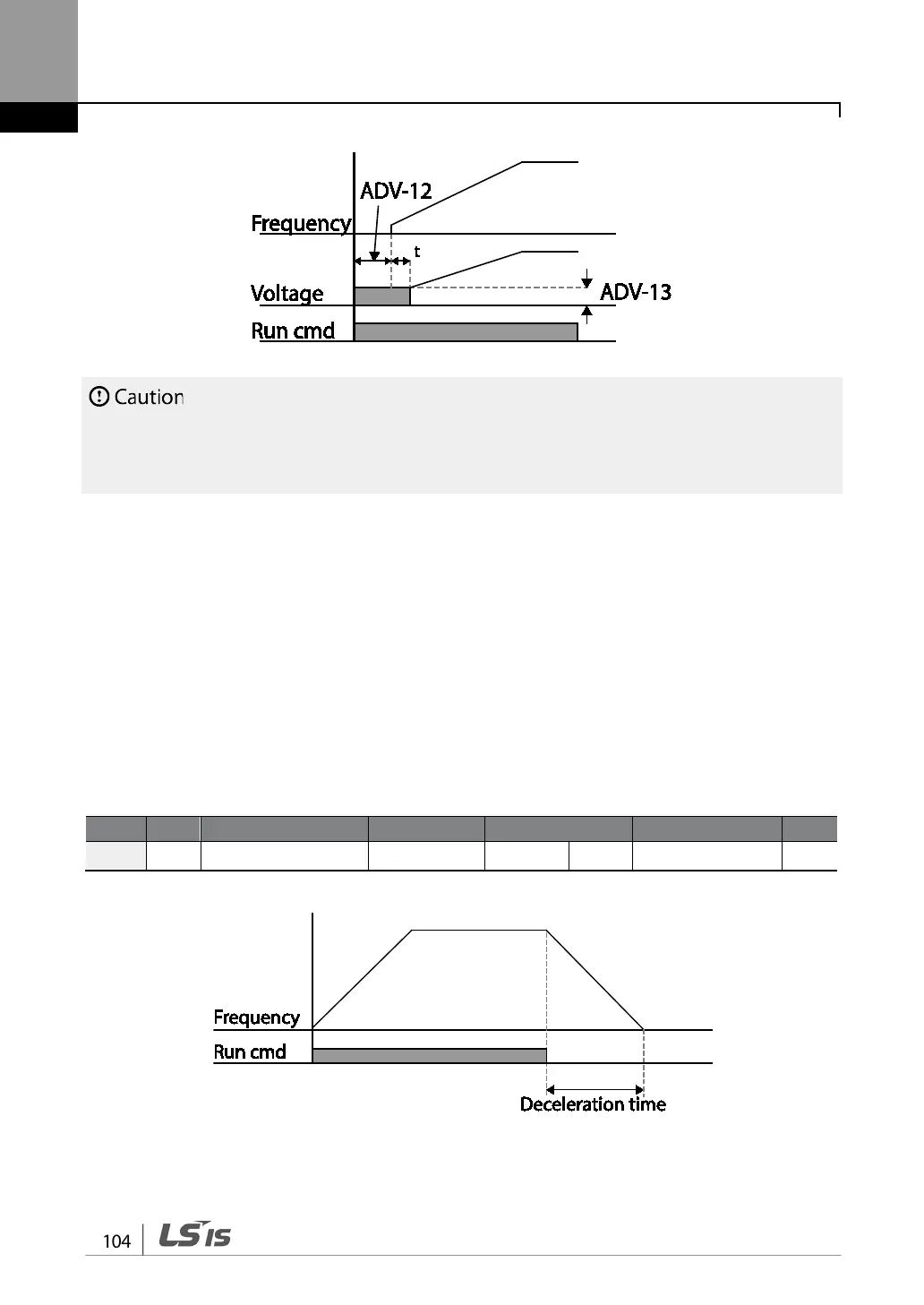

Deceleration stop is a general stop mode. If there are no extra settings applied, the motor
decelerates down to 0 Hz and stops, as shown in the figure below.
Group
Code
Name
LCD Display
Parameter Setting
Setting Range
Unit
ADV 08 Stop mode Stop Mode 0 Dec
0–4
-
