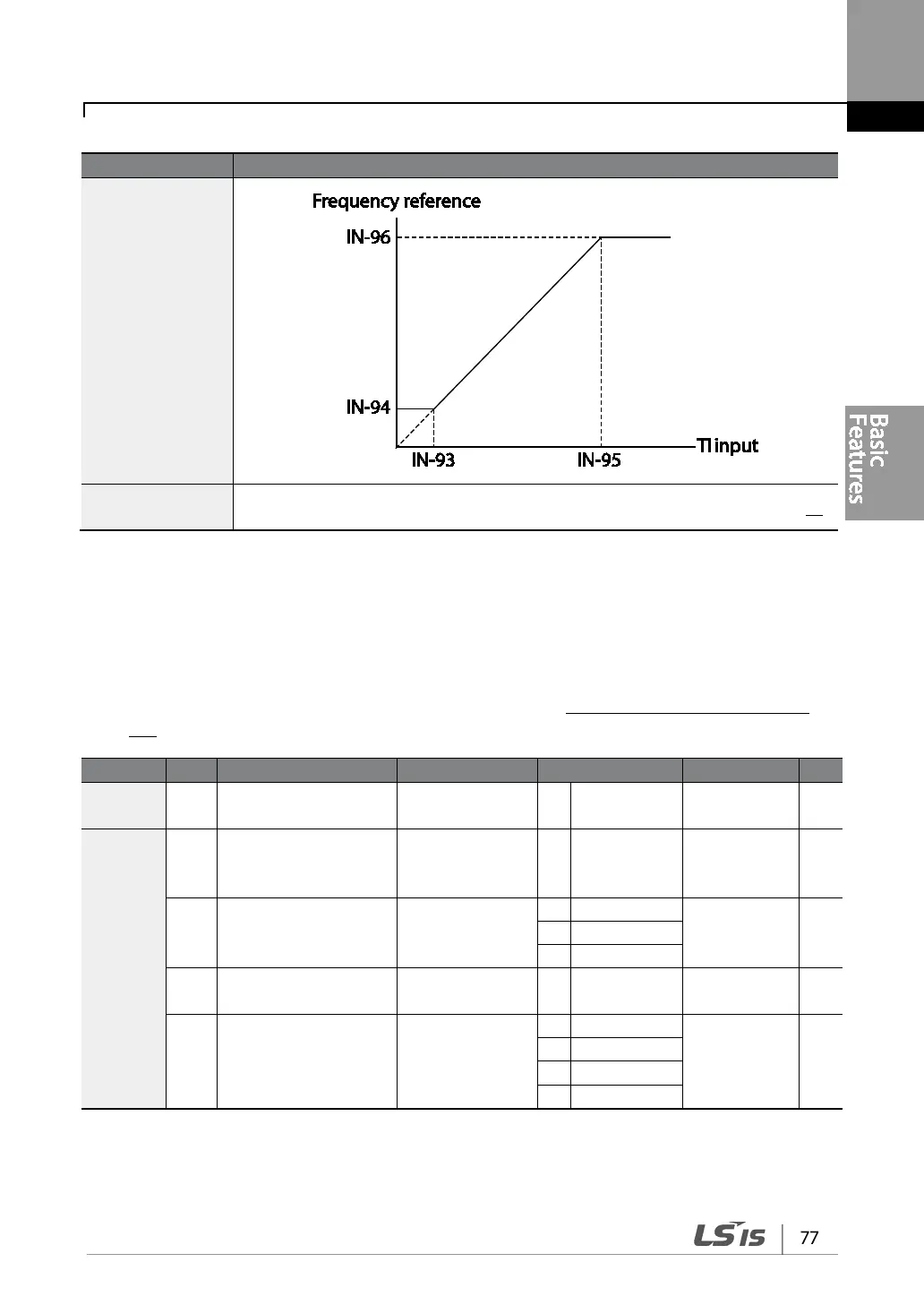

Learning Basic Features
Code
Description
IN-97 TI Inverting–
IN-98 TI Quantizing
Identical to IN-16–17 (refer to IN-16 V1 Inverting/IN-17. V1 Quantizing on page 69).
4.1.6 Setting a Frequency Reference via RS-485 Communication
Control the inverter with upper-level controllers, such as PCs or PLCs, via RS-485 communication.
Set the 07 (Frequency reference source) code in the DRV group to 6 (Int 485) and use the RS-485
signal input terminals (S+/S-/SG) for communication. Refer to 5 RS-485 Communication Features
on
page 125.
Group
Code
Name
LCD Display
Parameter Setting
Setting Range
Unit
DRV 07
Frequency reference
source
Freq Ref Src 6 Int 485 0–12 -
COM
01
Integrated RS-485
communication
inverter ID
Int485 St ID - 1 1–250 -
02
Integrated
communication
protocol
Int485 Proto
0
ModBus RTU
0–2
-
1
Reserved
2
LS Inv 485
03
Integrated
communication speed
Int485 BaudR 3 9600 bps 0–7 -
04
Integrated
communication frame
configuration
Int485 Mode
0
D8/PN/S1
0–3 -
1
D8/PN/S2
2
D8/PE/S1
3
D8/PO/S1
