128

RS-485 Communication Features

Code

Description

D8/PN/S2

8-bit data / no parity check / 2 stop bits

D8/PE/S1

8-bit data / even parity / 1 stop bit

D8/PO/S1

8-bit data / odd parity / 1 stop bit

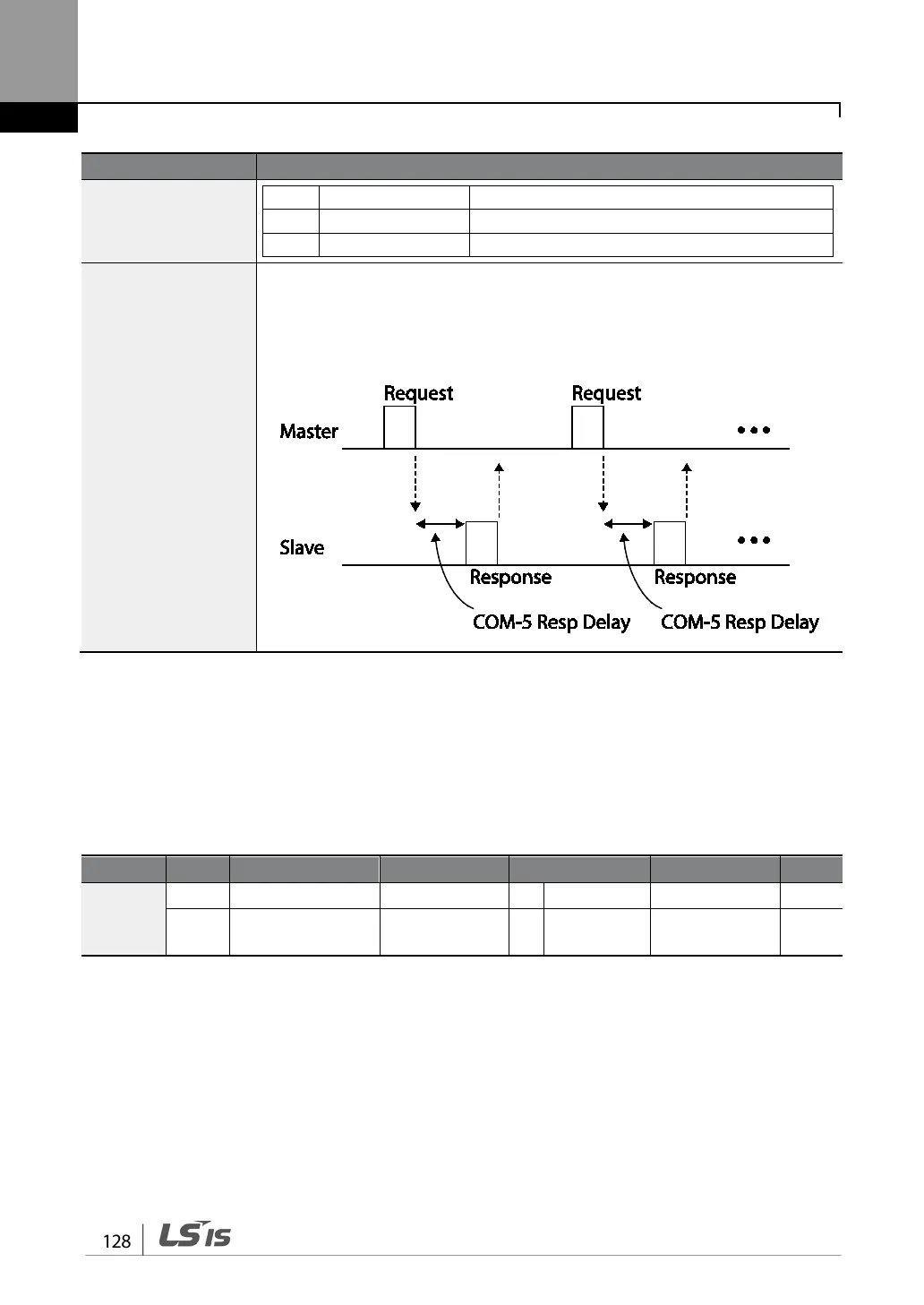

COM-05 Resp Delay

Set the response time for the slave (inverter) to react to the request from the

master. Response time is used in a system where the slave device response is

too fast for the master device to process. Set this code to an appropriate value

for smooth master-slave communication.

5.2.3 Setting Operation Command and Frequency

To select the built-in RS485 communication as the source of command, set the DRV-06 code to 3

(Int485). Then, set common area parameters for the operation command and frequency via

communication.

Group

Code

Name

LCD Display

Parameter Setting

Setting range

Unit

DRV

Command source

Cmd Source

Int 485

0-5

Frequency setting

method

Freq Ref Src 6 Int 485 0-12 -
