LSIS S100 User Manual

75
Learning Basic Features
Code
Description

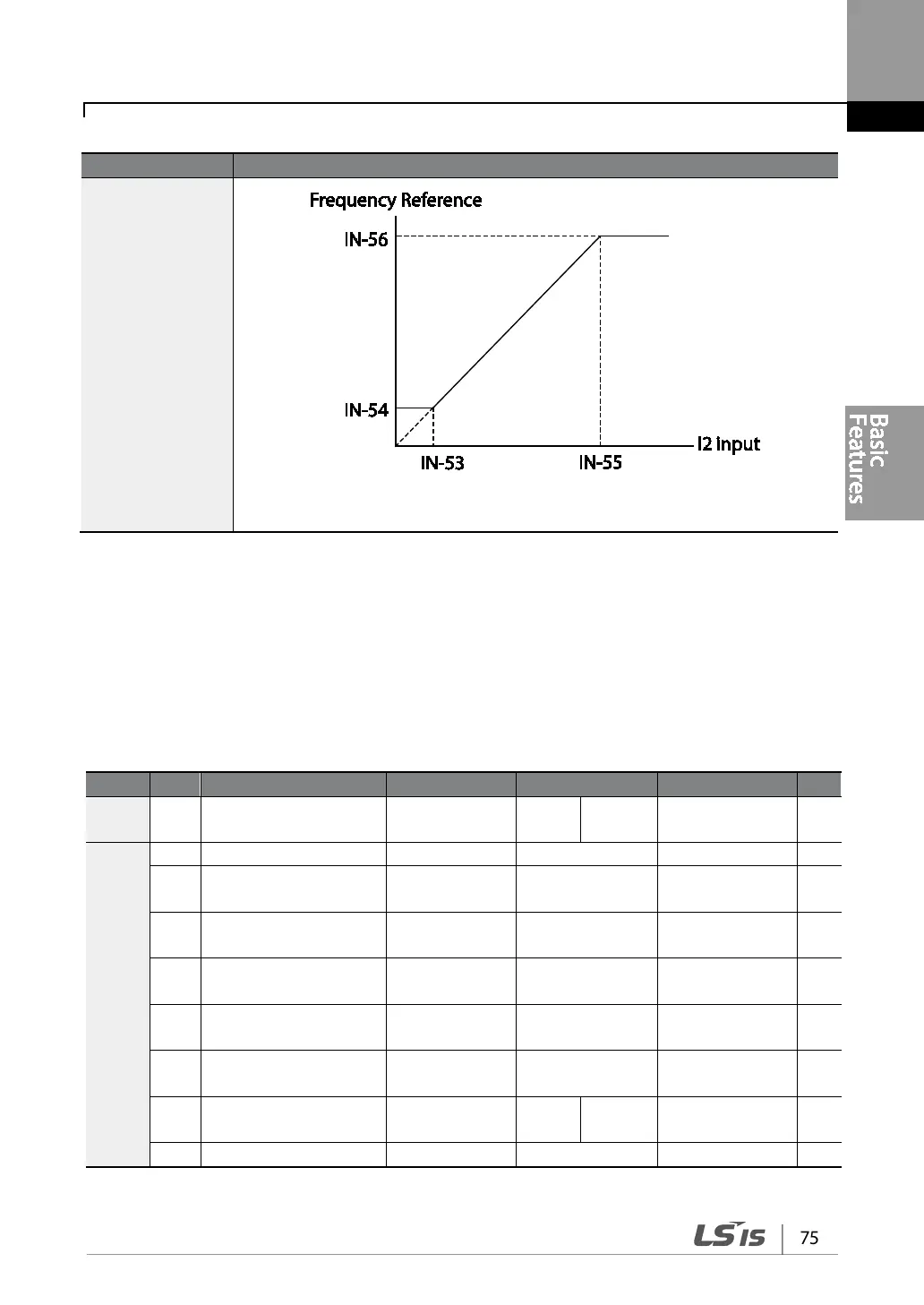

[Gradient and off-set configuration based on output frequency]
4.1.4 Setting a Frequency Reference with Input Voltage (Terminal I2)
Set and modify a frequency reference using input voltage at I2 (V2) terminal by setting SW2 to V2.
Set the Frq (Frequency reference source) code in the DRV group to 4 (V2) and apply 0–12V input
voltage to I2 (=V2, Analog current/voltage input terminal). Codes IN-35–47 will not be displayed
when I2 is set to receive current input (07 code parameter is set to 5).
Group
Code
Name
LCD Display
Parameter Setting
Setting Range
Unit
DRV 07
Frequency reference
source
Freq Ref Src 4 V2 0–12 -
IN
35
V2 input display
V2 Monitor
0.00
0.00–12.00
V
37
V2 input filter time
constant
V2 Filter 10 0–10000 ms
38
Minimum V2 input
voltage
V2 Volt x1 0.00 0.00–10.00 V
39
Output% at minimum
V2 voltage
V2 Perc y1 0.00 0.00–100.00 %
40
Maximum V2 input
voltage
V2 Volt x2 10.00 0.00–10.00 V
41
Output% at maximum
V2 voltage
V2 Perc y2 100.00 0.00–100.00 %
46
Invert V2 rotational
direction
V2 Inverting 0 No
0–1
-
47
V2 quantizing level
V2 Quantizing
0.04
0.00*, 0.04–10.00
%
* Quantizing is disabled if ‘0’ is selected.
