Learning to Perform Basic Operations
3.2.5 Parameter settings
Parameter settings available in Monitor mode

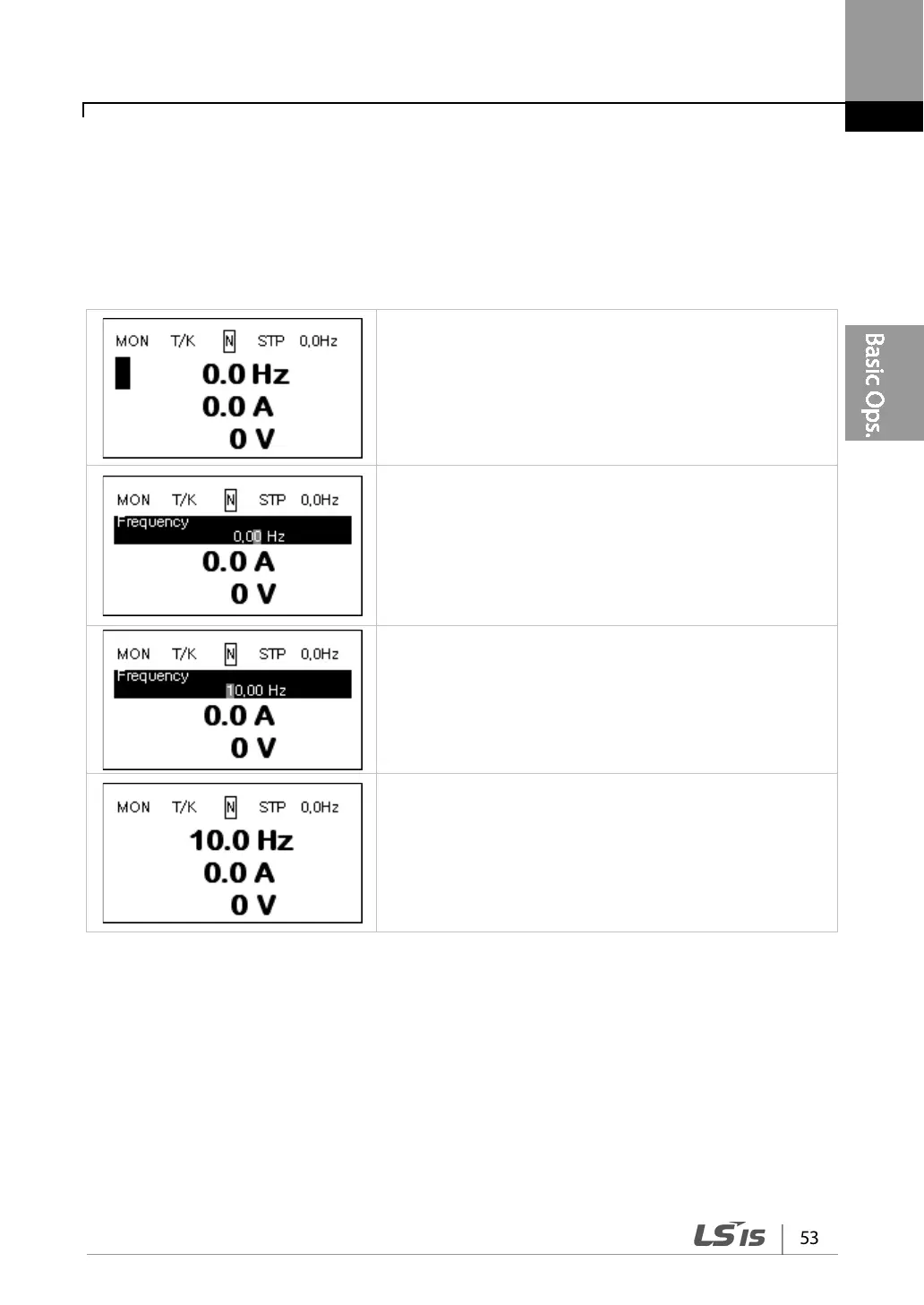

The S100 inverter allows basic parameters to be modified in Monitor mode. The following
example shows how to set the frequency.
• Make sure that the cursor is at the frequency reference
item and that the frequency setting is set to ‘Keypad’ in
DRV-09.
• Press the [PROG/ENT] key.
• When the cursor is on the frequency reference item,
detailed information is displayed and the cursor flashes
on the input line.
• Press the shift key to go to the desired frequency.
• Press the [▲] key to set the frequency to 10 Hz.
• Press the [PROG/ENT] key.
• The frequency is set to 10 Hz.
