Chapter 5 Positioning Instructions
5 - 33

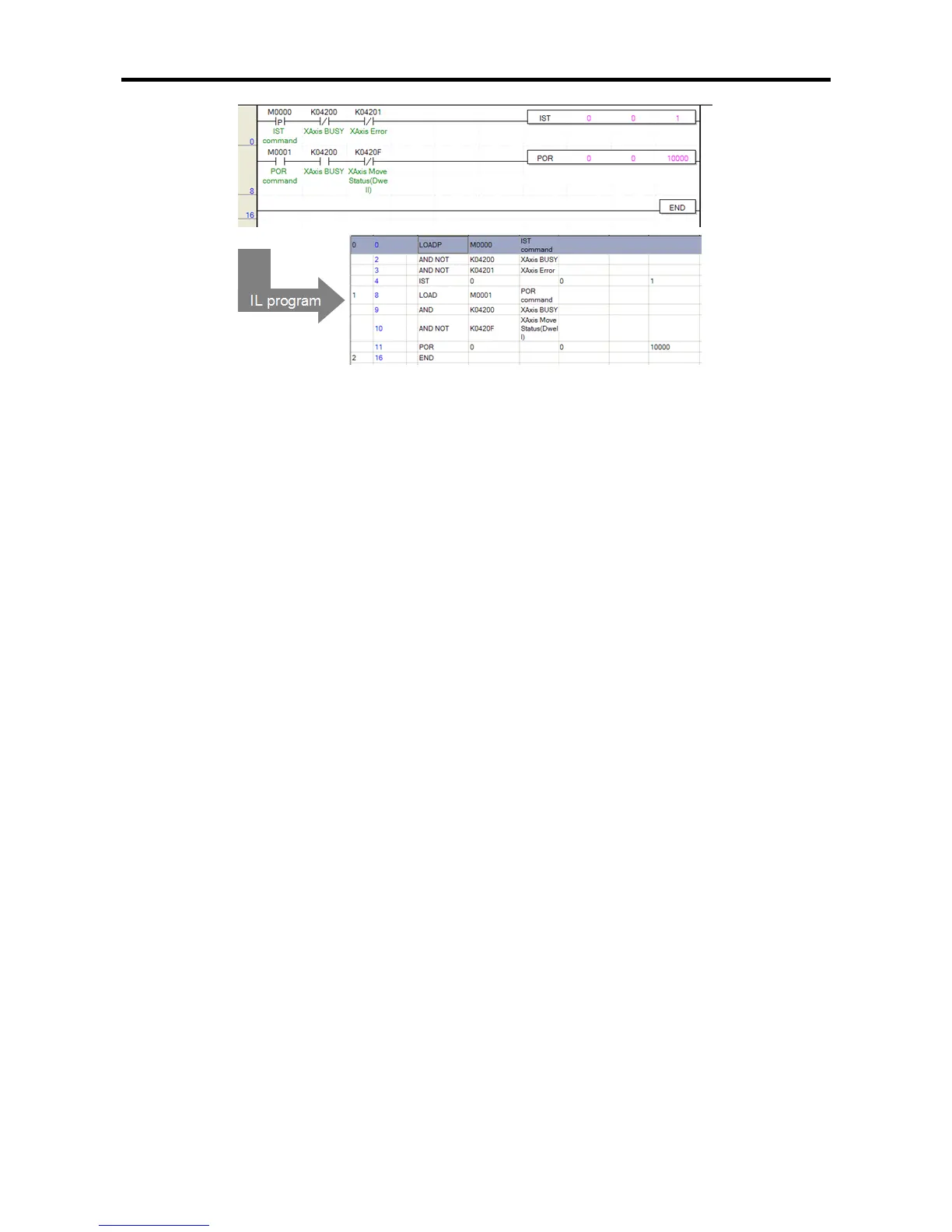

(b) Operation of the Program
The positioning axis X is indirectly started with operation step 1 when there is the rising edge of
M0000 used as the indirect starting instruction signal.
If there is the rising edge of M0001 used as the instruction signal of the position override instruction
before the current position during operation reaches 100,000 [Pulse], operation continues by
changing the target position of the currently operating step into 100,000. (Note that the value of the
target position of No. 1 step set in the positioning parameter is not changed)
If the position override instruction is executed when the current position has passed 100,000[Pulse],
it is decelerated and stops.
If the position override instruction is executed during dwell operation, error code 362 is issued. To
prevent this, make the program by connecting the axis X dwell flag to the starting contact point
with the normally closed contact point (contact point B).
