Chapter 6 Positioning Monitoring Package
6-1
Chapter 6 Positioning Monitoring Package
6.1 Introduction to Positioning Monitoring Package
You can monitor the status of XGB PLC built-in positioning and carry out test operation without the program by
changing the parameters and operation data if you use the XGB monitoring package.
6.1.1 Introduction of Positioning Monitoring Package
• You can easily and conveniently monitor the current positioning operation or change the parameter or
operation data by using the following positioning monitoring package with XGB PLC connected to XG5000.
• If you use the positioning monitoring package, you can easily carry out test operation without the program,
adjust the parameter and operation data, and permanently save it in PLC after the adjustment.
• This chapter describes how to run the XGB positioning monitoring package.
• XGB positioning monitoring package is available with over XG5000 V1.2 (over V2.2 for XBC, over V3.0 for
XEC), and it is carried out in the following sequence. (This manual has been made by using XG5000
V2.2)
(1) Opening the Monitoring Package

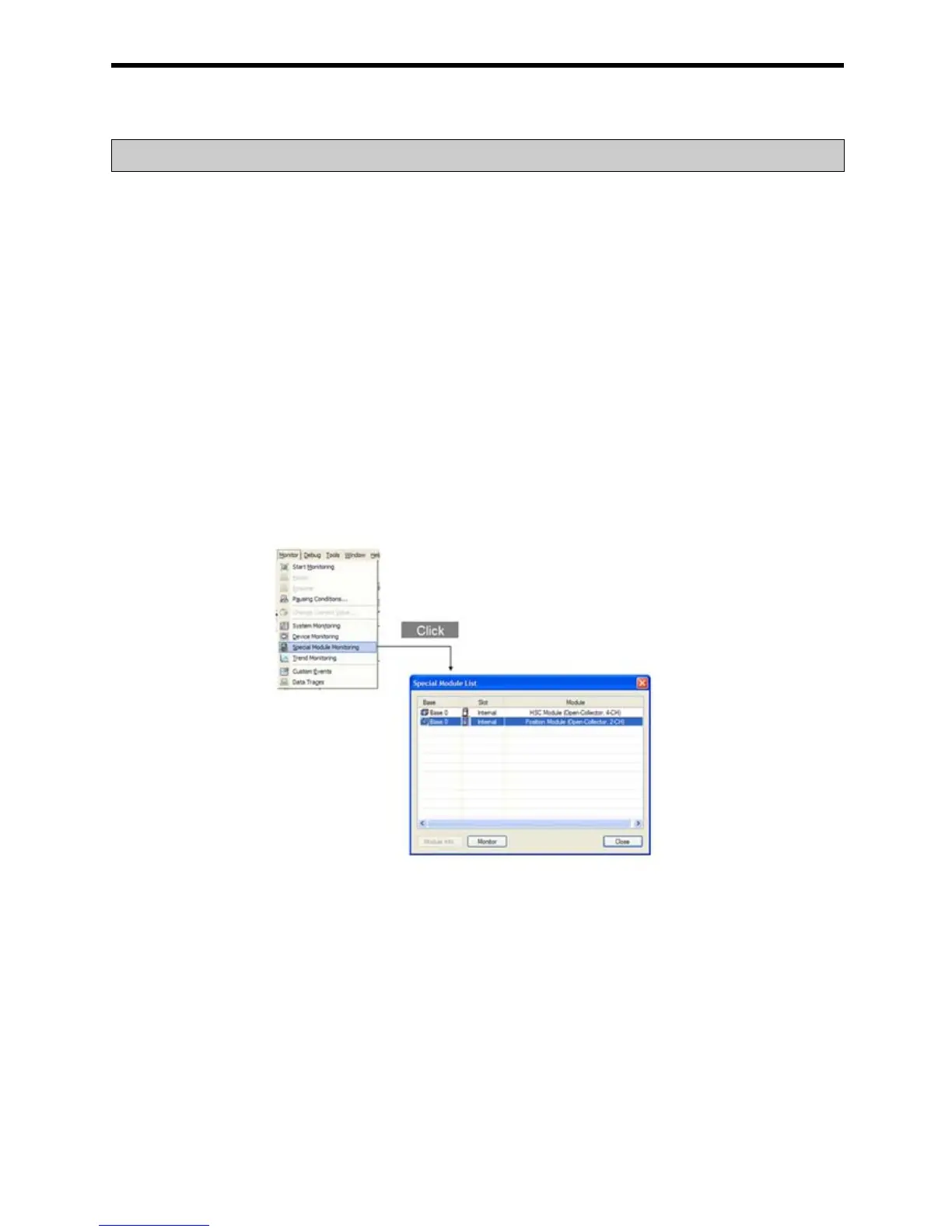

• Select ‘Monitoring’ Æ ‘Special Module Monitoring’ with XGB PLC connected to XG5000, the special
module monitoring display is invoked as follows.
(If XGB is not connected to XG5000, ‘Special Module Monitoring’ is inactivated in the ‘Monitoring’
menu. Thus make sure that XGB is connected to XG5000 before using positioning monitoring.)
• When you want to carry out the positioning monitoring package, double click on the positioning
module or select the positioning module, and then click on the ‘Monitoring’ button at the bottom. And
the positioning monitoring package is started as follows.
To Next Page
