Loading...What to do if PWR LED is off on LSIS Controller?
If the PWR LED is off on your LSIS Controller, first verify that the rated voltage is being supplied to the PLC. If the voltage supply is normal, it may indicate a hardware problem. Contact an A/S office or customer center for assistance.
What to do if PWR LED is flashing on LSIS Controller?
If the PWR LED is flashing on your LSIS Controller, check the voltage and current of the power supply. If the problem persists, remove the input and output lines, re-supply power, and check again. If the problem continues, contact the A/S office or customer center.
How to fix ERR LED flashing quickly on LSIS XEC-DP64H Controller?
When the ERR LED is flashing quickly on the LSIS Controller, it indicates a serious problem that prevents operation. Access the XGB with XG5000, go to ‘Online’ -> ‘PLC error/warning’, then check the error and warning messages, and resolve the underlying cause.
Why is RUN LED off on LSIS XEC-DP64H Controller?
If the RUN LED is off on your LSIS Controller, it means that the program has stopped running. Check the ERR LED to determine if the program stopped due to an error or because the operation mode is set to STOP.
What to do if Positioning Output LED is off on LSIS XEC-DP64H?
If the Positioning Output LED is off on the LSIS Controller, it indicates that the pulse is not being output normally, or the positioning operation has finished normally. If the operation finished normally, start the next operation instruction. If there is an error, check the positioning error code and resolve the cause.
What does it mean when ERR LED is on LSIS XEC-DP64H Controller?
If the ERR LED is on for the LSIS Controller, there is a problem with the PLC hardware. Contact an A/S office or customer center for assistance.
Why is Positioning Output LED fast flashing on LSIS Controller?
If the Positioning Output LED is flashing quickly, it means the pulse is being normally output by the positioning function. Check the lines of the XGB and motor driver to ensure there are no issues.
What does it mean when PWR LED is on LSIS XEC-DP64H Controller?
If the PWR LED is on for the LSIS Controller, the power supply is normal. Check whether there is another cause for the issue you are experiencing.
What does Direction Output LED On (HIGH Active) mean on LSIS Controller?
If the Direction Output LED is on (HIGH Active) for the LSIS controller, it means that direction signals are being output in the reverse direction, or the positioning operation has finished normally. Start the next operation instruction. If there is an error that makes positioning operation impossible, check the positioning error code and remove the cause.
What does it mean when RUN LED is on LSIS XEC-DP64H Controller?
If the RUN LED is on for the LSIS Controller, it means the program is operating normally. Check whether there is another cause for any issues you might be experiencing.
General| Brand | LSIS |
|---|---|
| Model | XEC-DP64H |
| Category | Controller |
| Language | English |
Crucial safety guidelines to be followed before operating the product.
Provides general information about the positioning function, including purpose and features.
Provides general specifications for the XGB series, including environmental and immunity details.
Explains various positioning functions, parameters, and operation data.
Outlines the procedure for testing XGB positioning operation before use.

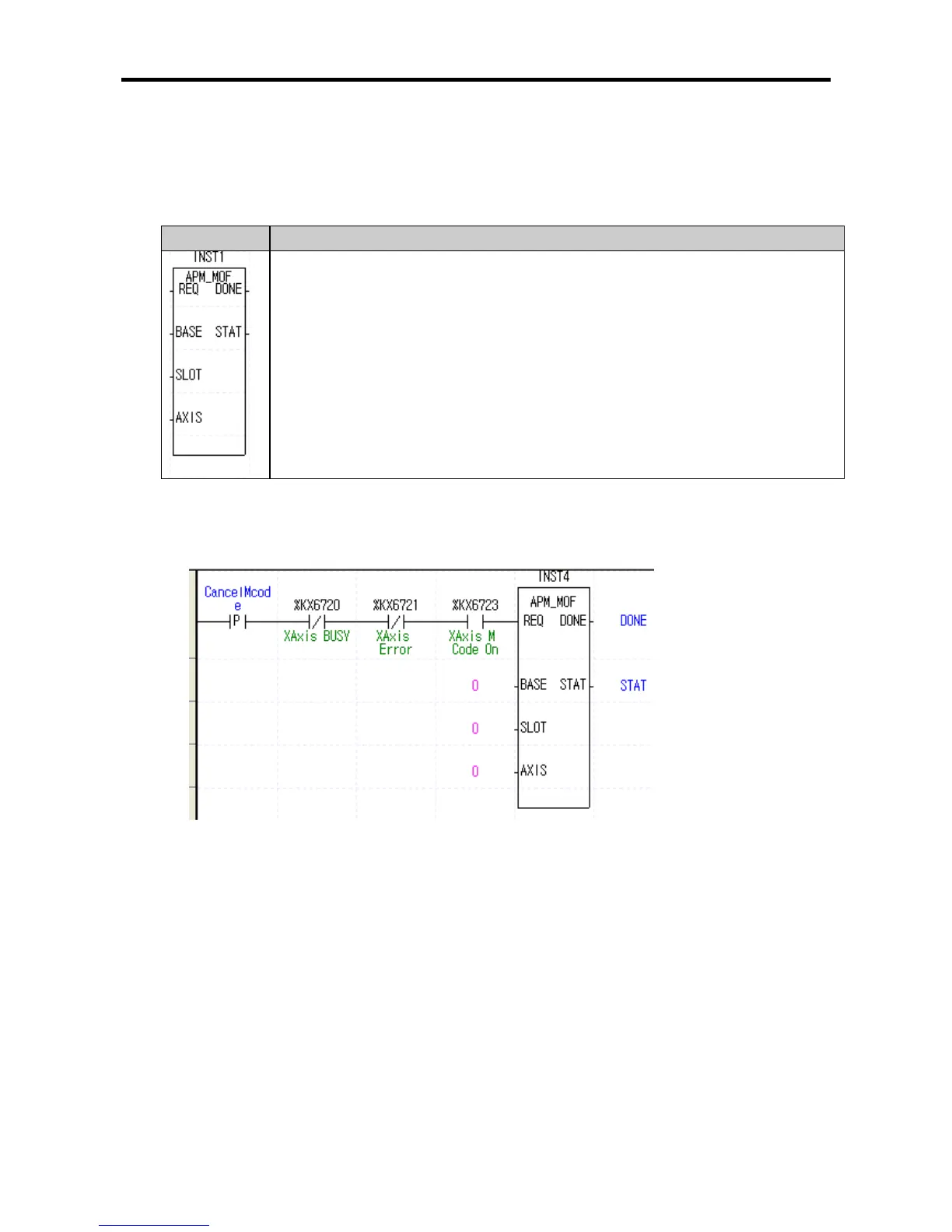

Provides detailed explanations for various positioning instructions like Origin Return, Direct Start, etc.
Introduces the XGB positioning monitoring package for status monitoring and test operation.
Provides practical program examples for various positioning functions.
Outlines basic steps for troubleshooting errors in XGB PLC and positioning functions.
Details specific error codes related to the XGB positioning function.
Provides a list of dedicated K areas for positioning parameters and instructions.
Illustrates wiring examples for connecting XGB PLC to servo motors.
Provides dimensional drawings for standard XGB main units (XBM-DN/DR series).
