Chapter 6 Positioning Monitoring Package
6-8
6.3 Parameter/Operation Data Setting Using Monitoring Package
You can change the positioning parameter and operation data of XGB PLC and do test operation by using the
XGB monitoring package.
6.3.1 Changing the Position Parameter
(1) How to Change the Parameter
• You can change the position parameter by using the position monitoring package. Note that the change
of the parameter is applied when the next operation is started after the currently operating step ends.

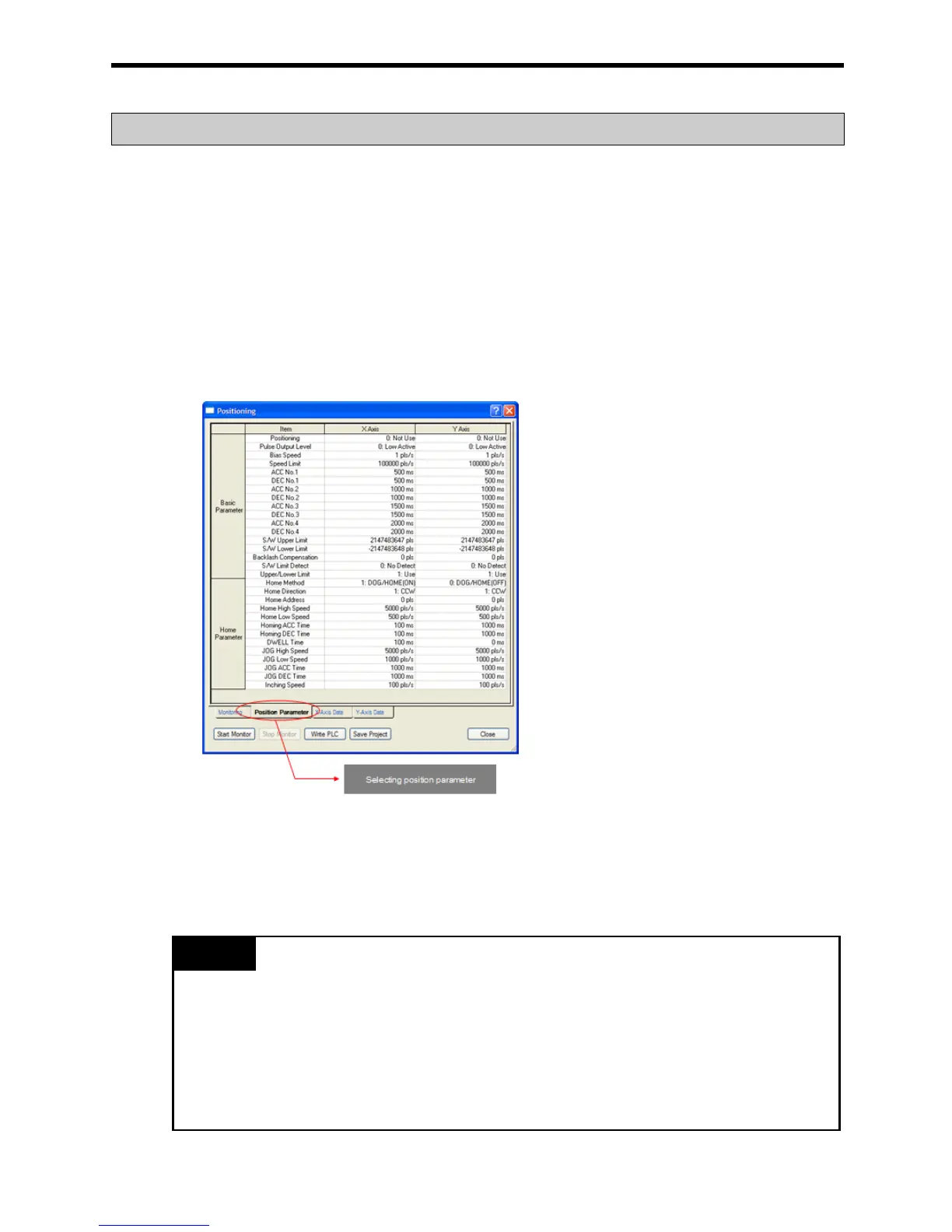

• If you select ‘Position Parameter’ tab in the positioning monitoring package, the window appears where
you can change the positioning basic parameter and the origin/manual parameter and the parameter
saved in XG5000 is displayed as well.
• To change the parameter, first of all, change the parameter value to change, and select ‘Write PLC’.
Then the changed parameter is transferred to PLC, the position parameter saved in PLC is changed,
and the parameter and operation data that have been changed are applied when the next operation
step is started.
Remark
• If you execute ‘Write PLC,’ the position parameter set in the positioning monitoring package and
the operation data of each axis are all transferred to XGB.
• The parameter and operation data displayed when the positioning monitoring package is executed
are not the data read from XGB but the parameter and operation data currently saved in XG5000.
Therefore if you change the parameter or operation data in the positioning monitoring package
and save them in the XGB PLC, be sure to press the ‘Save Project’ button to save them in the
XG5000 project. Otherwise the settings of XG5000 might be different from XGB.
To Next Page
