Chapter 7 Program Examples of Positioning
7 - 1
Chapter 7 Program Examples of Positioning
This chapter describes the program examples of the instructions of XGB positioning function.
7.1 System Composition and Setting of Input and Output
• This section describes the setting of the positioning system and the input and output signals for the
program example of XGB positioning. If there is no separate description, all the example programs
addressed in Chapter 7 were made according to the settings of the input and output signals described
in this chapter.

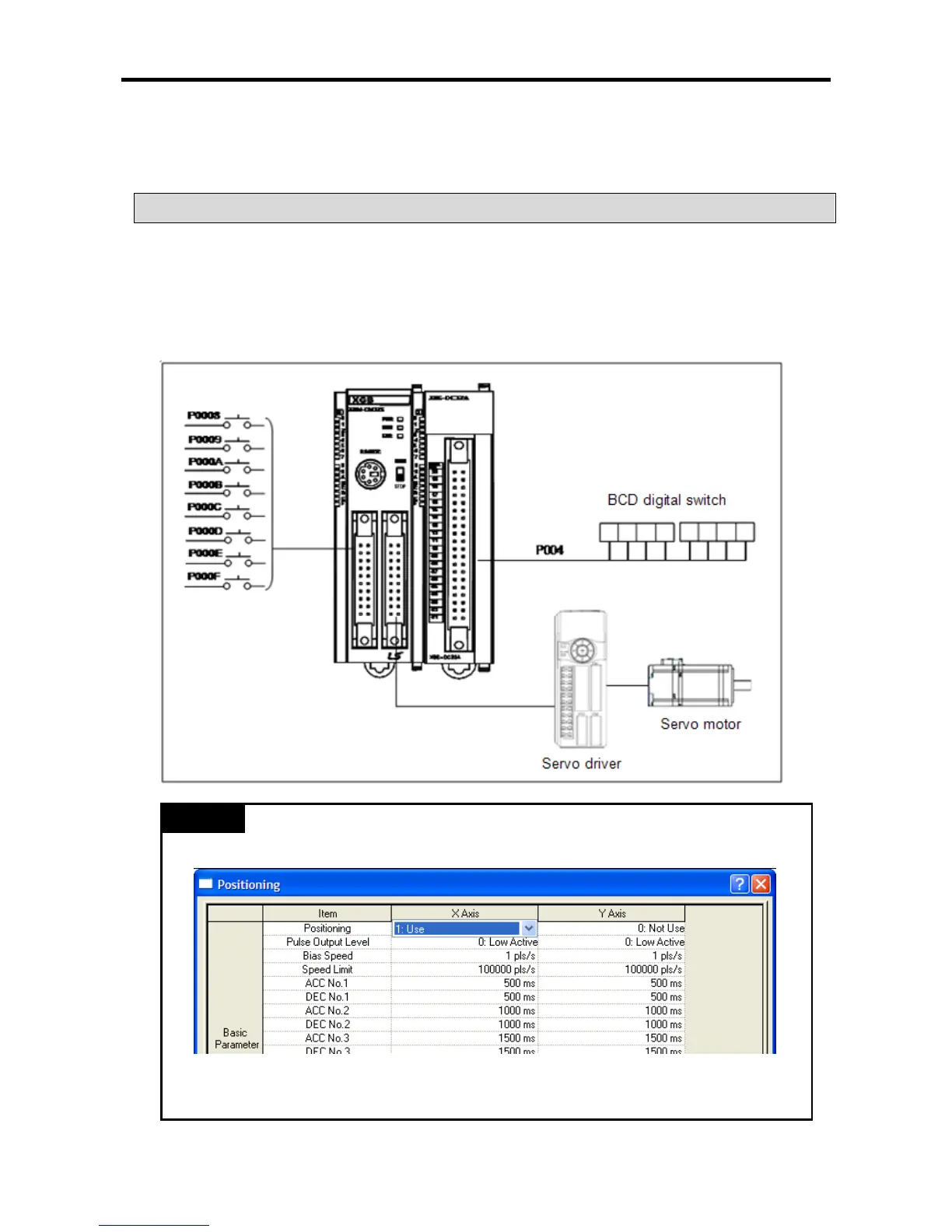

(1) XBM-DNxxS system configuration
Remark
• Be sure to set the basic parameter positioning as ‘1:Use’ when you use the positioning
function.
To Next Page
