1.4 I/O Signal Allocation
1.4.1 Allocation of I/O signal for standard type (S type)
In case of S type, external I/O signal for built-in function is allocated as follows.

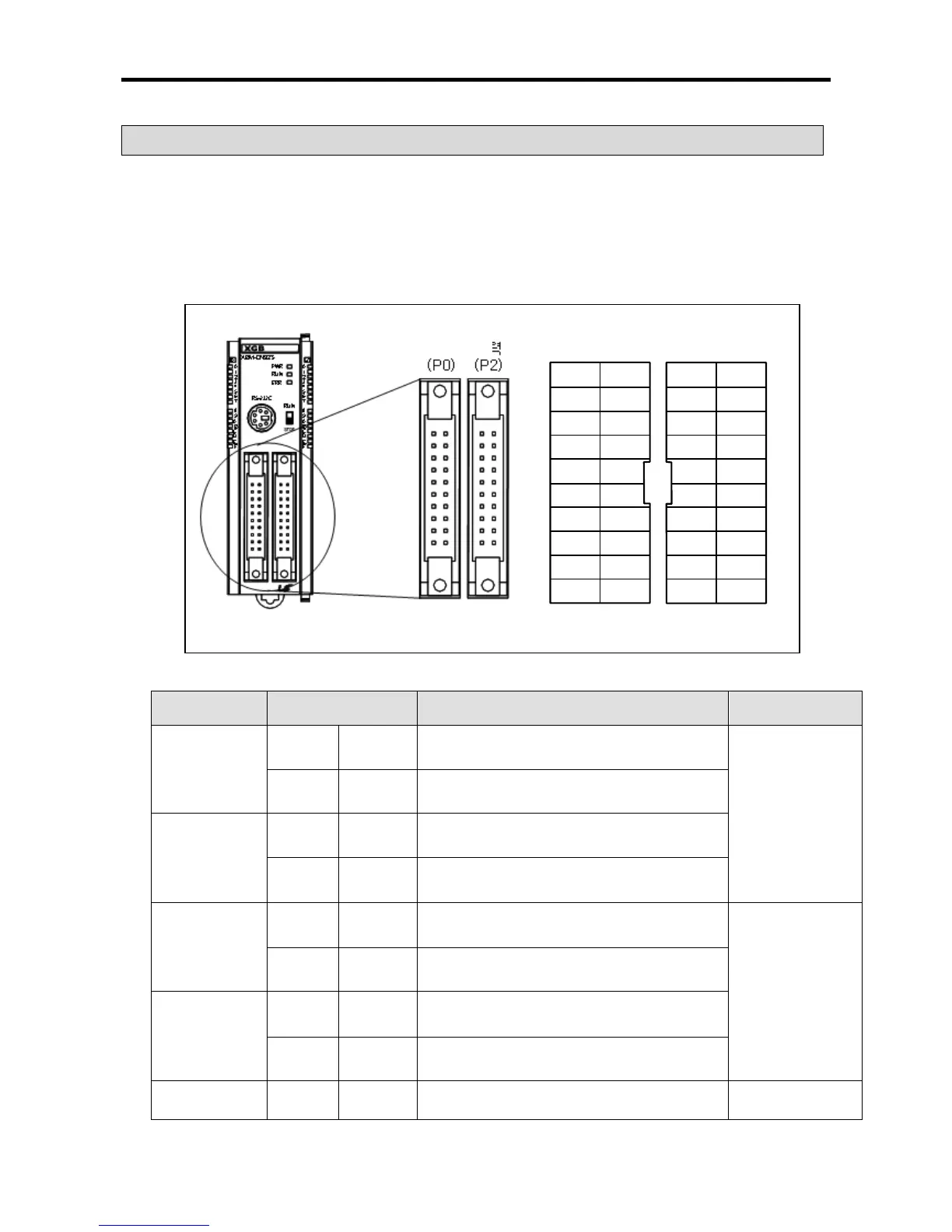

(1) Pin array of I/O connector
Pin array of I/O connector of XGB standard type transistor type basic unit is as follows.
COMCOM
COMCOM
P00FP007
P00EP006
P00DP005
P00CP004
P00BP003
P00AP002
P009P001
P008P000
COMCOM
COMCOM
P00FP007
P00EP006
P00DP005
P00CP004
P00BP003
P00AP002
P009P001
P008P000
COM
12/24V
COM
12/24V
P02FP027
P02EP026
P02DP025
P02CP024
P02BP023
P02AP022
P029P021
P028P020
COM
12/24V
COM
12/24V
P02FP027
P02EP026
P02DP025
P02CP024
P02BP023
P02AP022
P029P021
P028P020
(2) Allocation of external input signal
Signal name
Input contact point
no.
Detail -
External lower
limit signal
(LimitL)
X axis P0000
detected at the falling edge of input contact
point.
Normally closed
contact point
(B contact point)
Y axis P0002
detected at the falling edge of input contact
point.
External upper
limit signal
(LimitH)
X axis P0001
detected at the falling edge of input contact
point.
Y axis P0003
detected at the falling edge of input contact
point.
DOG signal
X axis P0004 When homing, detected at the rising edge
Normally open
contact point
(A contact point)
Y axis P0006 When homing, detected at the rising edge
ORIGIN signal
X axis P0005 When homing, detected at the rising edge
Y axis P0007 When homing, detected at the rising edge
Input common X/Y axis COM Input common
