Chapt
er 2 General Sp
ecification
2-
10
2.3.3

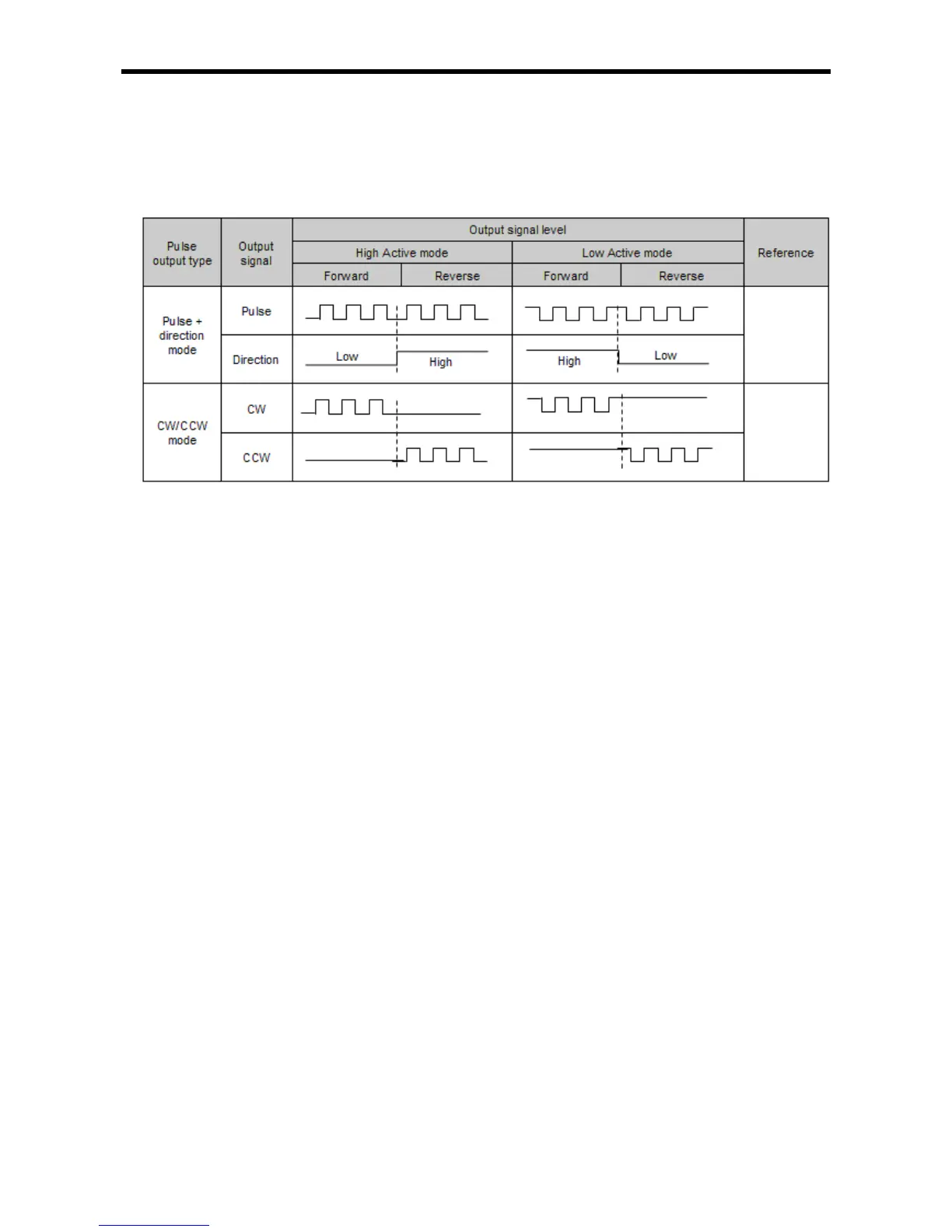

Output pulse level
Output pulse of XGB built
-
in positioning c
o
nsist
s of Pulse
+ Direction or
CW+CCW like
figure below.
At this time, output level o
f
Low Active and High Active
c
an be specified by positioni
ng parameter and K
area flag dedicated for positioning (X axis: K4871,
%KX7793,
Y axis: K5271, %KX8433
).
S
upported
at S, H type
Supported
a
t H type
36
38
