Chapter 1 General
1- 11

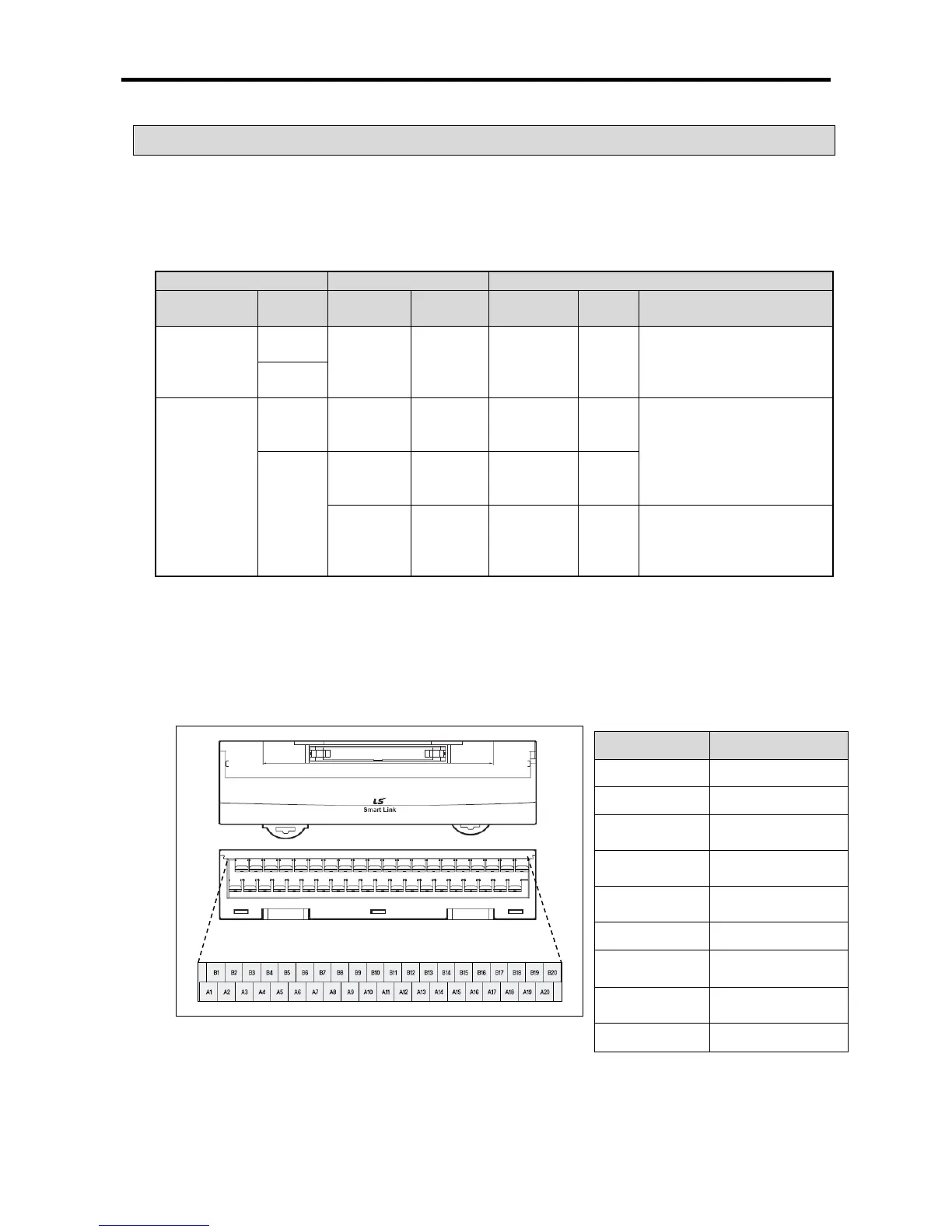

1.5 I/O wiring by using Smart Link Board
1.5.1
Smart link board
When using positioning function, easy wiring is available by connecting the I/O connector with smart
link board.
The available smart link and I/O cable are as follows.
XGB
Smart link
Connection cable
Classification Model Model
The no.
of pin
Model Length Content
Main unit
XBM-
DN32S
SLP-
T40P
40
SLT-
CT101-
XBM
1m
For main unit connection
(20Pin + 20Pin)
XBM-
DN16S
Extension
module
XBE-
DC32A
SLP-
T40P
40
SLT-
CT101-
XBE
1m
For extension module
connection
(40Pin)
XBE-
TN32A
SLP-
T40P
40
SLT-
CT101-
XBE
1m
SLP-
RY4A
40
SLP-
CT101-
XBE
1m
For extension module
connection (40Pin)
Exclusive for relay built-in
SLP type
It describes wring of XGB, SLP-T40P and SLT-CT101-XBM.
For wring of other smart link boards or XGB extension module, refer to XGB user manual for hardware.
(1) SLT-T40P terminal array
Terminal array of SLP-T40P is as follows.
Item Specification
Rated voltage AC/DC 125[V]
Rated current Max. 1[A]
Withstanding
voltage
600V 1min
Insulation
resistor
100 ㏁ (DC500V)
Cable
specification
1.25[㎟] or below
Terminal/screw M3 X 8L
Torque
6.2 ㎏ f.㎝ or
above
Terminal
material
PBT, UL94V-0
Weight 186g
