Chapter 1 General
1- 7

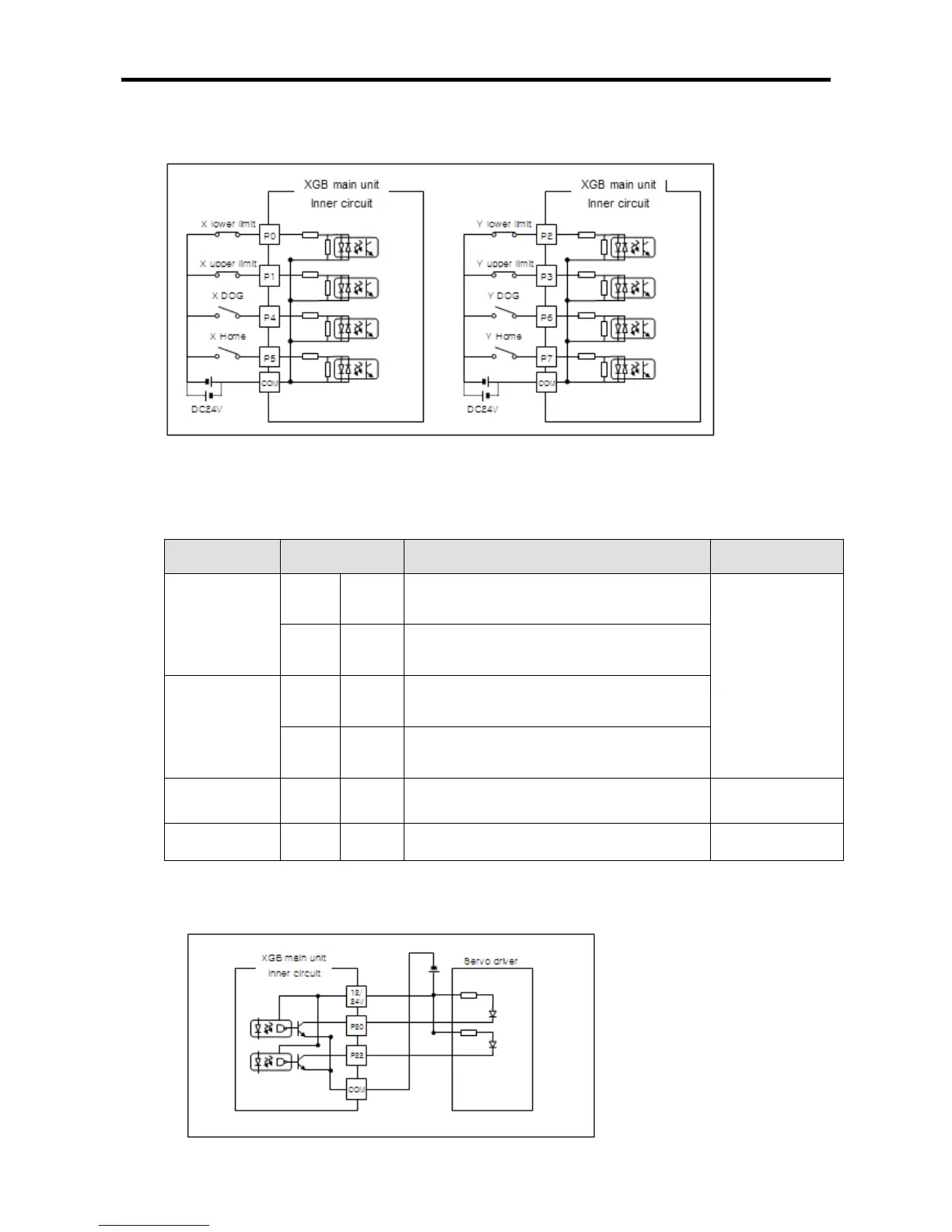

(3) Example of wiring the external input signal
Example of wiring the external input signal is as follows.
< Example of wiring the external input signal >
1.4.2
Allocation of standard type (S type) output signal
(1) Allocation of output signal
When using the positioning function, the output signal is allocated as shown below.
Signal name
Input contact
point no.
Detail -
Pulse output
X axis P0020
Positioning X axis pulse string output contact
point
(Open collector output)
Low Active and
High Active is
selectable in
parameter setting.
Y axis P0021
Positioning Y axis pulse string output contact
point
(Open collector output)
Direction output
X axis P0022
Positioning X axis direction output contact
point
(Open collector output)
Y axis P0023
Positioning Y axis direction output contact
point
(Open collector output)
External 24V
X/Y
axis
DC12
/24V
For external power (12/24V) supply
Output
common
X/Y
axis
COM Output common
(2) Example of wiring external input signal
Example of wiring external output signal is as follows.
