Chapter 5 Positioning Instructions
5 - 37
(2) Example of Use of the Instruction

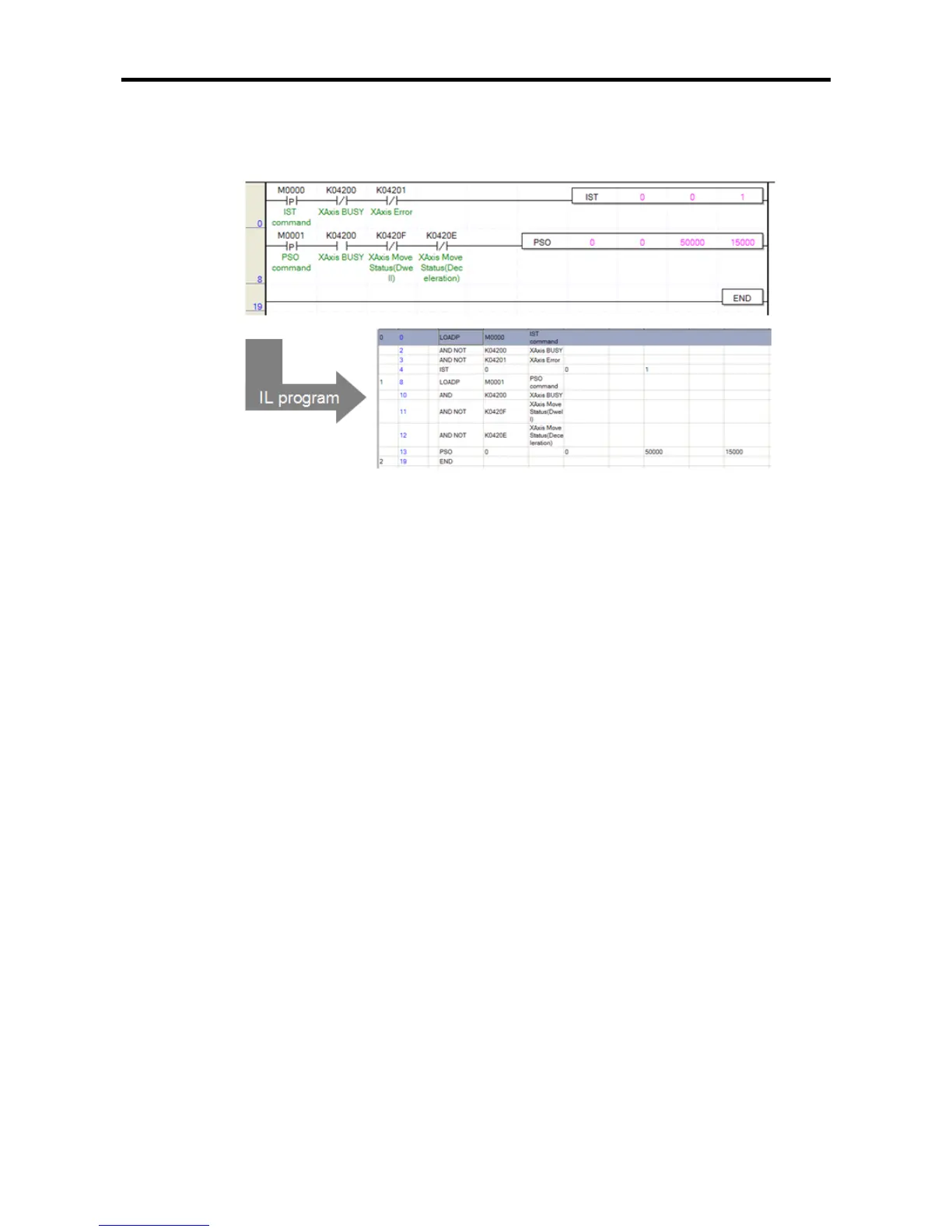

(a) Example of the Program
(b) Operation of the Program
• If there is the rising edge of M0000 used as the indirect starting instruction signal, positioning axis X
is indirectly started with operation step 1.
• If there is the rising edge of M0001 used as the instruction signal of the positioning speed override
instruction during operation, operation continues by changing the operation speed to 15,000[pps]
when the position of the currently operating step reaches 50,000.
To Next Page
